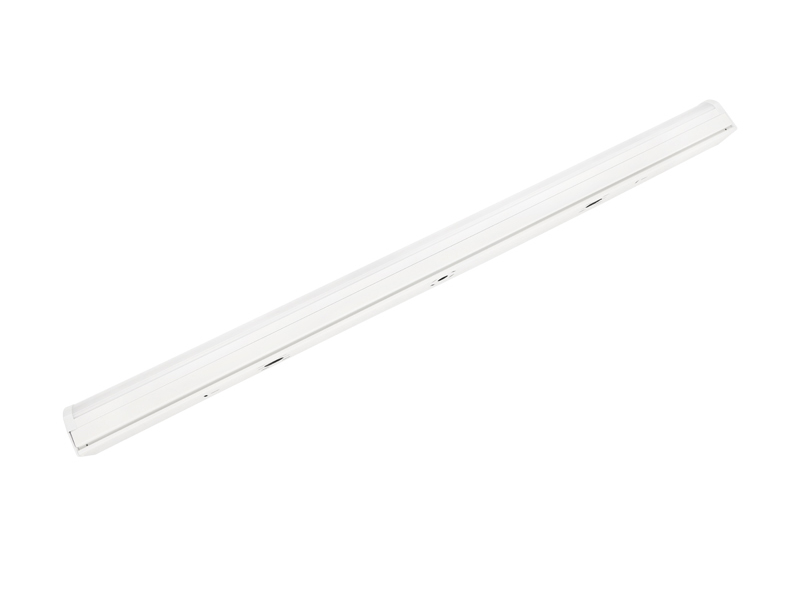

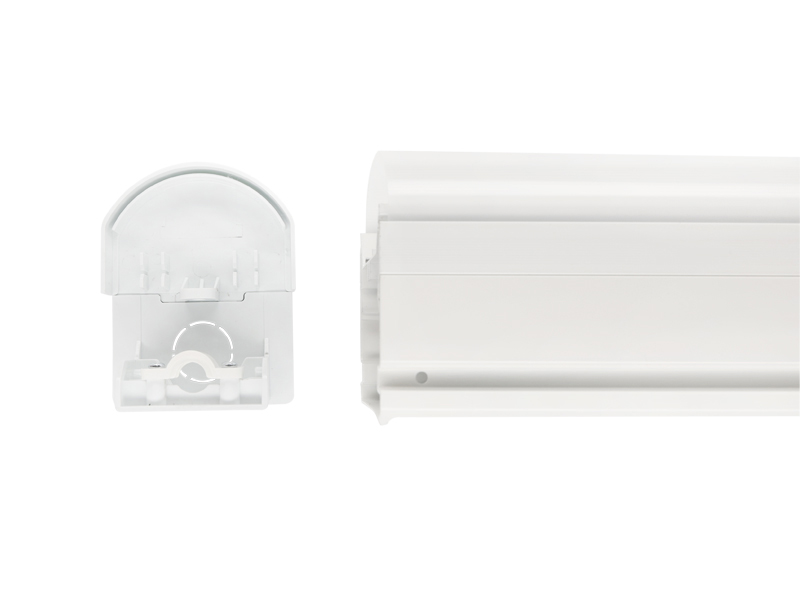

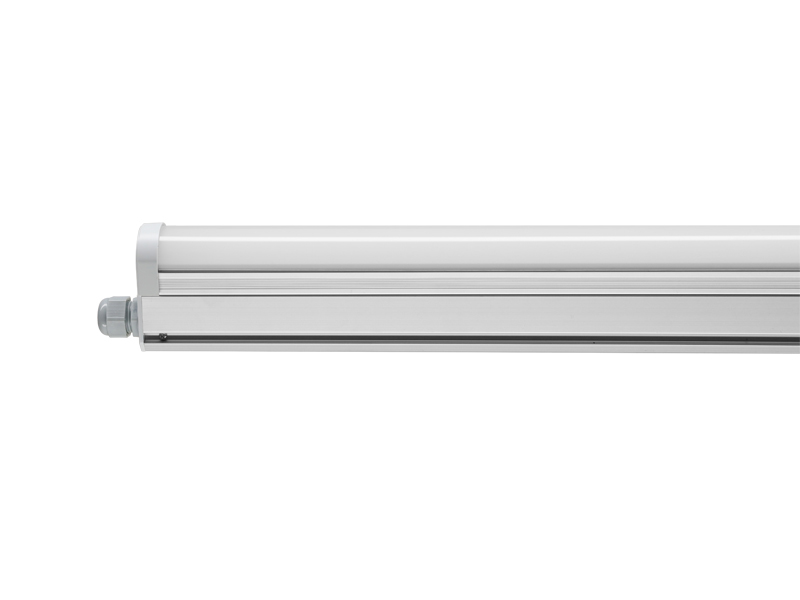

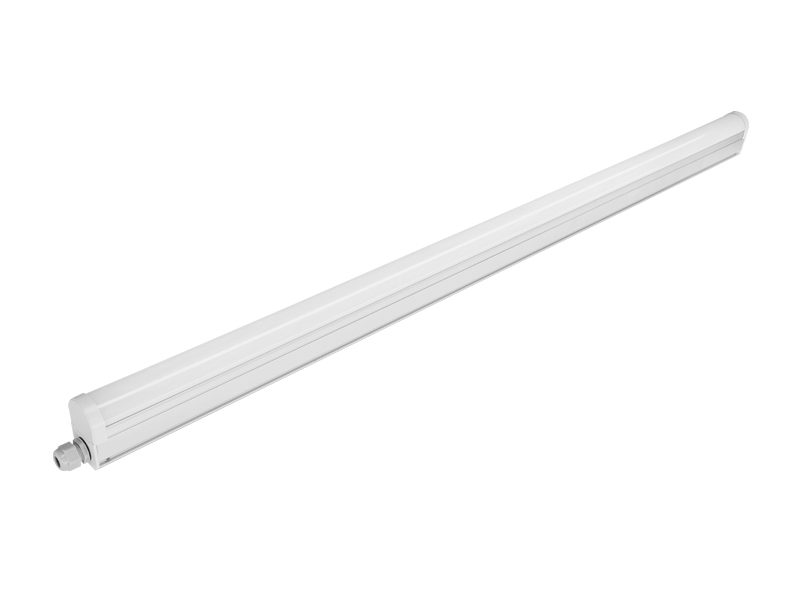

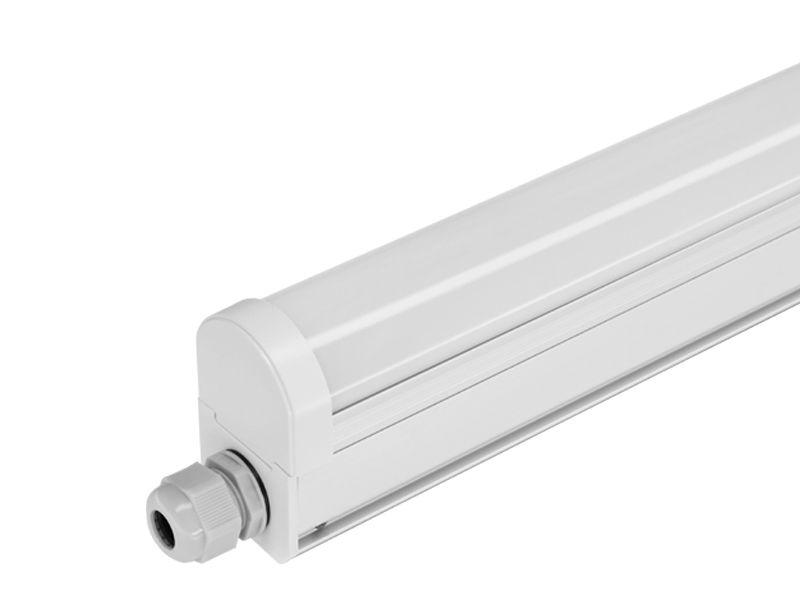

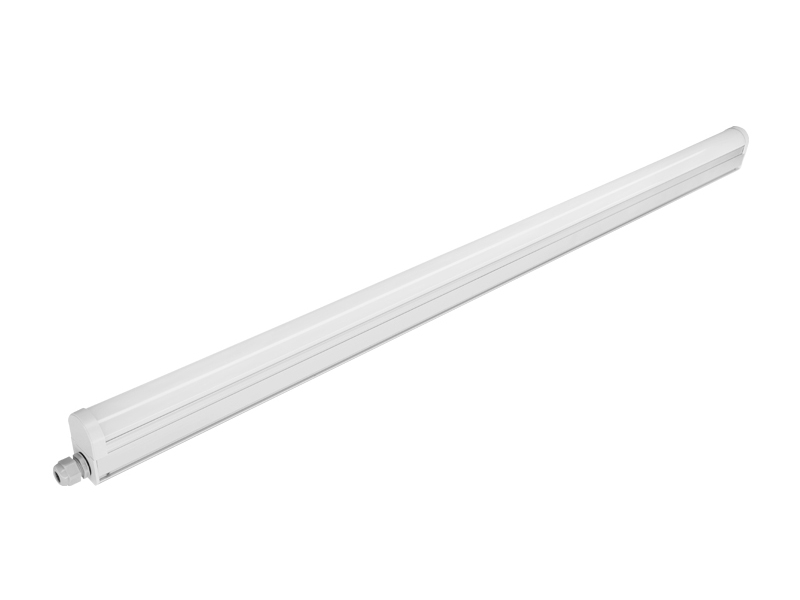

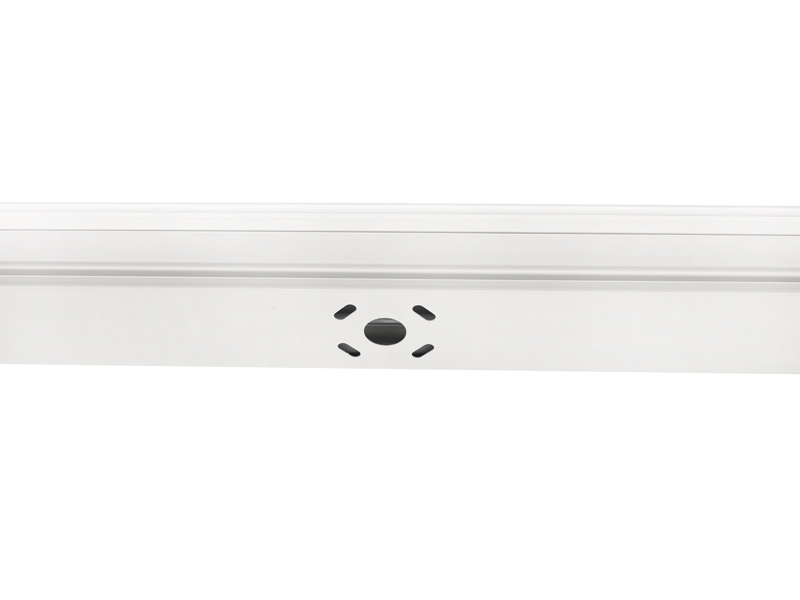

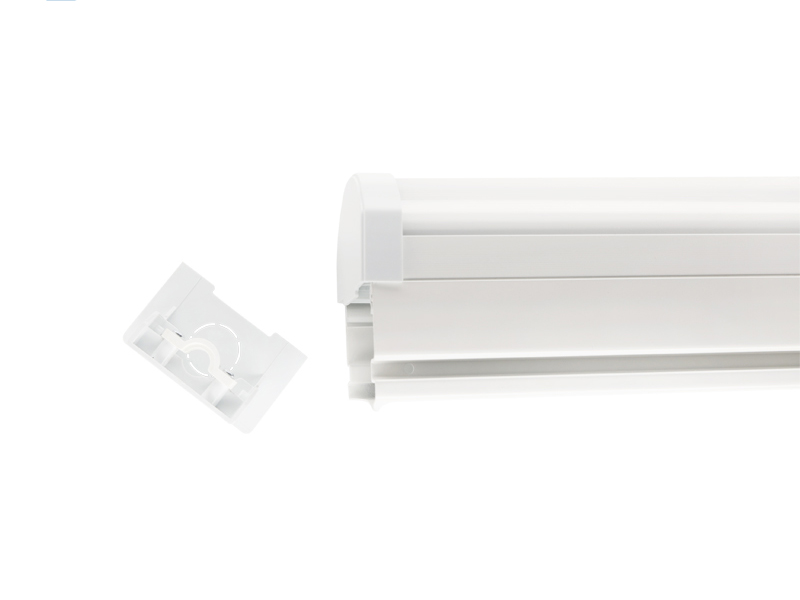

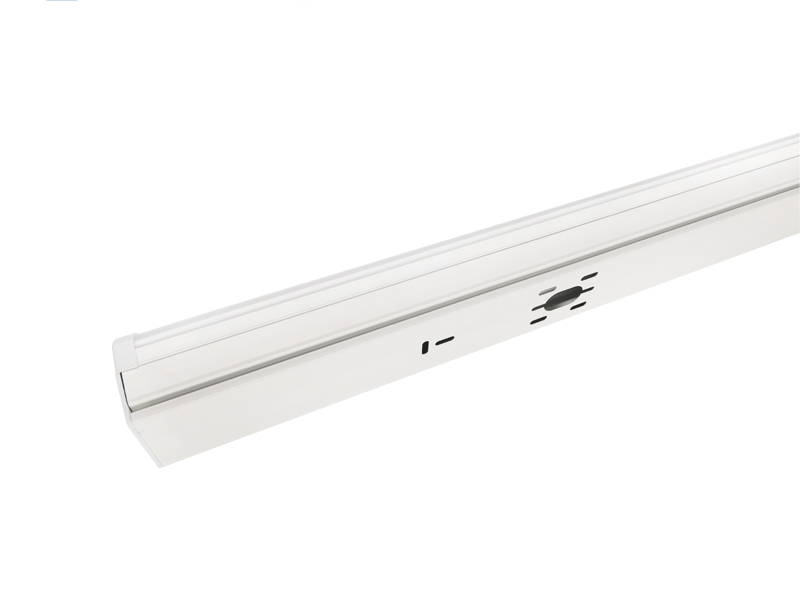

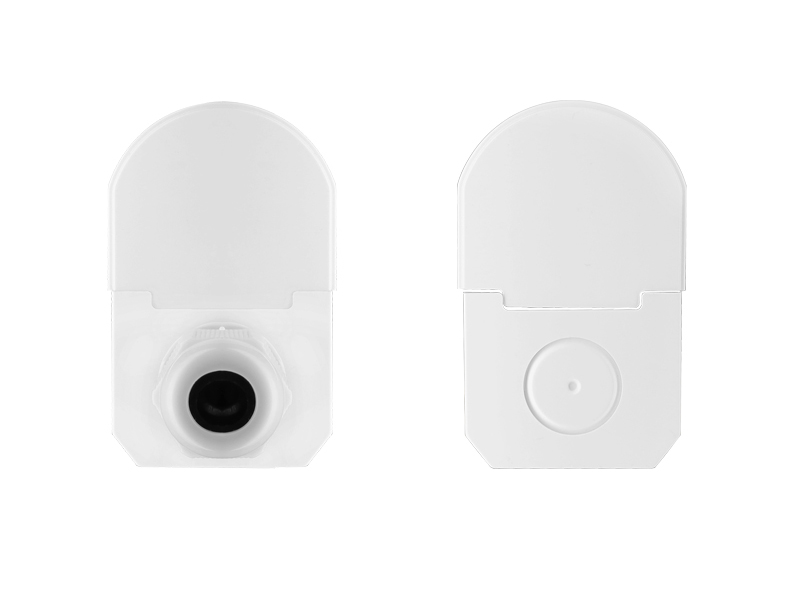

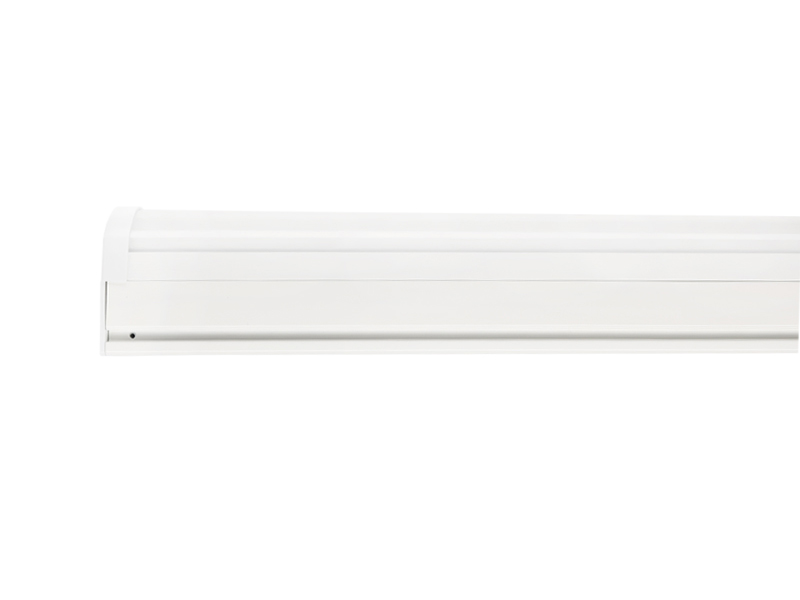

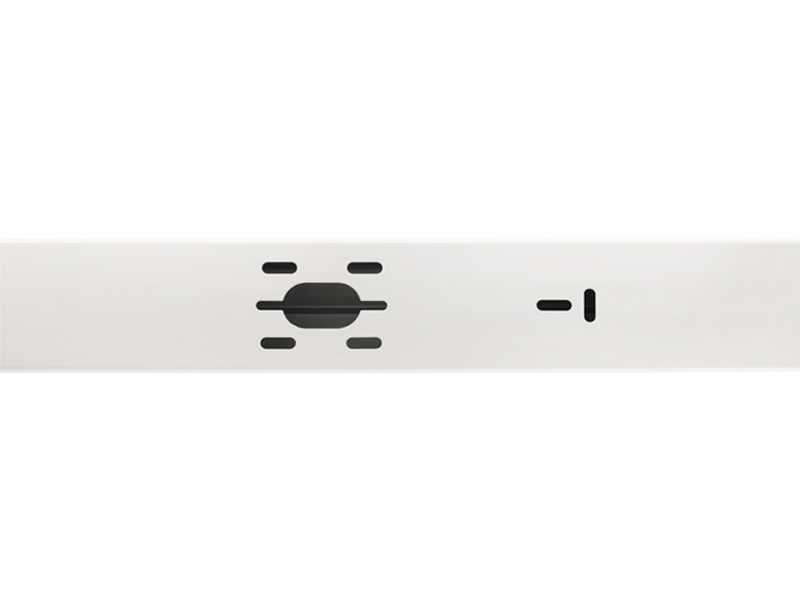

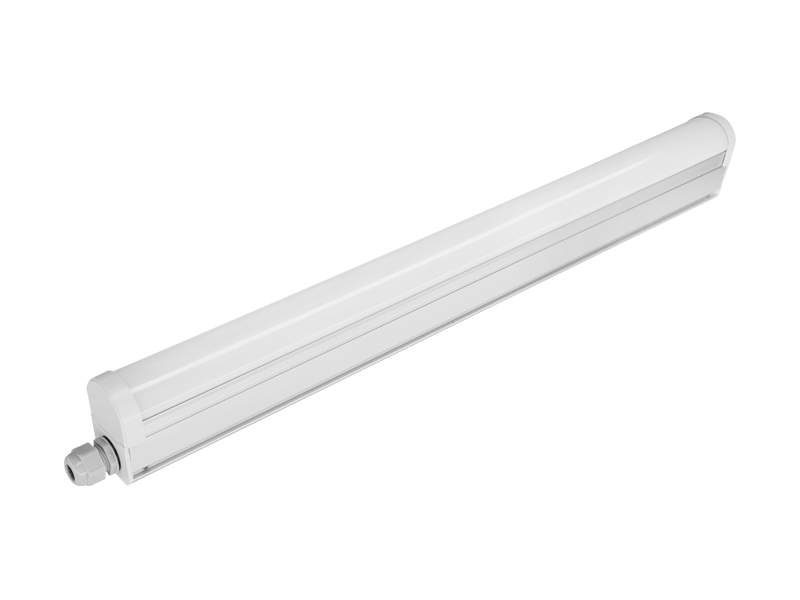

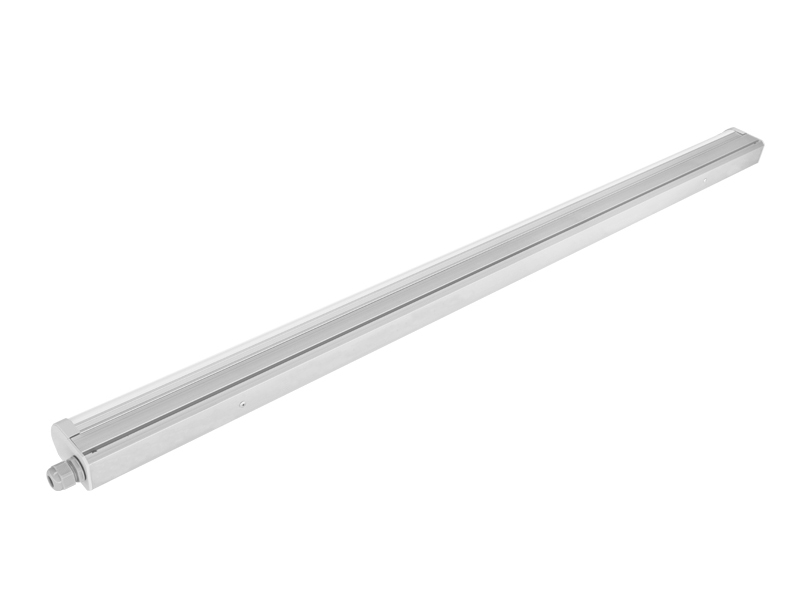

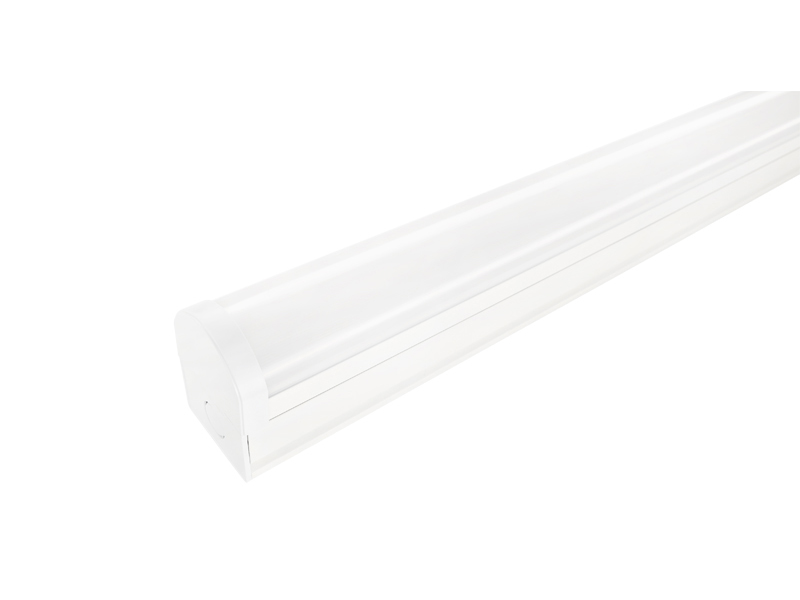

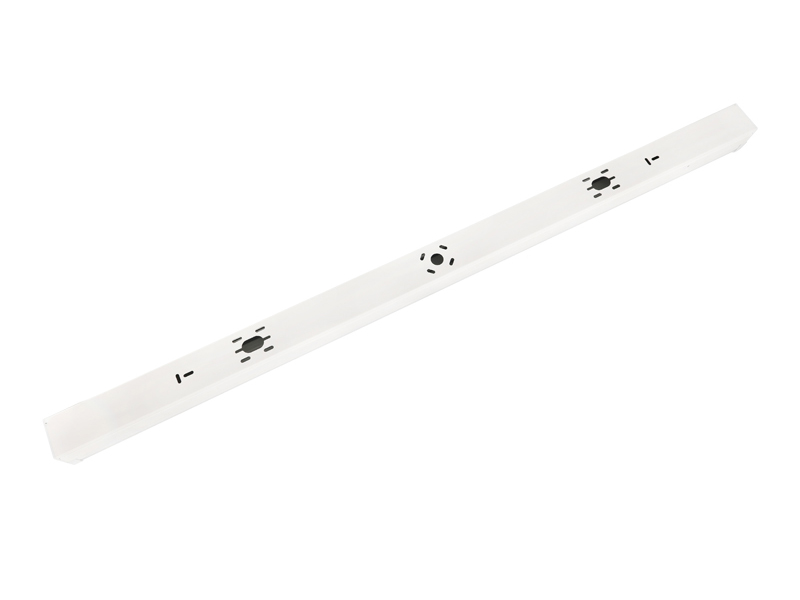

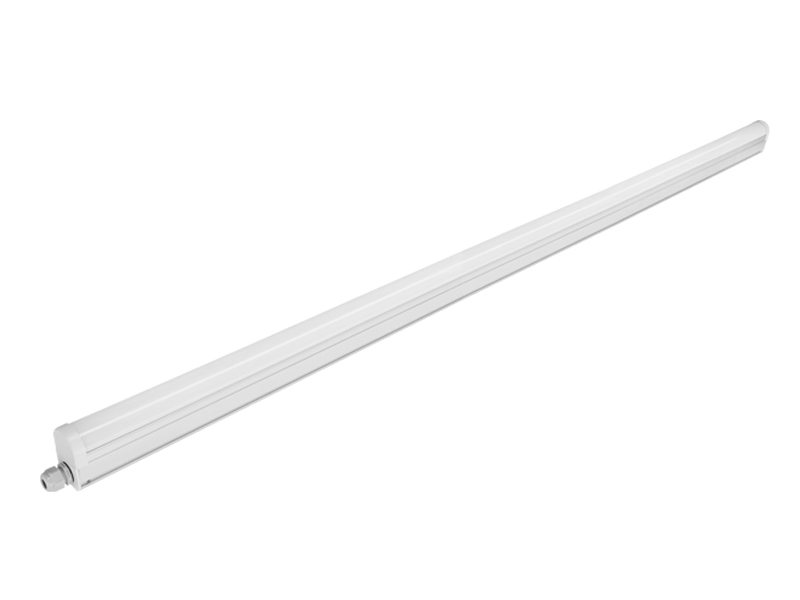

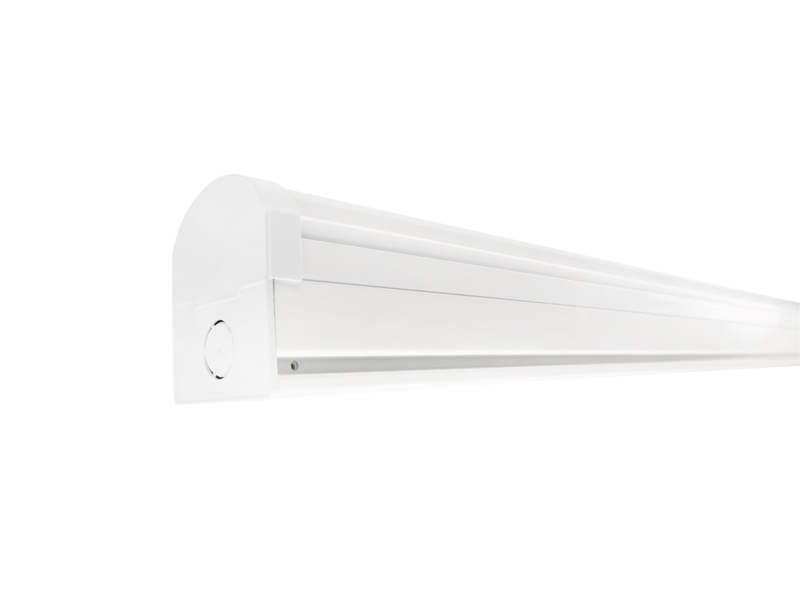

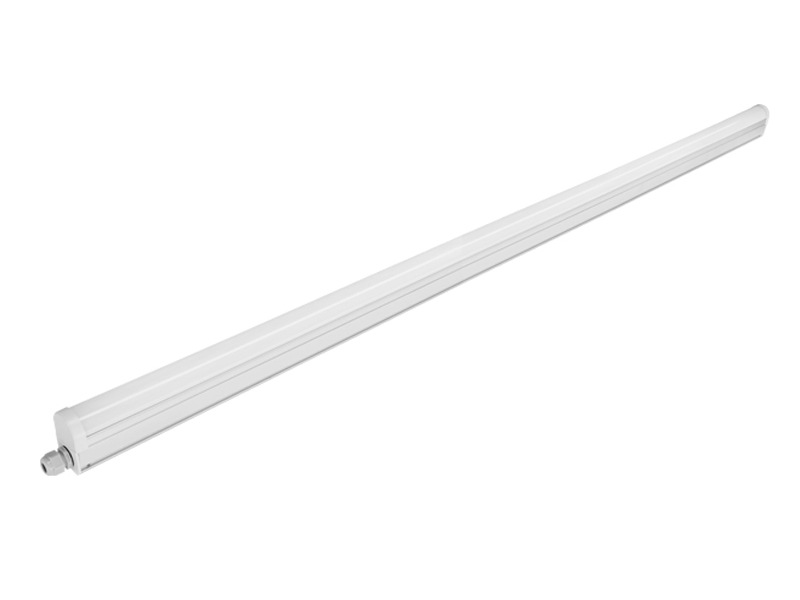

YL19 IP20 Aluminum LED Batten

Product description:

Input Voltage/ Frequency: AC220-240V 50/60Hz

Installation: Easy and quick to install under ceiling or on surface

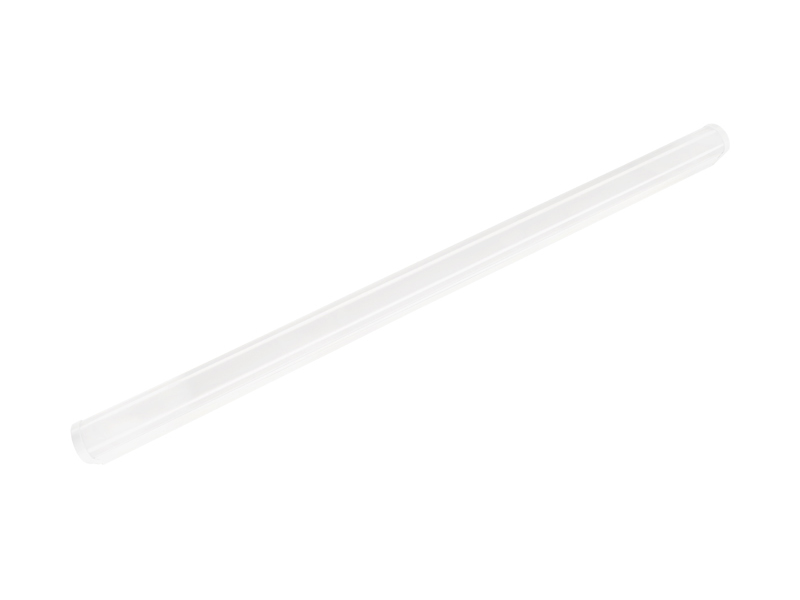

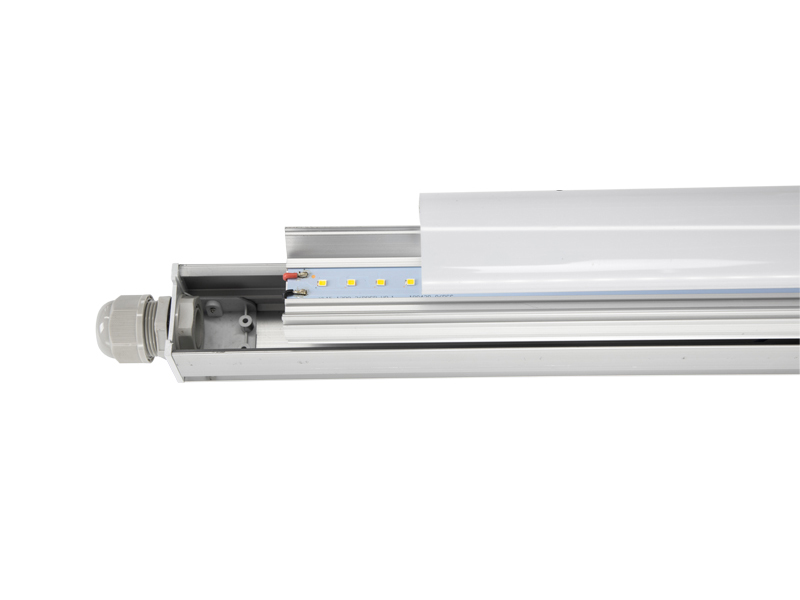

Housing/ Diffuser: High Quality Aluminum base, Polycarbonate opal diffuser

Driver: OSRAM

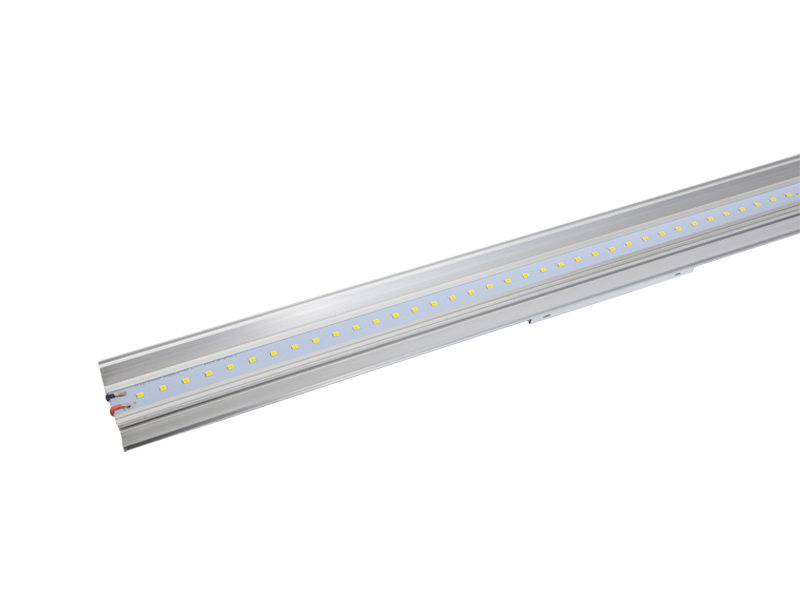

LED Brand: SMD2835

CRI:>80

Light Efficiency: 130lm/W~140lm/W

Power Factor: PF>0.95

Beam Angle: 120°

IP Rating: IP20

Warranty: 5 Years

Operating Temp Range: -20℃~35℃

Certificated: N/A

Contact

  • Model No. YL19-20-35W-1200 YL19-28-50W-1500
    Power (W)+/-10% 20W/25W/30W/35W 28W/35W/42W/50W
    CCT 4000K (ANSI C78.377) 4000K (ANSI C78.377)
    Efficiency 130lm/W~140lm/W 130lm/W~140lm/W
    Lumen Output 2800lm~4550lm 3920lm~6500lm
    Product Size 1200*44*75mm 1500*44*75mm
    Carton Size 1255*255*170mm 1555*255*170mm
    Q'ty/Ctn (pcs) 9 9
