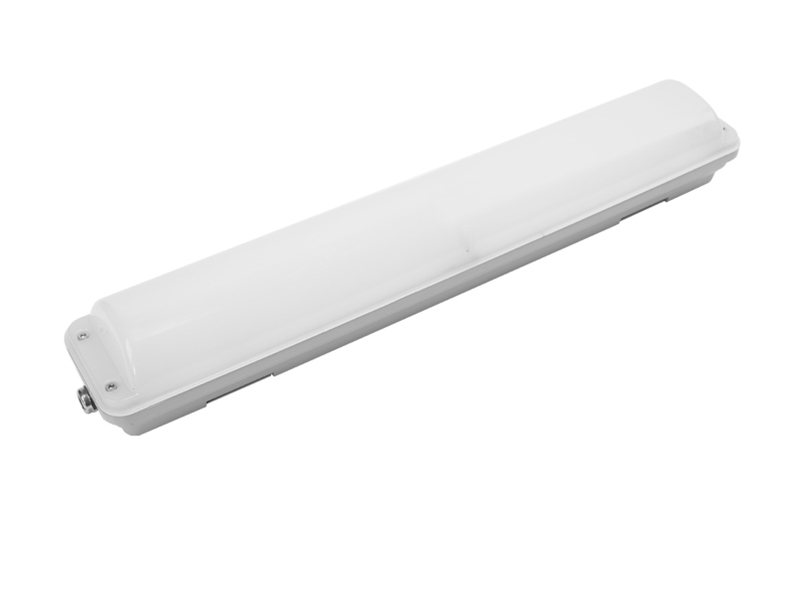

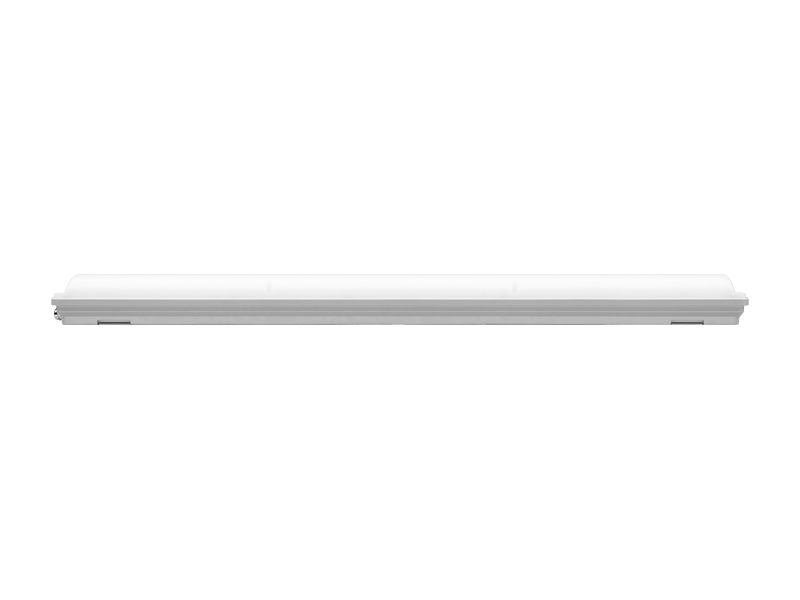

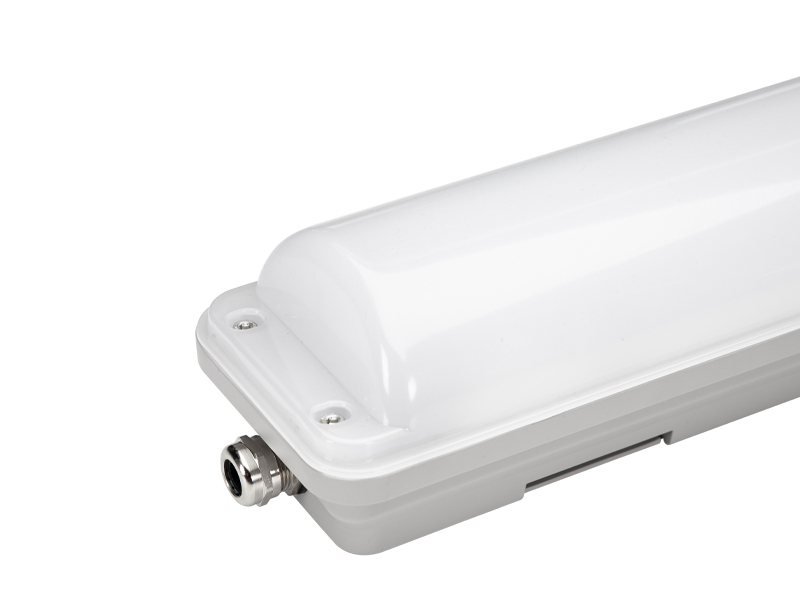

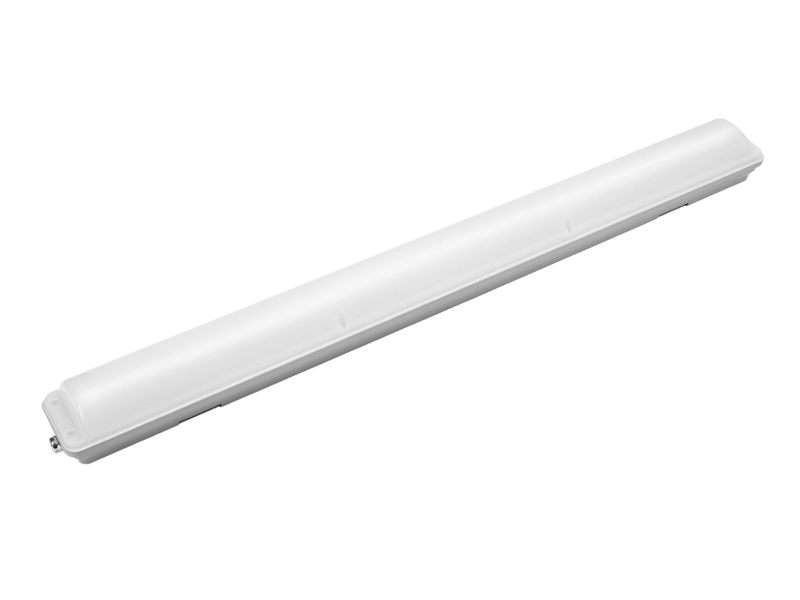

ALU_1160 IP66 LED Weatherproof Batten lights

【IP66 LED WEatherproof Batten lights】
●The LED batten range adopts a High Lumen output, reach 120lm/W.

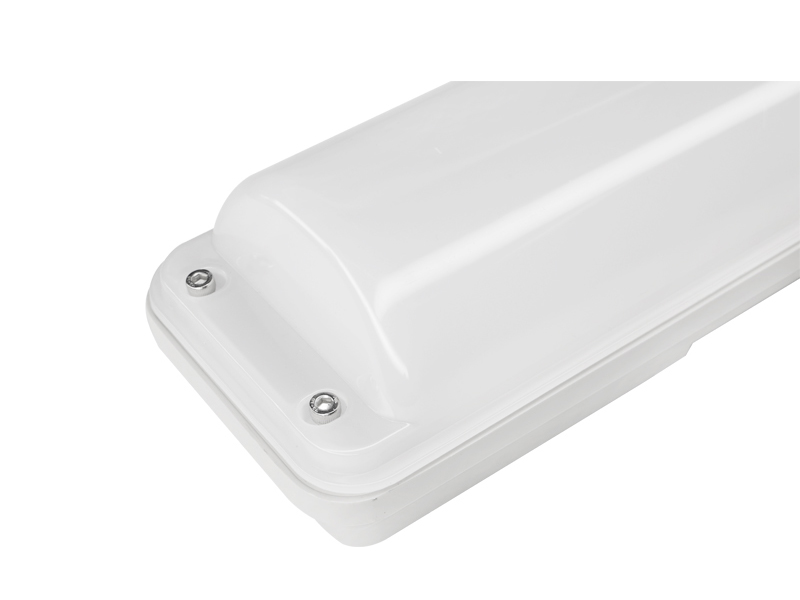

●PC frost diffuser for antiglare.

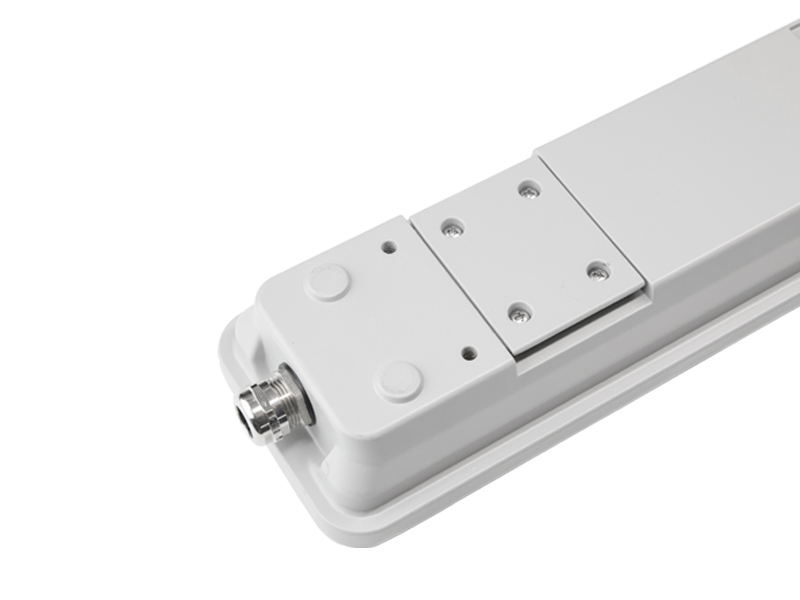

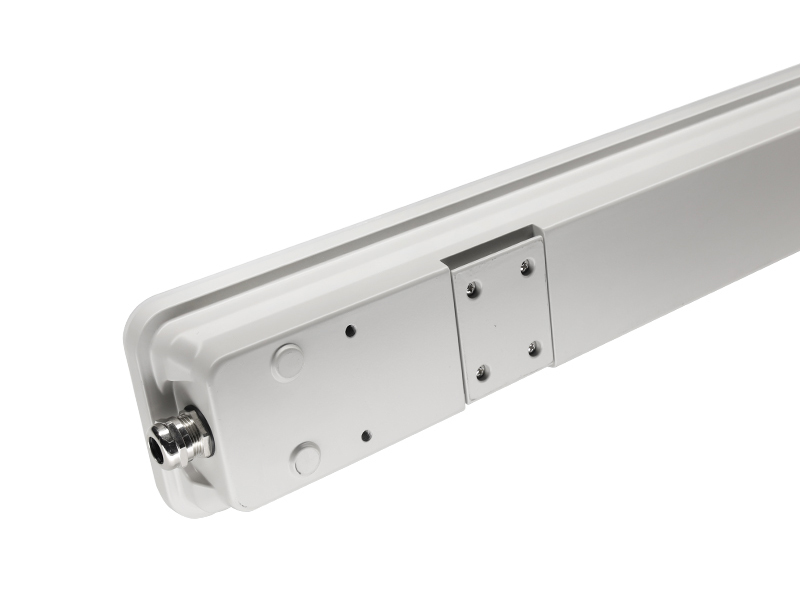

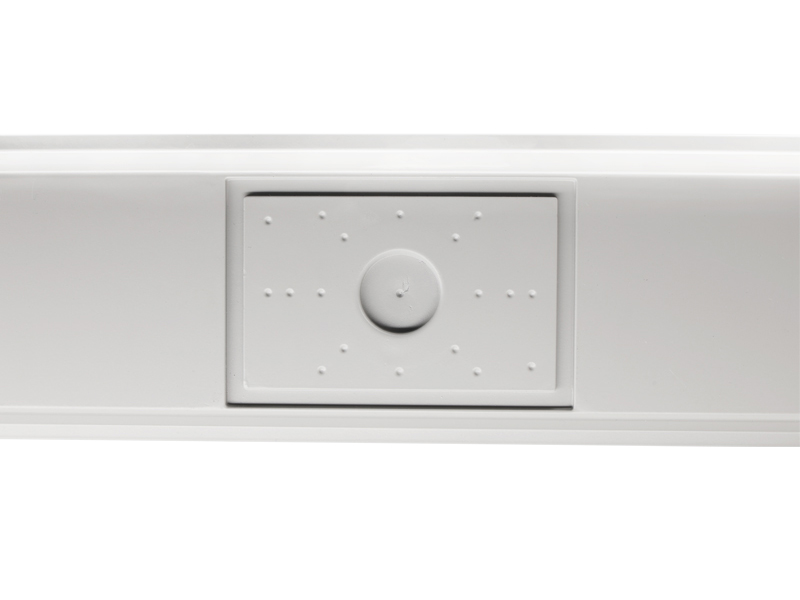

●Very simple installation with power feed from the rear or the side.

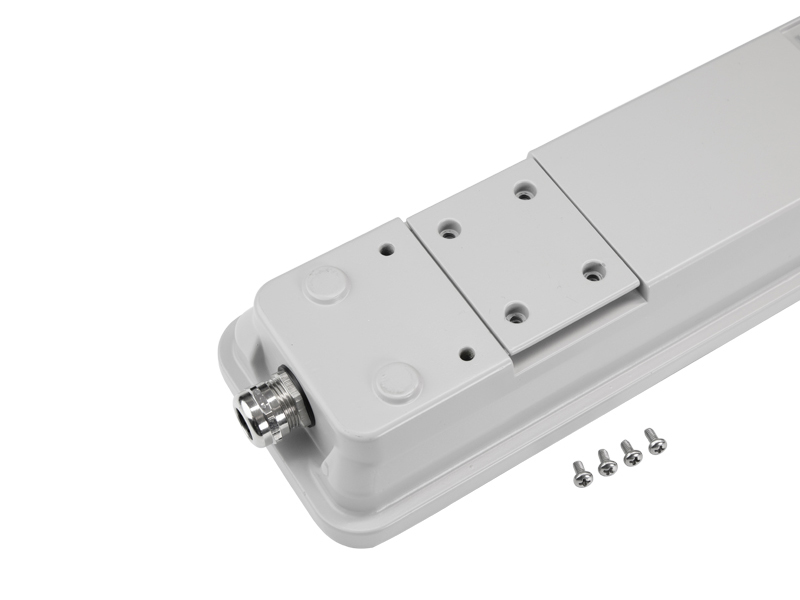

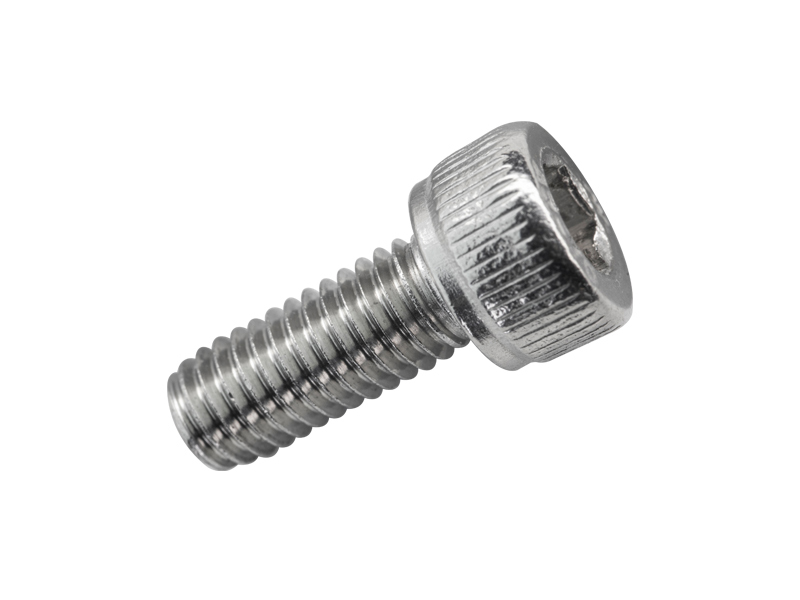

●Interior hexagonal screw without clips design.

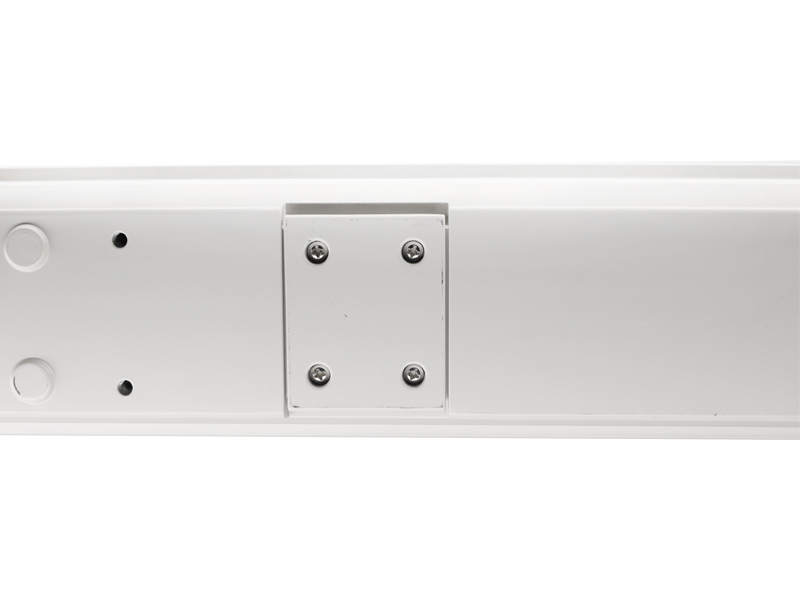

●Suspension mouting clips available.
●High quality Driver & capacitor ensuring excellent working performance.
●Aluminum die-cast lamp body
●Five year quantity
●Operating temperature -25 ℃ to 35℃
●CE, CB, ENEC, SAA approved.



Contact
  • Model No.

    ALU-25W-650

    ALU-35W-650

    ALU-35W-1160

    ALU-50W-1160

    ALU-65W-1160

    System Power(W).

    25W

    35W

    35W

    50W

    65W

    Input Voltage(V)

    220-240V50/60HZ

    220-240V50/60HZ

    220-240V50/60HZ

    220-240V50/60HZ

    220-240V50/60HZ

    Lumen (120lm/W)

    3000lm

    4200lm

    4200lm

    6000lm

    7800lm

    CCT(K)

    2700K-6500K

    2700K-6500K

    2700K-6500K

    2700K-6500K

    2700K-6500K

    CRI

    >80

    >80

    >80

    >80

    >80

    Beam Angel(°)

    120°

    120°

    120°

    120°

    120°

    IP Rate

    IP65

    IP65

    IP65

    IP65

    IP65

    Lifetime

    50,000hrs

    50,000hrs

    50,000hrs

    50,000hrs

    50,000hrs

    Operating temp range.

    -25°C+35°C

    -25°C+35°C

    -25°C+35°C

    -25°C+35°C

    -25°C+35°C

    Operating Humidity(℃)

    10%-90%

    10%-90%

    10%-90%

    10%-90%

    10%-90%

    Product Size

    660x110x95mm

    660x110x95mm

    1170x110x95mm

    1170x110x95mm

    1170x110x95mm

    Carton Size

    680x120x105mm

    680x120x105mm

    1190x120x105mm

    1190x120x105mm

    1190x120x105mm

    Qty

    4

    4

    4

    4

    4
