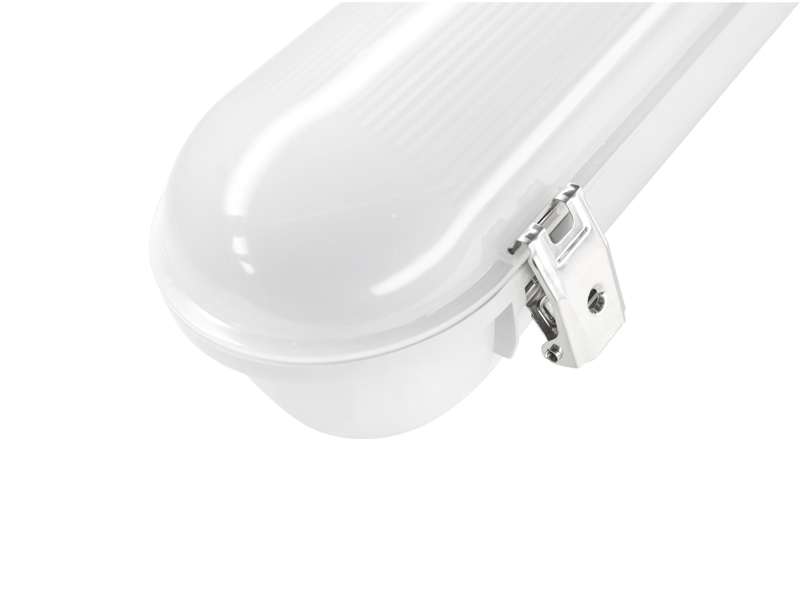

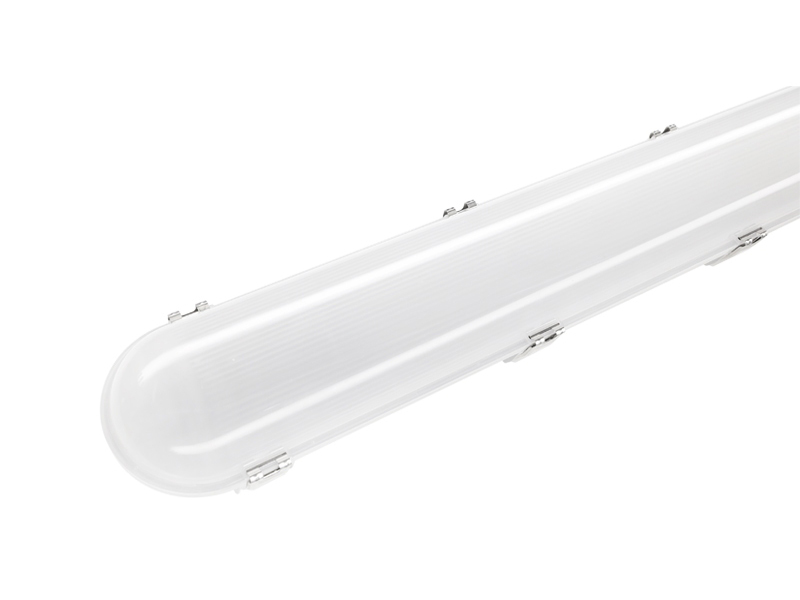

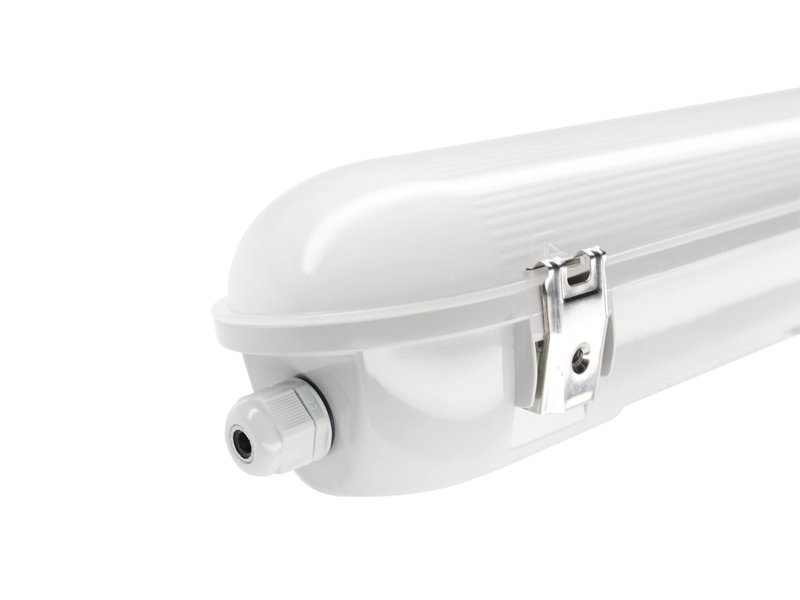

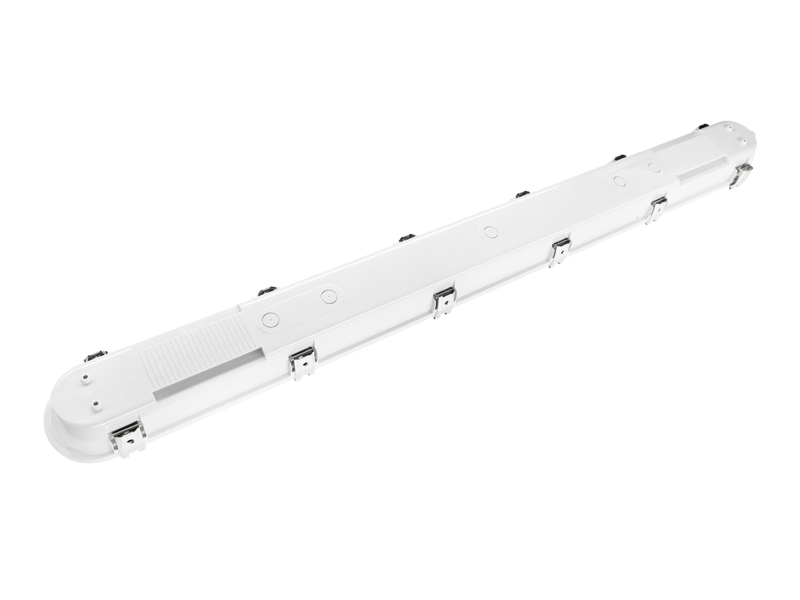

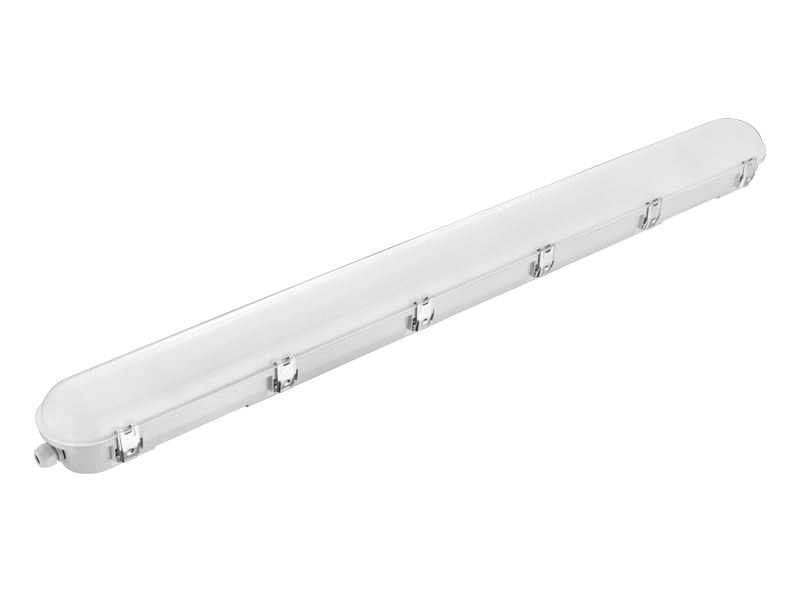

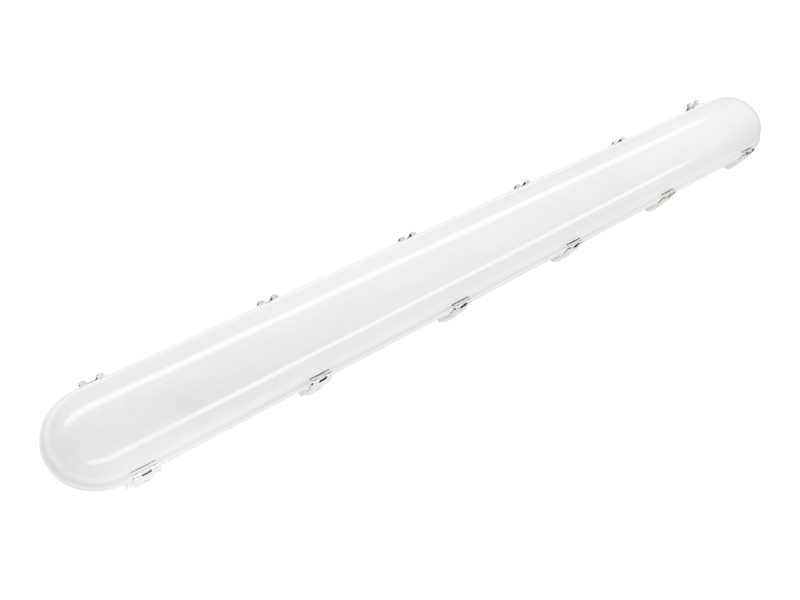

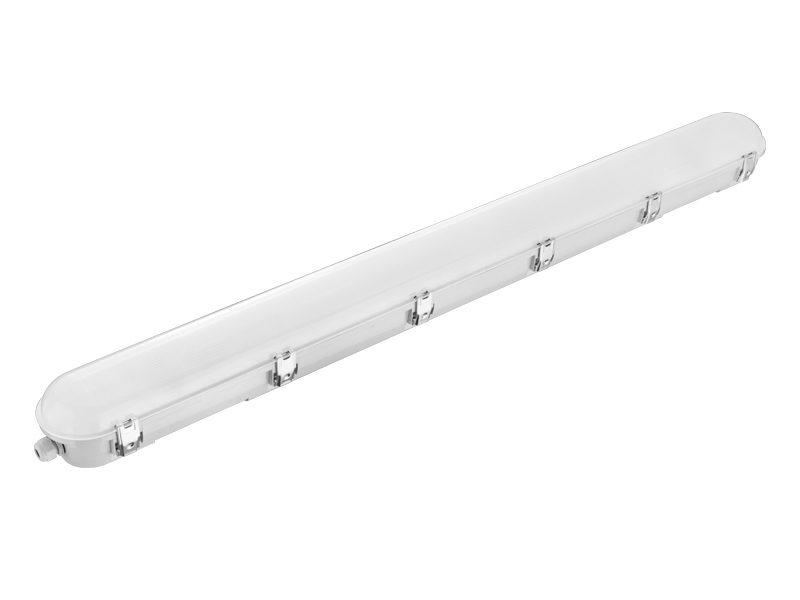

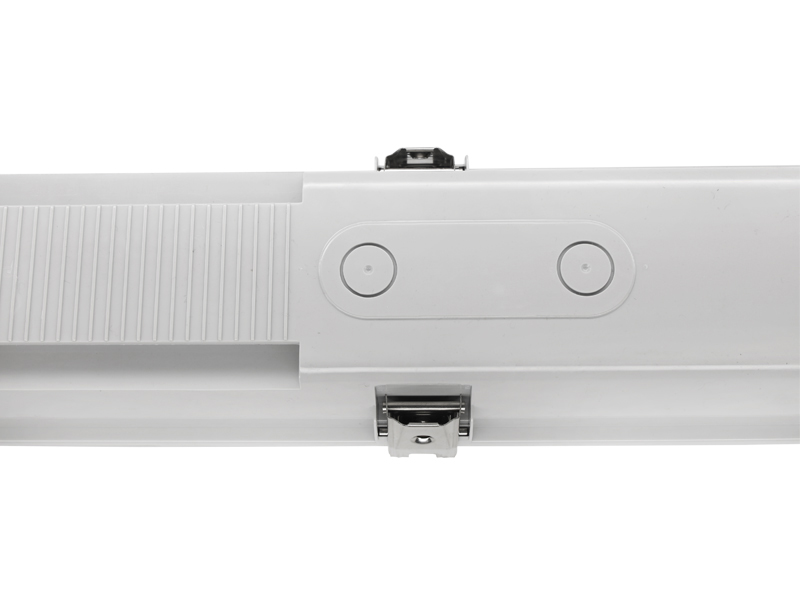

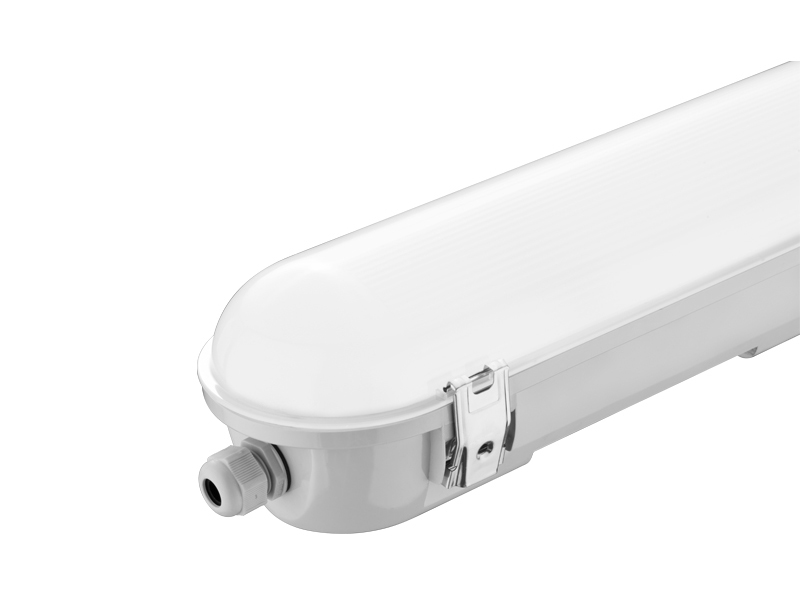

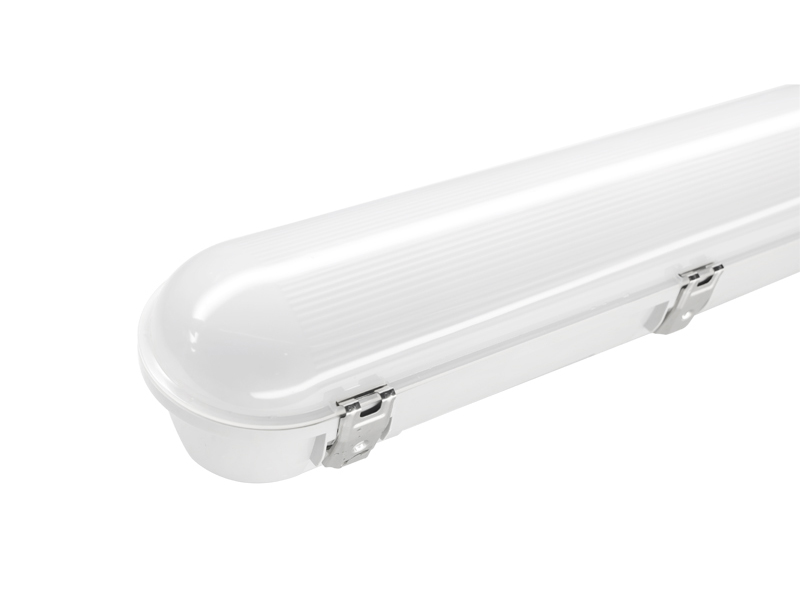

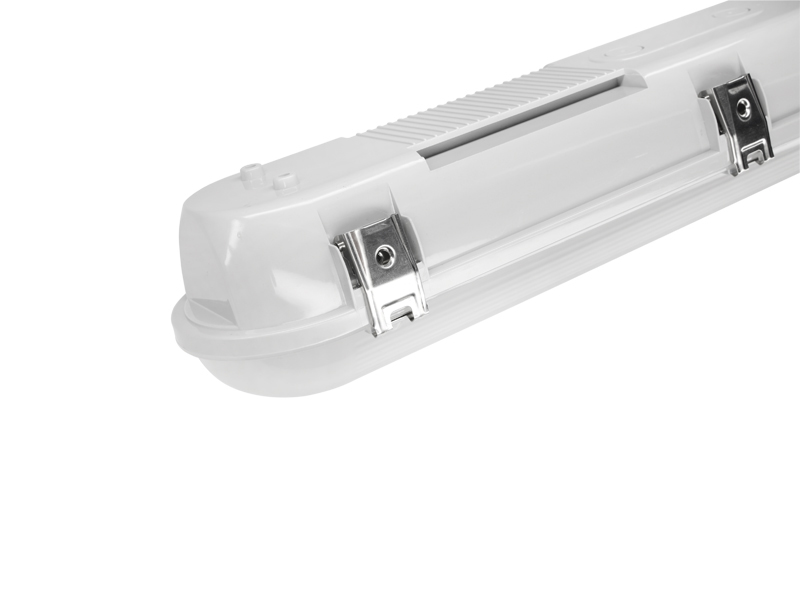

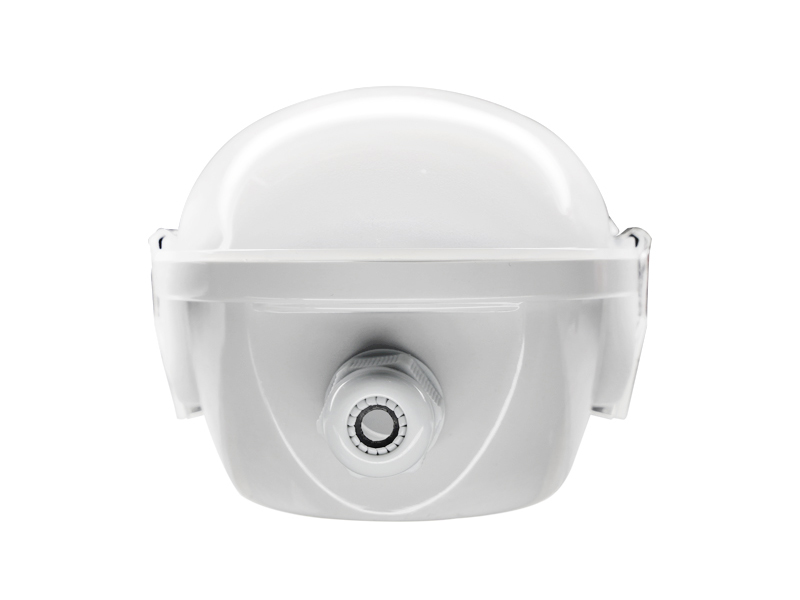

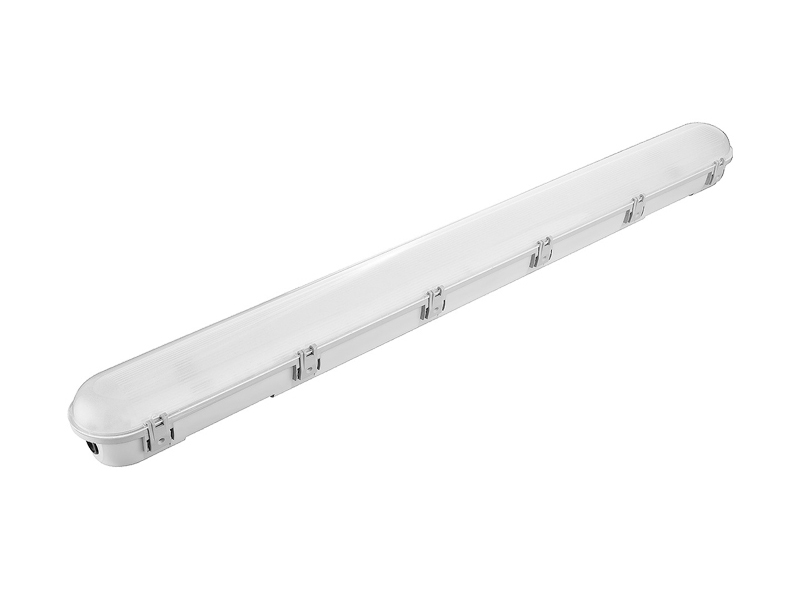

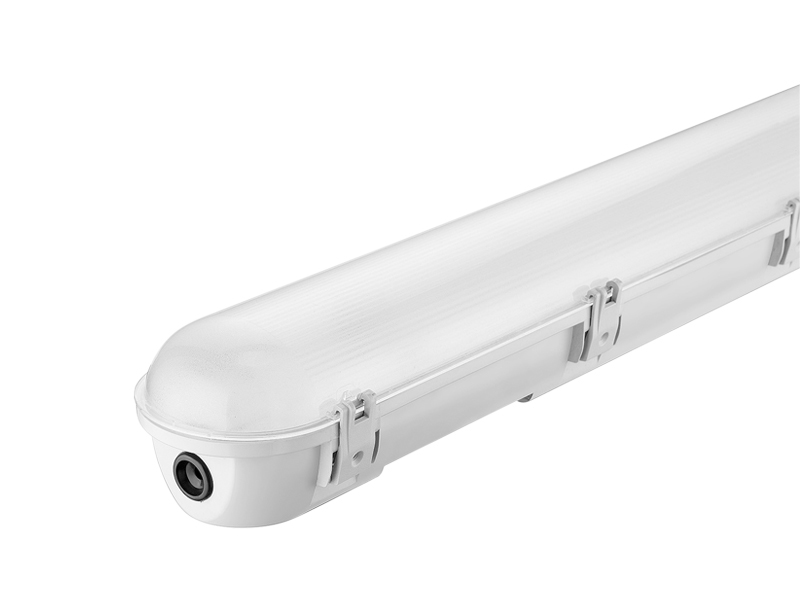

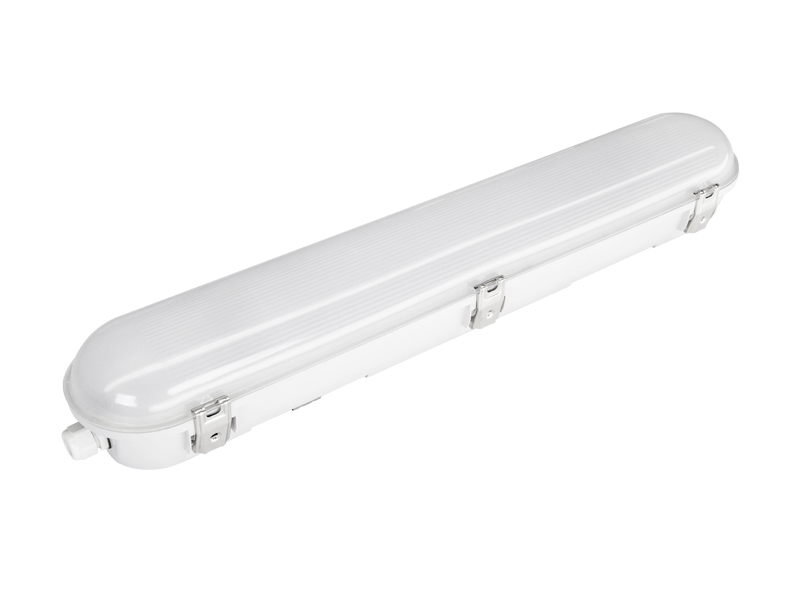

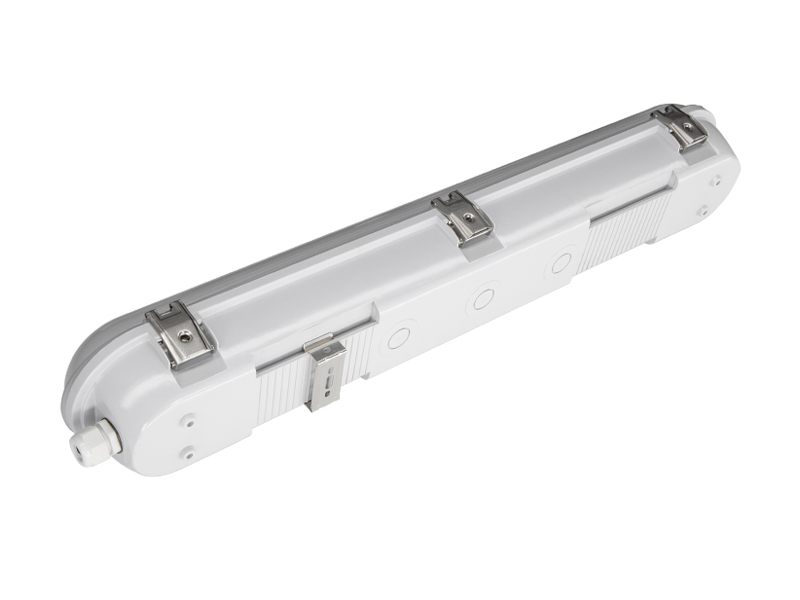

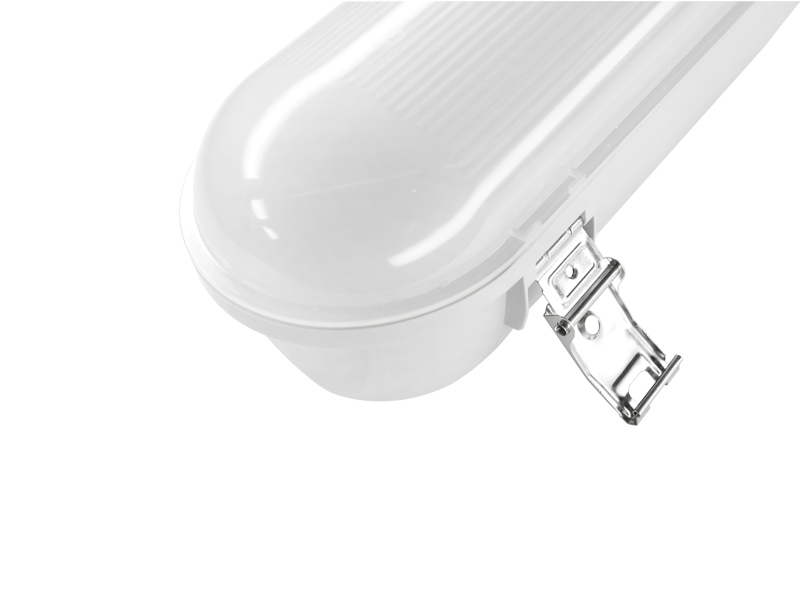

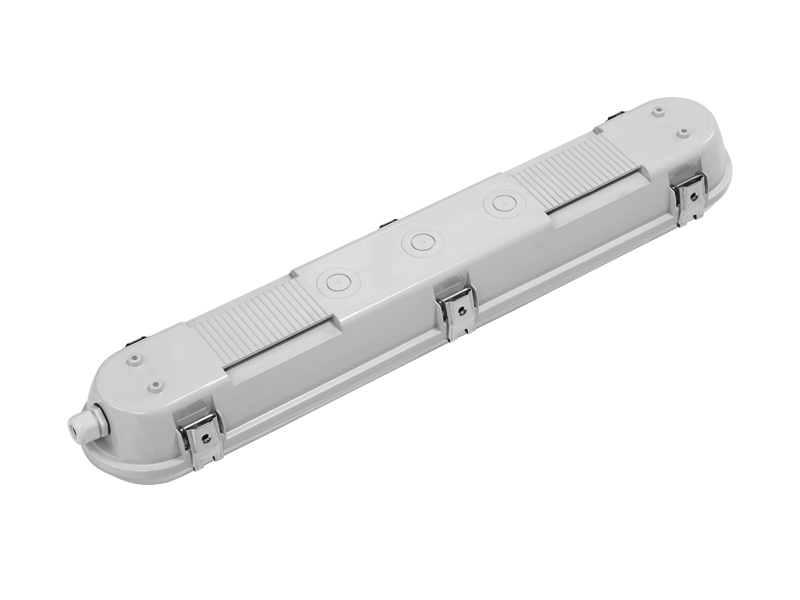

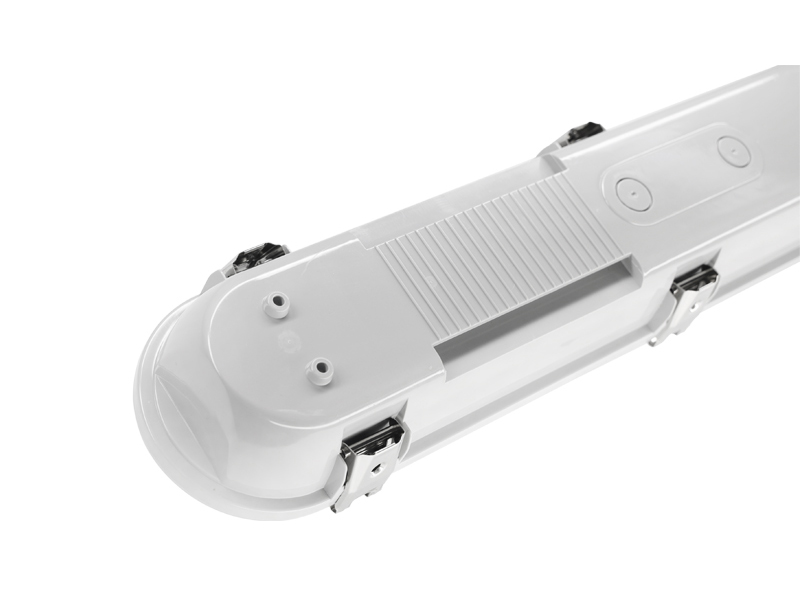

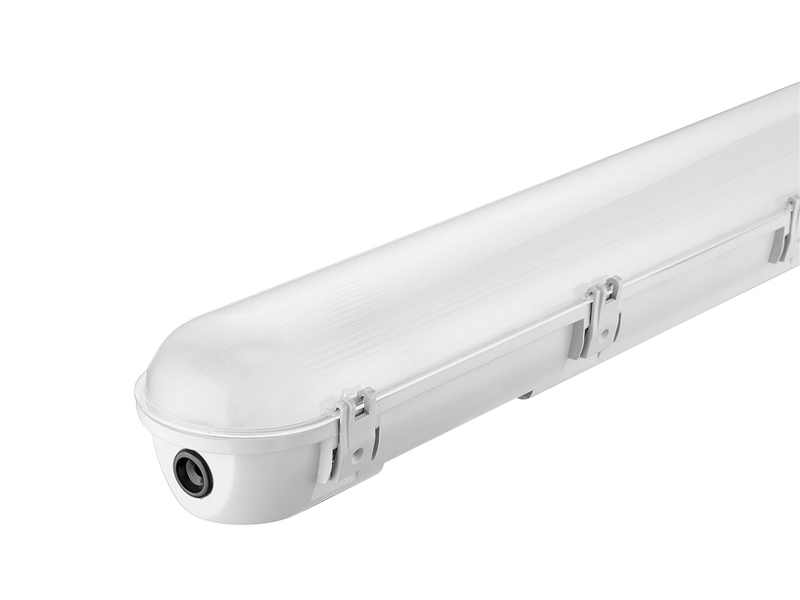

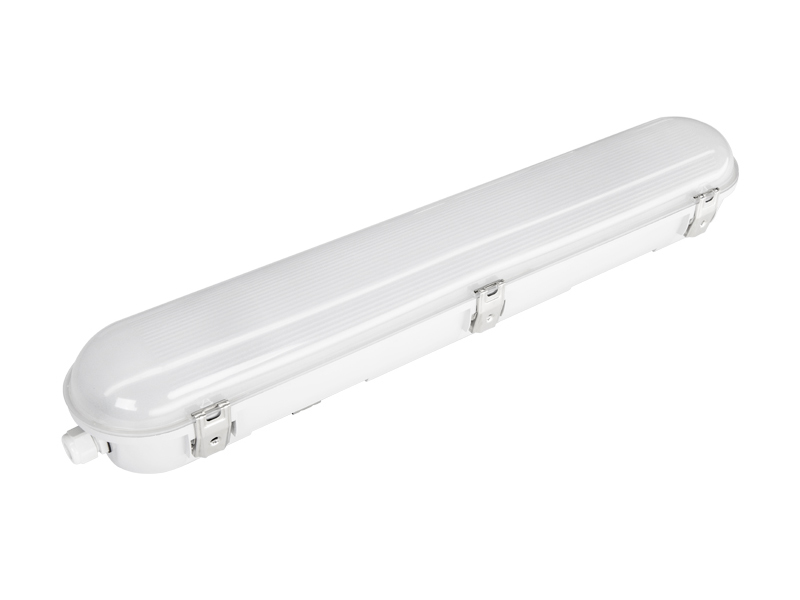

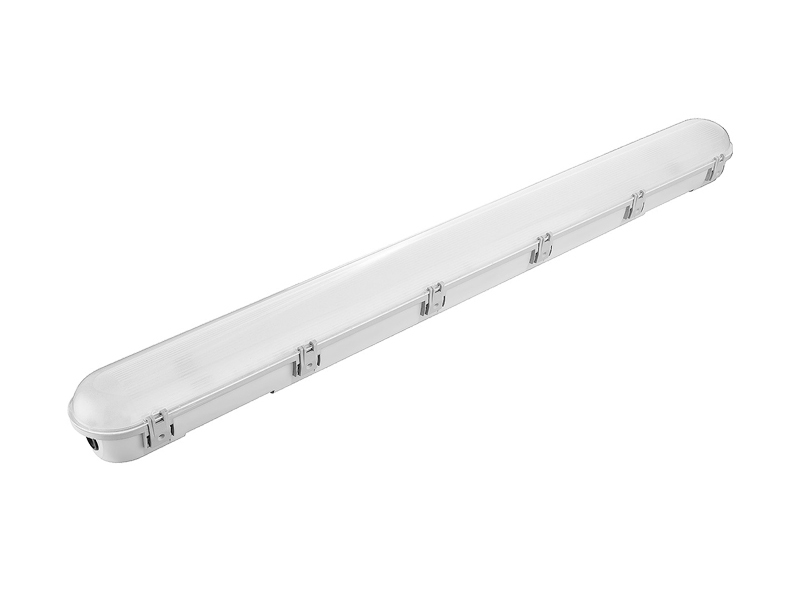

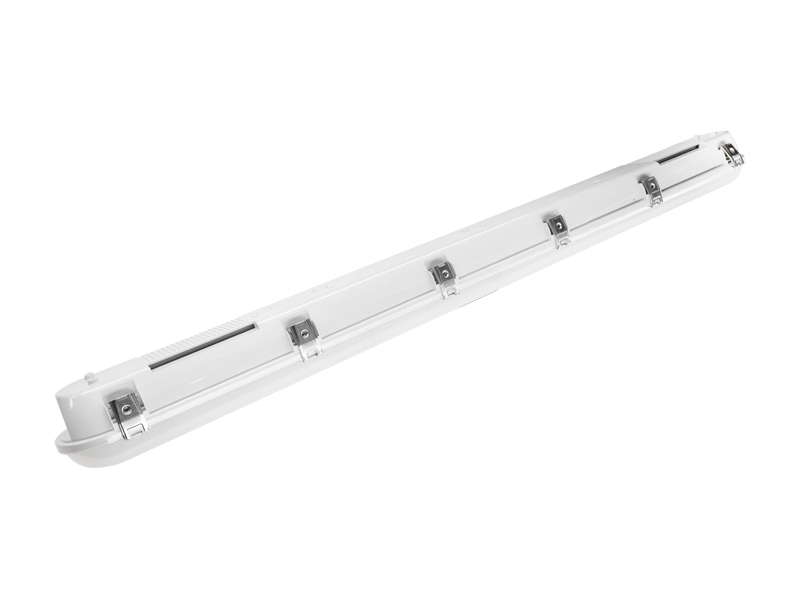

TP IP65 LED LINEAR LOW BAY

Product description:

1.IP66 LED Module Waterproof Luminaire.
2.Frequency :50/60Hz
3.Driver: Philips driver
4.Reflector:MCPCB or PCB for your option.
5.Body and diffuser could meet the IK08,and 850 degree glow wire test requirment
6.Perfect replacement for the whole set of T8 fluorescent lighting fixture.
7.Save up to 60% in electricity consumption compared to fluorescent lighting fixture.
8.Lifepan:5 Years.
9.Lightweight body material .corrosion resistant,waterproof and dustproof
10.Easy Installation with fast connection design,shorten the installation process and save labor cost.
11.It could be fitted with the Microwave sensor,fitted with the Emergency battery to meet the requirment.
Applications:
Suitable for supermarket,underground parking,warehouse,etc.
Contact
  • Model No.

    Total

    Power

    AC

    Input

    Efficiency

    Ra

    Color

    Temperature

    Product Size LxWxH(mm)

    LF(mm)

    Q'ty/CTN

    (PCS)

    Carton Size (mm)

    TP2X25V1X

    25W

    120-277V

    130lm/W

    >80

    4000K

    5000K

    650x125x104

    350

    12

    685x458x415

    TP4X40V1X

    40W

    120-277V

    1220x125x104

    860

    9

    1255x408x355

    TP4X50V1X

    50W

    120-277V

    1220x125x104

    860

    9

    1255x408x355

    TP4X60V1X

    60W

    120-277V

    1220x125x104

    860

    9

    1255x408x355

    TP5X75V1X

    75W

    120-277V

    1560x125x104

    1200

    6

    1595x348x282
