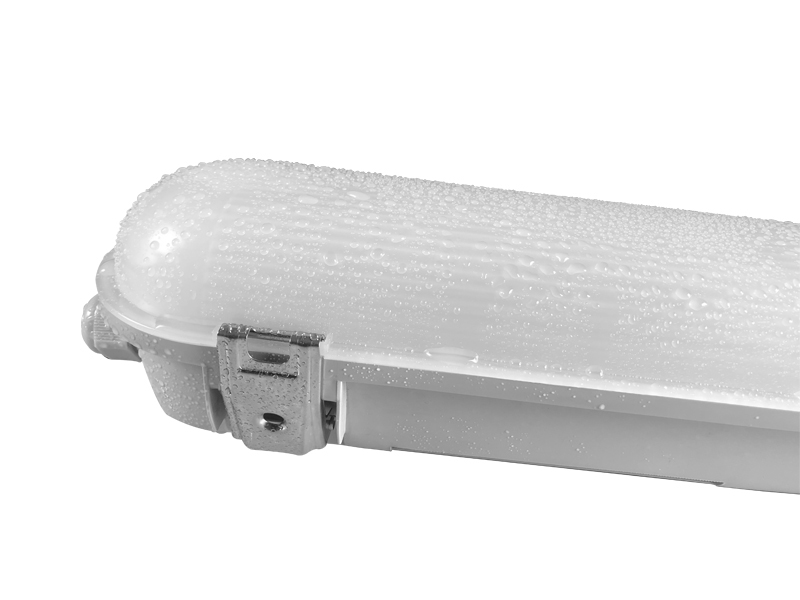

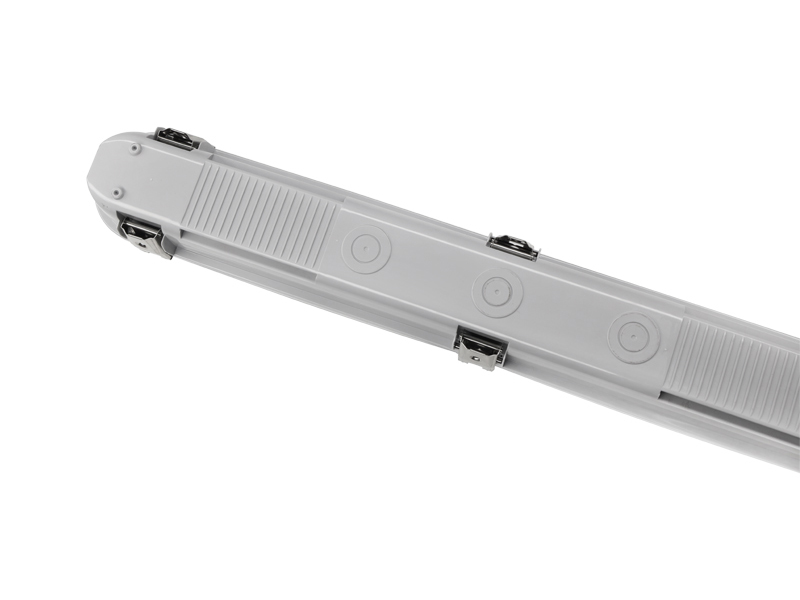

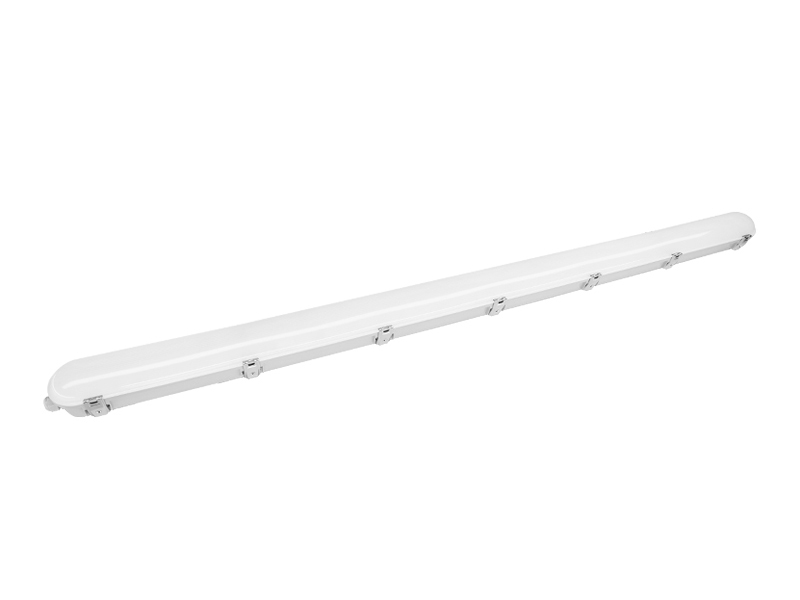

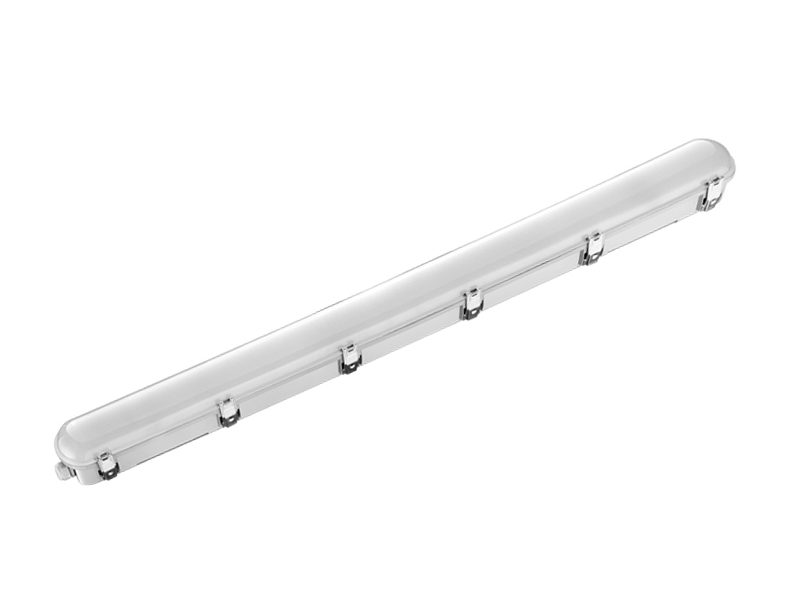

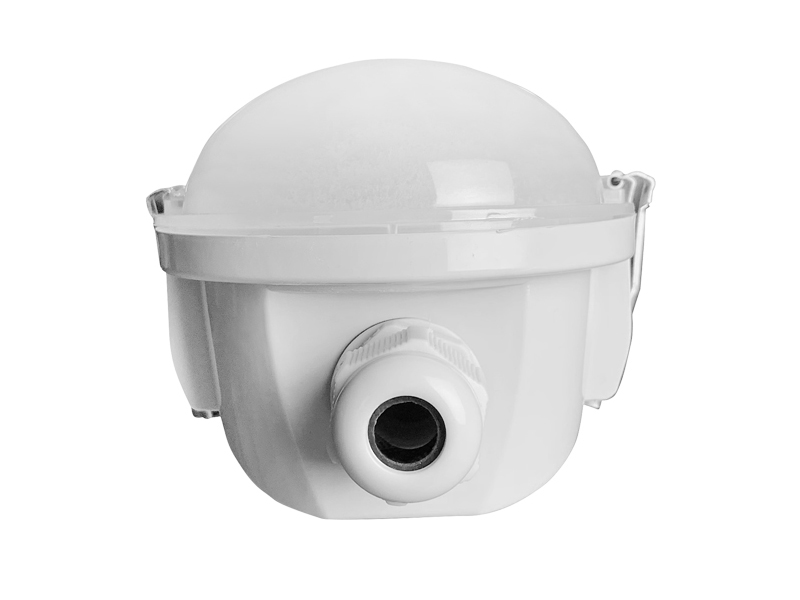

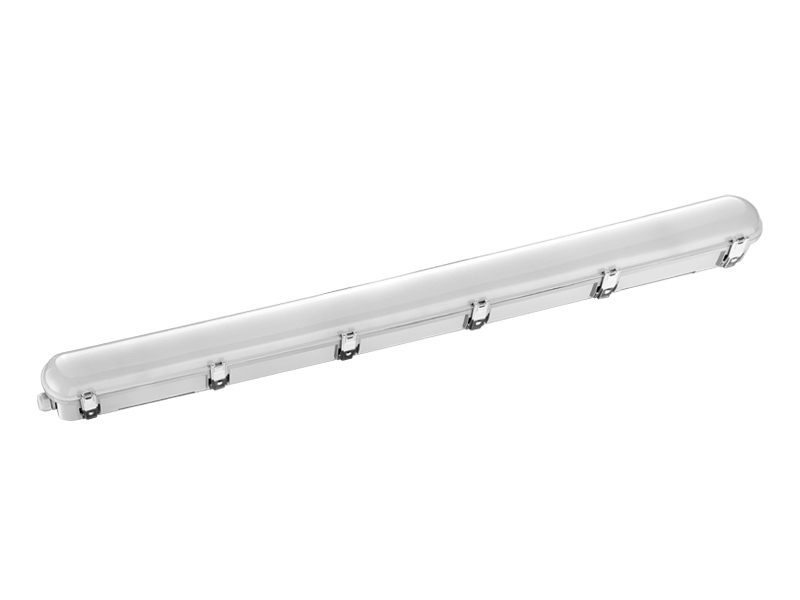

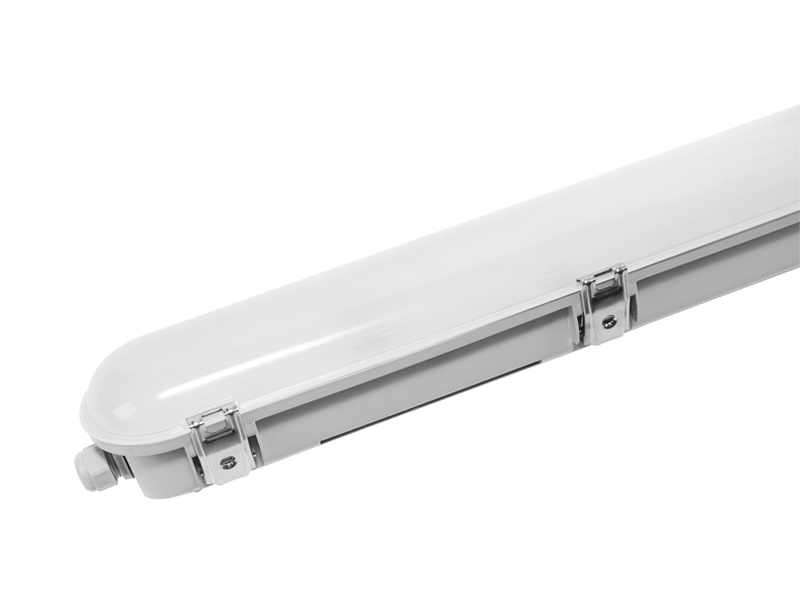

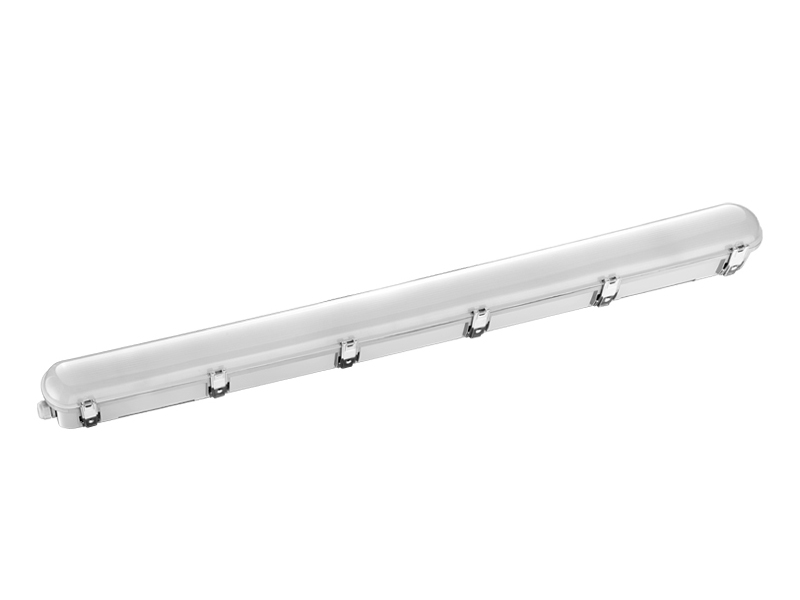

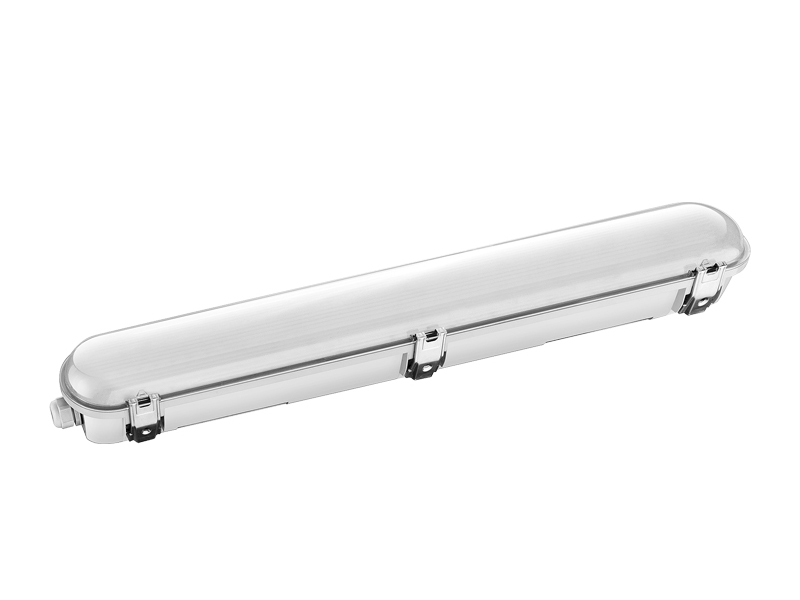

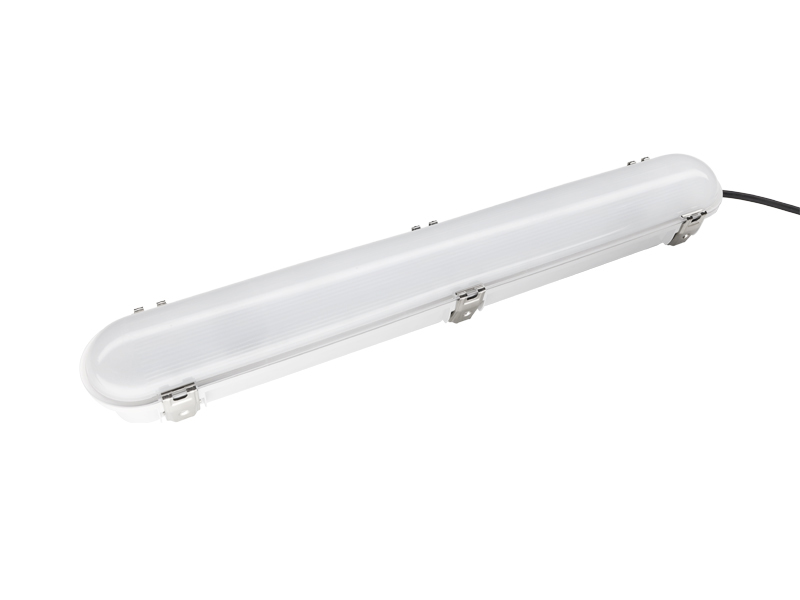

YL08 IP66 LED WATERPROOF LAMP

Product description:

1.IP66 LED Module Waterproof Luminaire.

2.Frequency:50/60Hz

3.Driver:Meanwell driver or other options

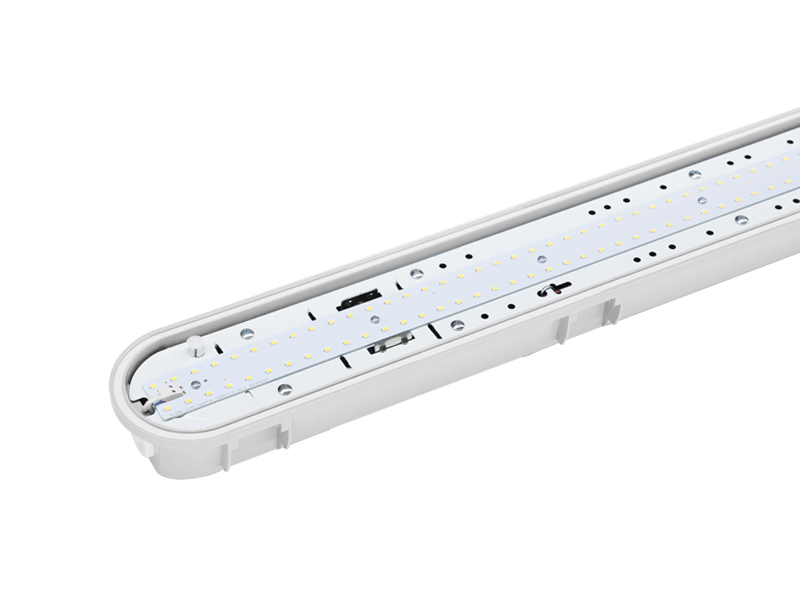

4.Reflector:MCPCB or PCB for your option.

5.Body and diffuser could meet the IK08,and 850 degree glow wire test requirment

6.Perfect replacement for the whole set of T8 fluorescent lighting fixture.

7.Save up to 60% in electricity consumption compared to fluorescent lighting fixture.

8.Lifepan:5 Years.

9.Lightweight body material .corrosion resistant,waterproof and dustproof

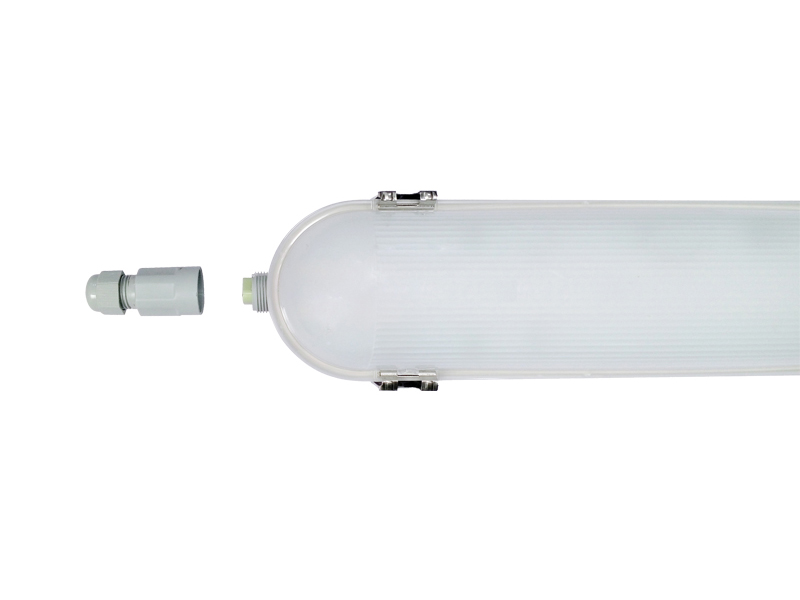

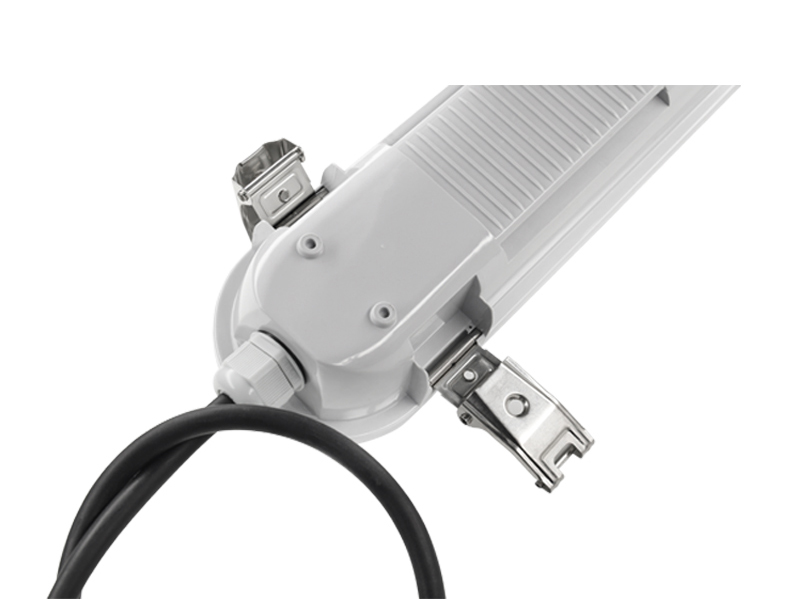

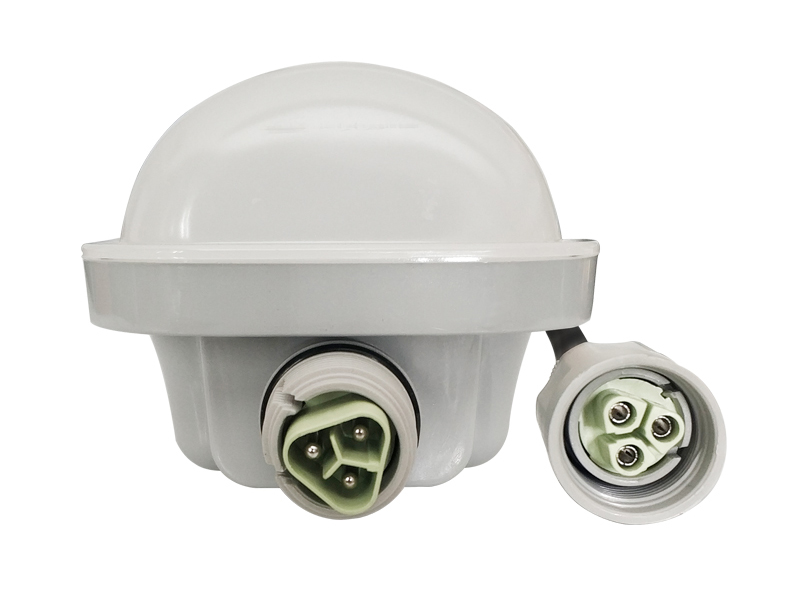

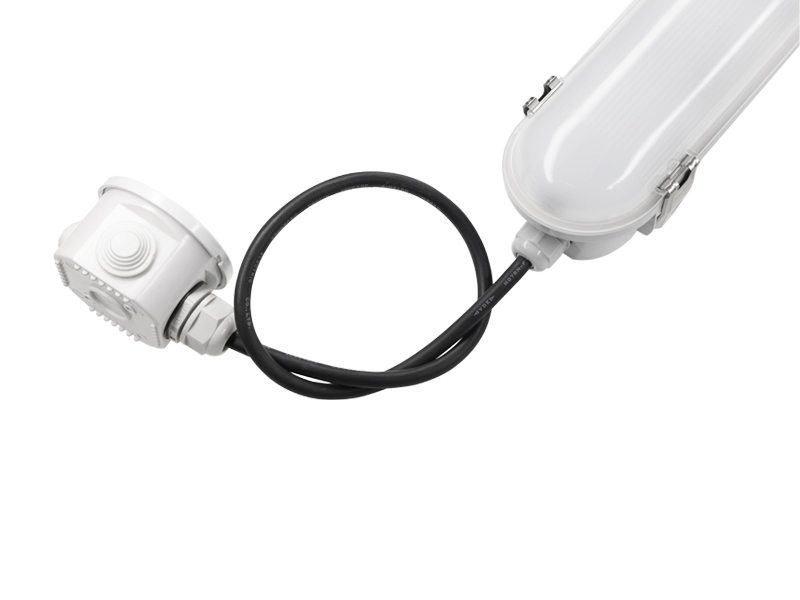

10.Easy Installation with fast connection design,shorten the installation process and save labor cost.

11.It could be fitted with the Microwave sensor,fitted with the Emergency battery to meet the requirment.

Applications:

Suitable for supermarket,underground parking,warehouse,etc.



Contact
  • Warm welcome to inquiry below options:

    • Emergency kit

    • DALI function

    • 3x1.5 to 5x2.5mm2 through-wiring

    • Microwave sensor

    Technical Parameters(Test Conditions 25℃):



    Model No.

    YL08-20W

    -650

    YL08-20W

    -1220

    YL08-30W

    -1220

    YL08-36W

    -1220

    YL08-45W

    -1220

    YL08-36W

    -1560

    YL08-54W

    -1560

    YL08-65W

    -1560

    Lens

    OPAL

    CLEAR

    OPAL

    CLEAR

    OPAL

    CLEAR

    OPAL

    CLEAR

    OPAL

    CLEAR

    OPAL

    CLEAR

    OPAL

    CLEAR

    OPAL

    CLEAR

    CCT@ Lumen Output(lm)

    2700K - 6500K

    2500

    2600

    2500

    2600

    3750

    3900

    4500

    4680

    5600

    5850

    4500

    4680

    6750

    7020

    8100

    8450

    Certificate

    CE-LVD EMC ROHS GS CB ENEC SAA C-TICK

    Power(W±10%)

    20W

    20W

    30W

    36W

    45W

    36W

    54W

    65W

    LED type

    SMD 2835,0.5W

    Input Voltage(V)

    AC220-240V,50/60HZ

    Efficiency

    OPAL LENS 125lm/w

    CLEAR LENS 130lm/w

    CRI

    80

    Beam Angle( °)

    120

    Driver Type

    OSRAM/TRIDONIC/PHIUPS or Chinese driver for option

    LED Chips

    EVERLIGHT/LG/SAMSUNG

    Operating Ambient Temperature( ℃)

    -20 ℃-35 ℃

    Operating Humidity( ℃)

    10%-90%

    Warranty

    Up to 3 Year

    IP

    IP66

    IK

    08

    GLOW WIRE TEST

    Pass 850 ℃

    Material

    Polycarbonate material

    Net Weight(kg)

    1.00

    1.70

    2.10

    Product Size(mm)

    670×97×82

    1240×97×82

    1580×97×82
