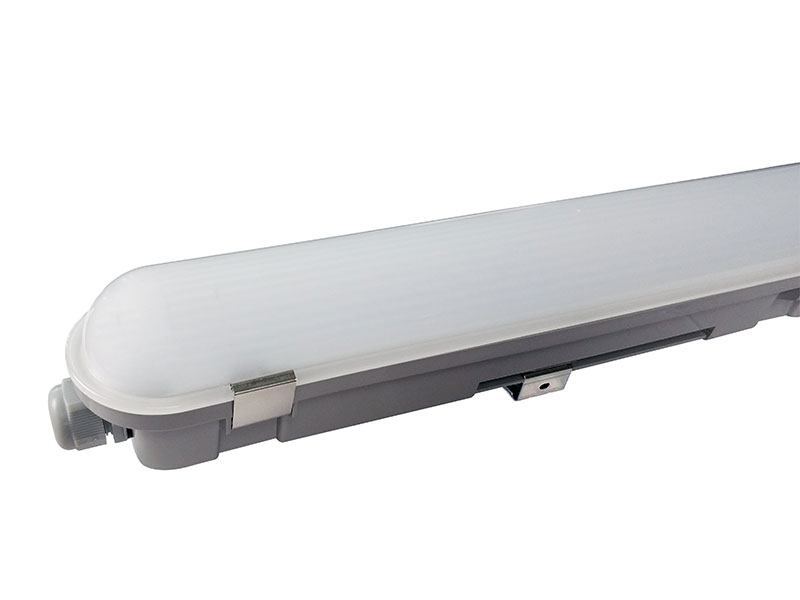

YL11 IP65 LED WATERPROOF LAMP

Contact
  • Model No.

    YL11-20W-650

    YL11-24W-650

    YL11-24W-1220

    YL11-36W-1220

    YL11-30W-1560

    YL11-50W-1560

    System Power(W).

    20W

    24W

    24W

    36W

    30W

    50W

    Input Voltage(V)

    220-240V 50/60Hz

    220-240V 50/60Hz

    220-240V 50/60Hz

    220-240V 50/60Hz

    220-240V 50/60Hz

    220-240V 50/60Hz

    Lumen (110lm/W)

    2100lm

    2420lm

    2420lm

    4000lm

    3300lm

    5500lm

    Lumen (125lm/W)

    2500lm

    3000lm

    3000lm

    4500lm

    3800lm

    6300lm

    CCT (K)

    3000/4000/6500 K

    3000/4000/6500 K

    3000/4000/6500 K

    3000/4000/6500 K

    3000/4000/6500 K

    3000/4000/6500 K

    CRI

    >80

    >80

    >80

    >80

    >80

    >80

    Beam Angel(°)

    120

    120

    120

    120

    120

    120

    IP Rate

    IP65

    IP65

    IP65

    IP65

    IP65

    IP65

    IK

    IK08

    IK08

    IK08

    IK08

    IK08

    IK08

    GWT

    850°C

    850°C

    850°C

    850°C

    850°C

    850°C

    Life time

    50,000 hours

    50,000 hours

    50,000 hours

    50,000 hours

    50,000 hours

    50,000 hours

    Average ambient temp.

    25°C

    25°C

    25°C

    25°C

    25°C

    25°C

    Operating temp range.

    -15°C+35°C

    -15°C+35°C

    -15°C+35°C

    -15°C+35°C

    -15°C+35°C

    -15°C+35°C

    Operating Humidity(°C)

    10%-90%

    10%-90%

    10%-90%

    10%-90%

    10%-90%

    10%-90%

    Product Size(mm)

    660x70x70mm

    660x70x70mm

    1230x70x70mm

    1230x70x70mm

    1570x70x70mm

    1570x70x70mm

    Carton Size(mm)

    700x240x315mm

    700x240x315mm

    1270x240x240mm

    1270x240x240mm

    1610x240x240mm

    1610x240x240mm

    Qty/CTN(pcs)

    12

    12

    9

    9

    9

    9
