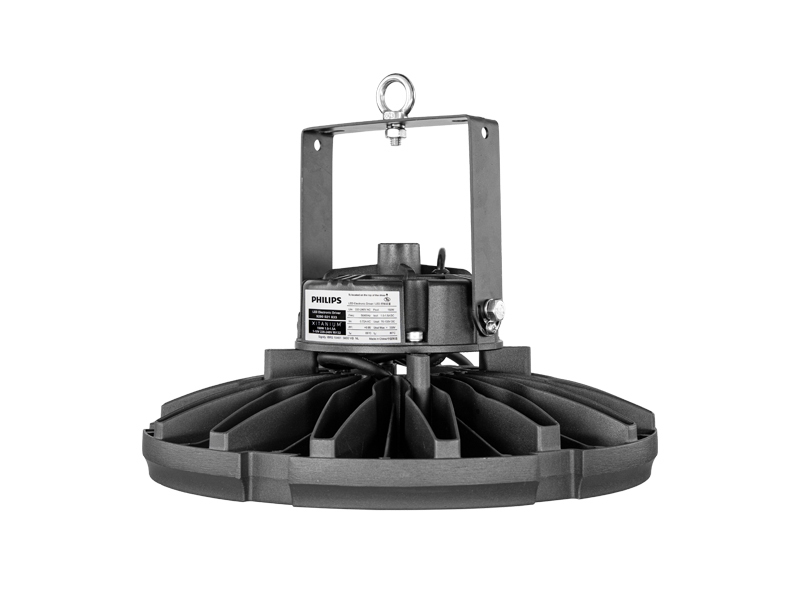

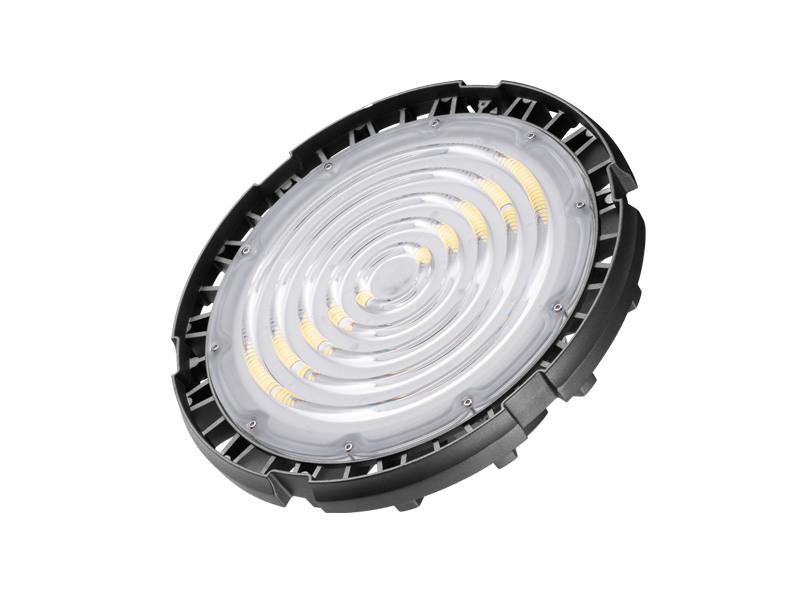

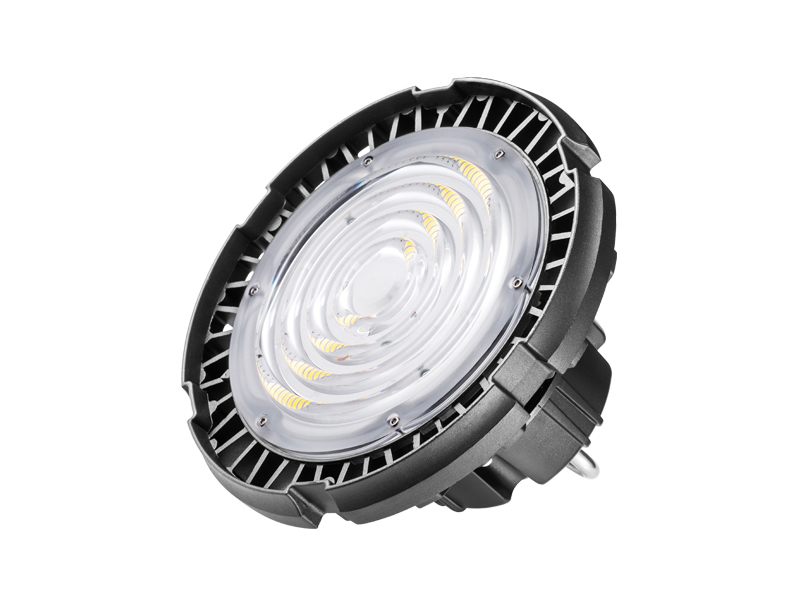

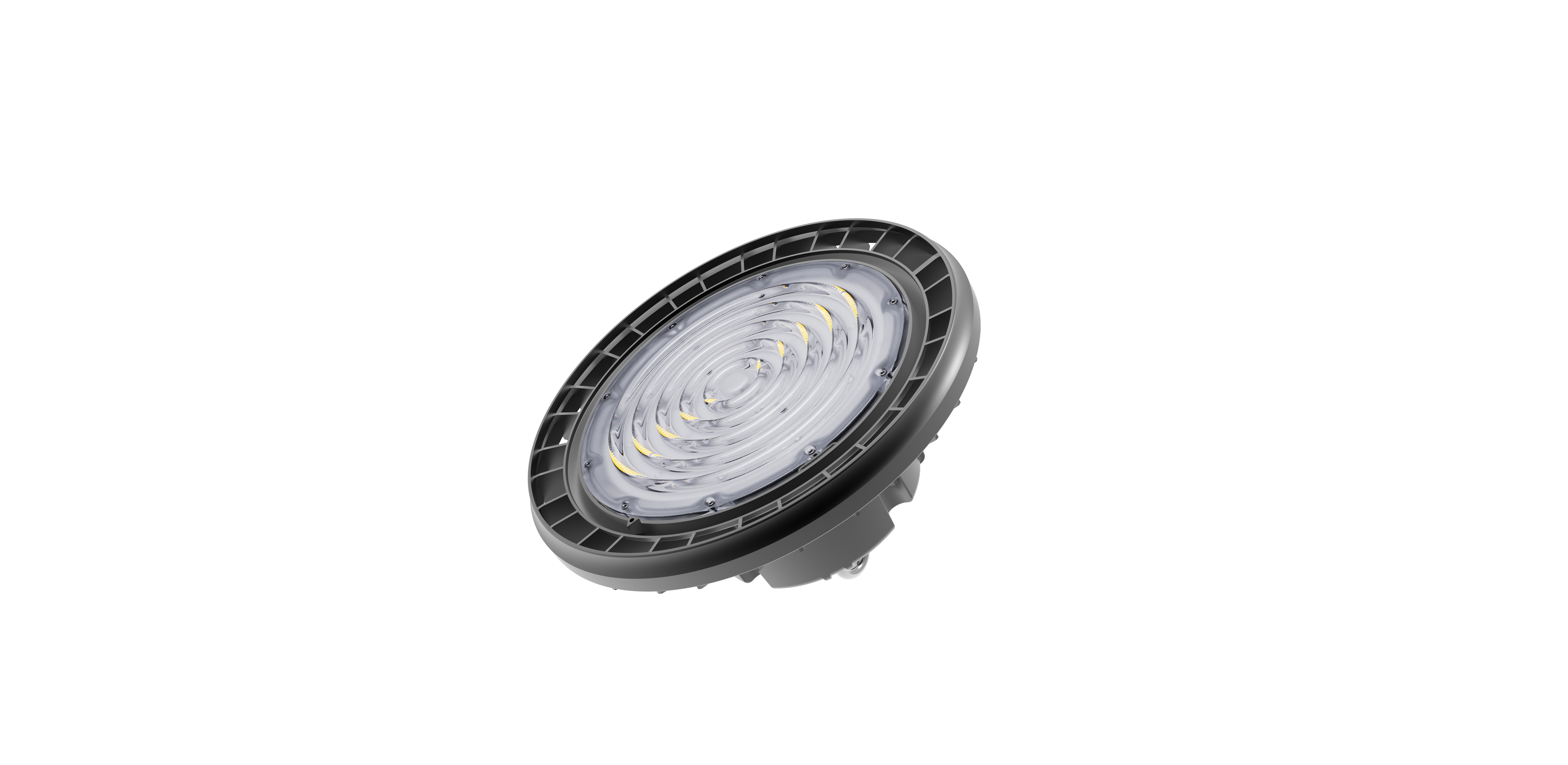

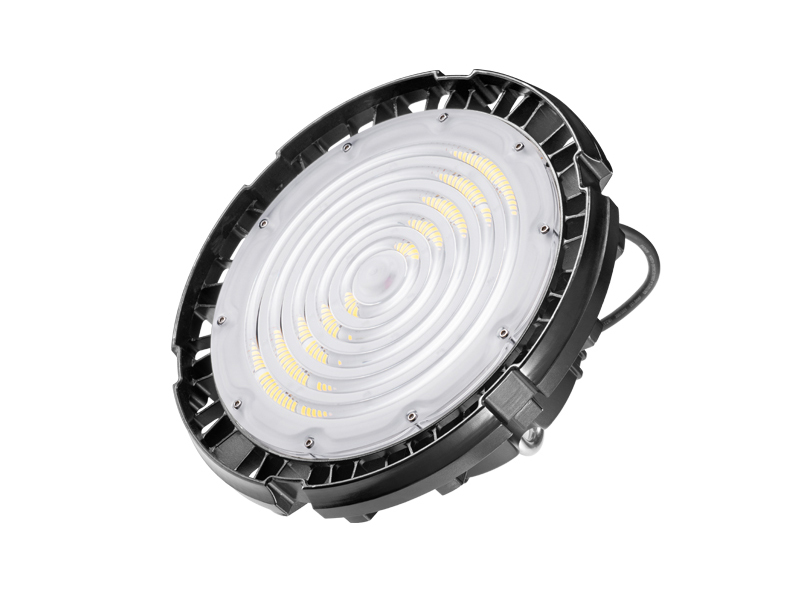

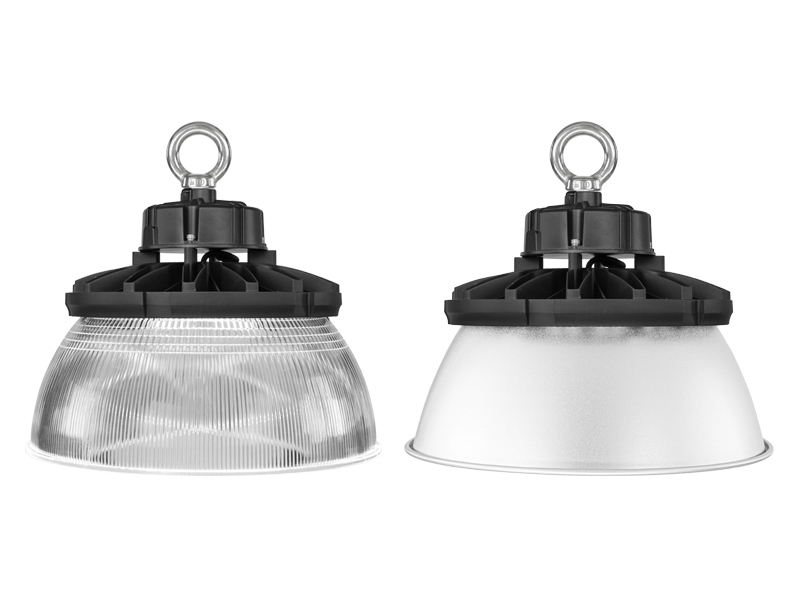

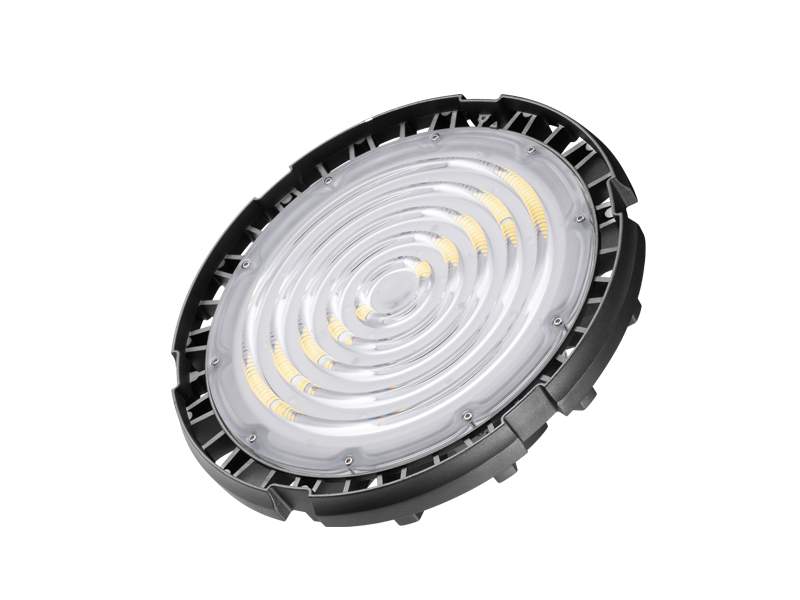

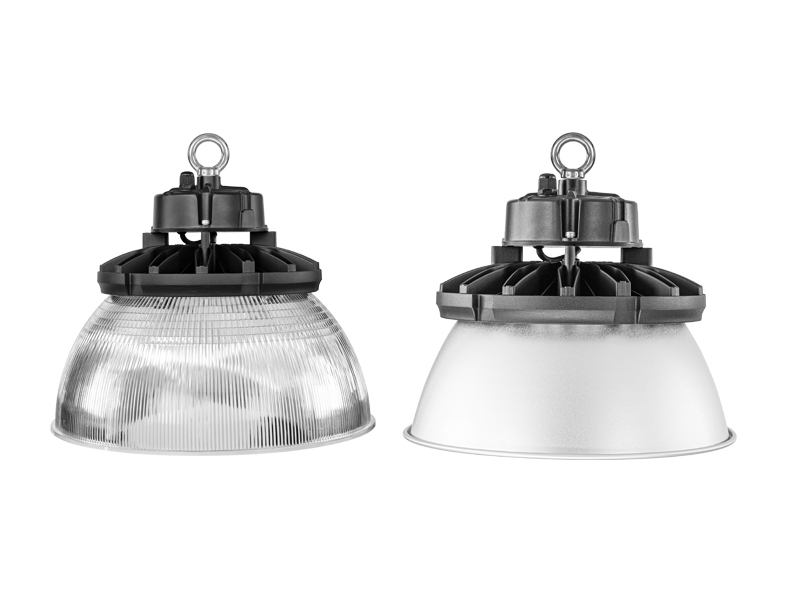

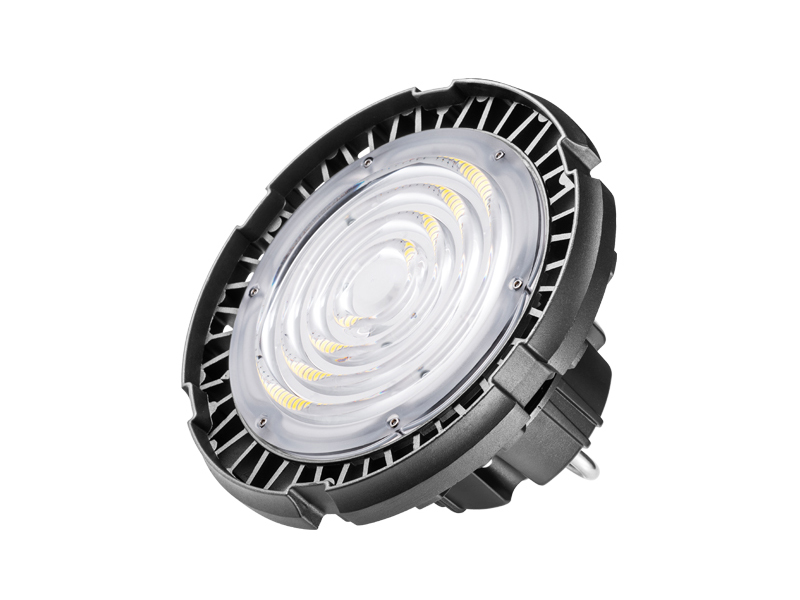

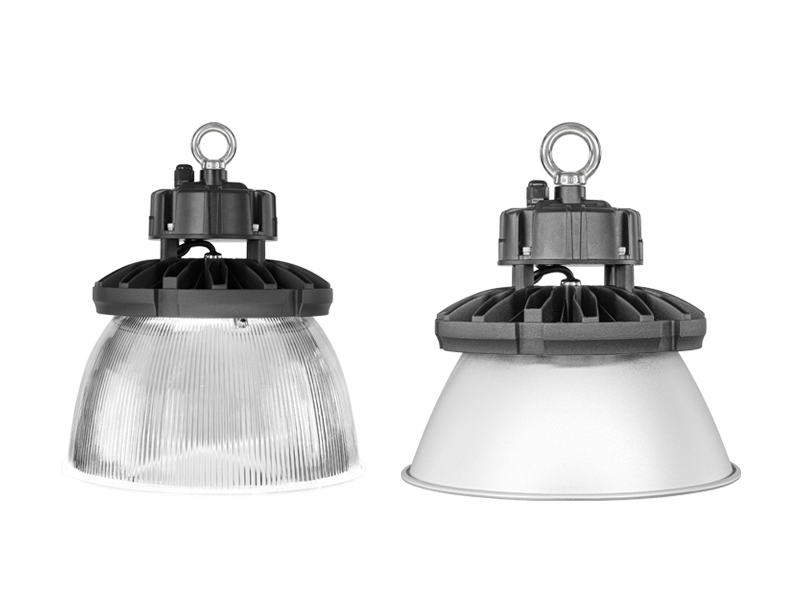

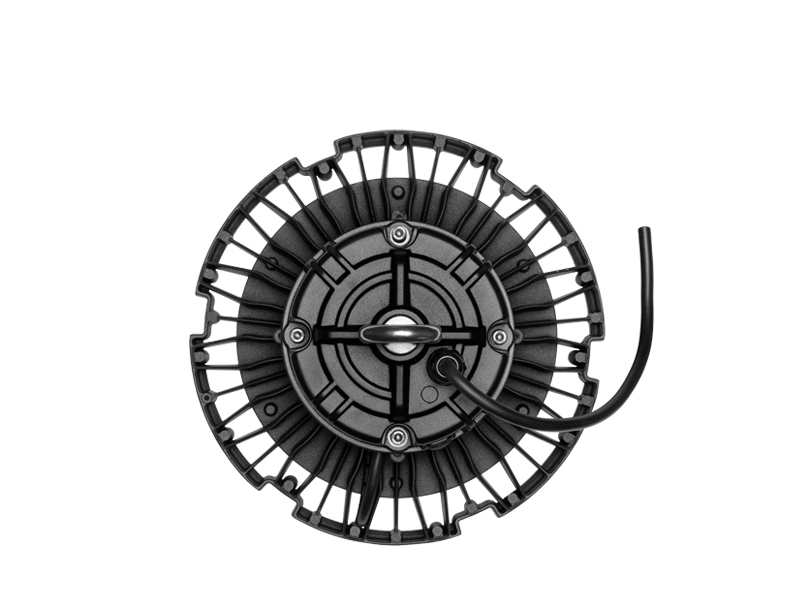

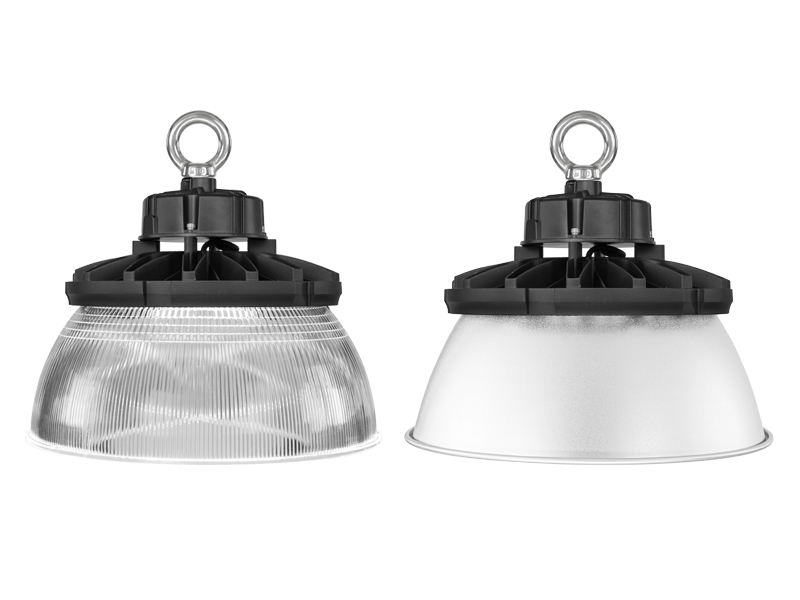

XHB IP65 LED Round High Bay

Product description:

1.Input Voltage/ Frequency: AC100-277V 50/60Hz

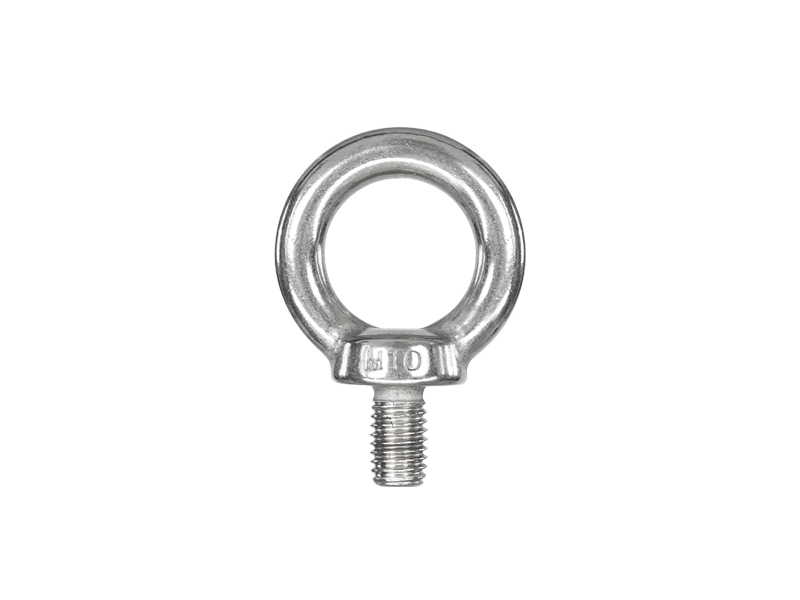

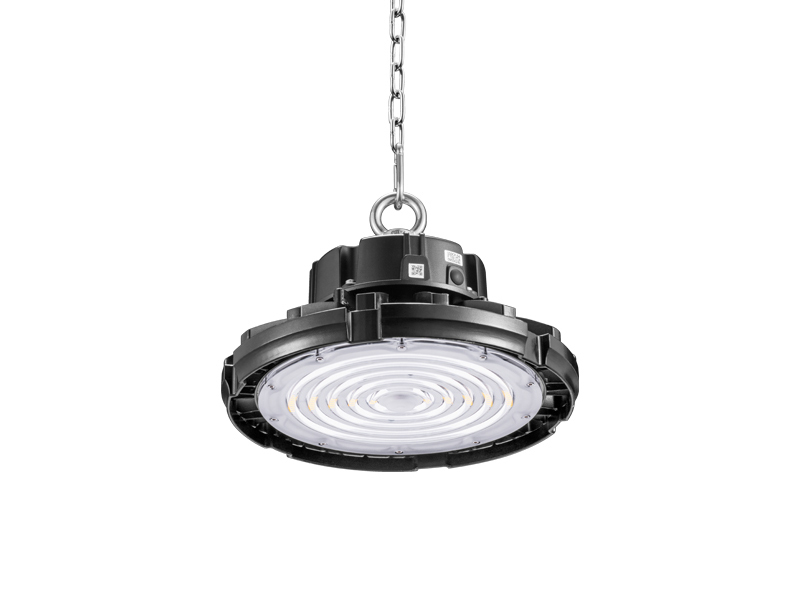

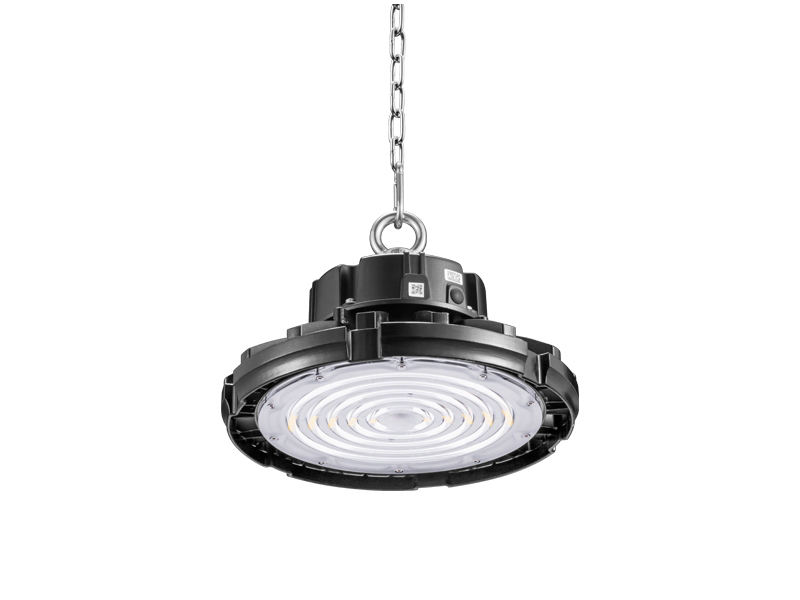

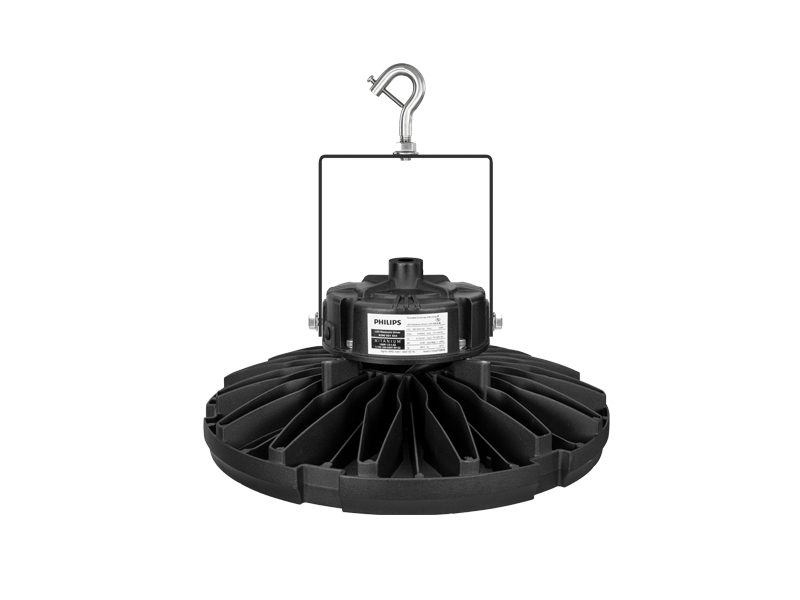

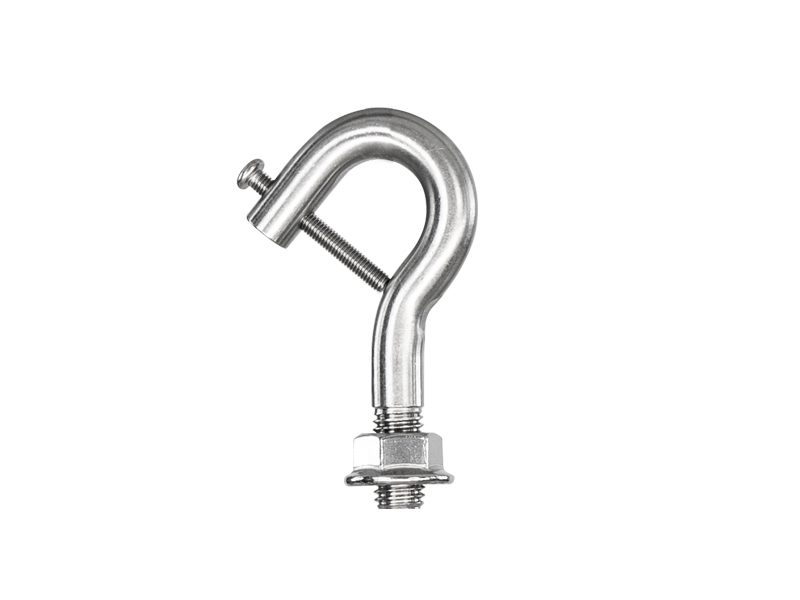

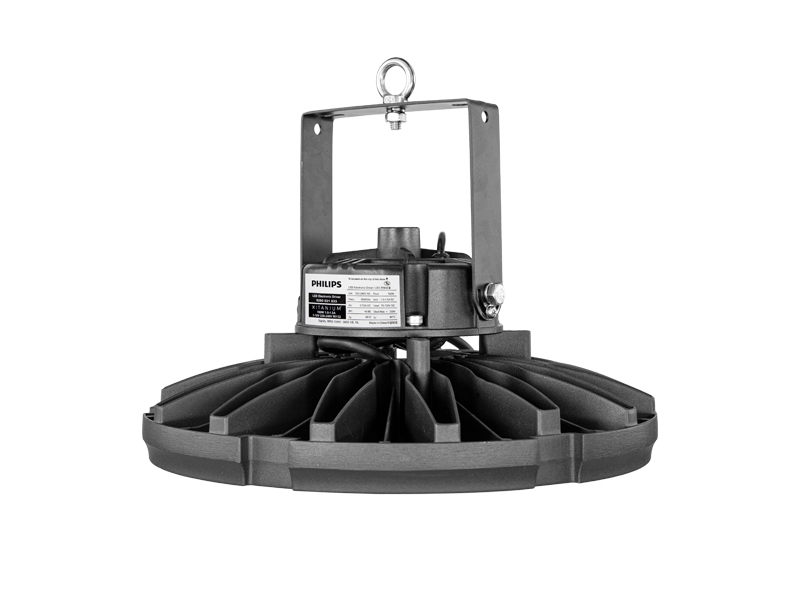

2.Installation: Mounting bracket or hanging with suspension chain

3.Housing: Aluminum die-casting

4.Diffuser: Injection moulded, high mechanical resistant, UV stabilised polycarbonate

5.Driver (0-10V Dim): MEANWELL / SOSEN

6.LED Brand: SMD2835

7.CRI:>80

8.Light Efficiency: 130lm/W or 150lm/W

9.Power Factor: PF>0.9

10.Beam Angle: 60°/90°/120°

11.IP Rating: IP65

12.Warranty: 5 Years

13.Operating Temp Range: -40℃~45℃

14.Certificated: UL/DLC/CE/CB

Contact
  • Model No. XHB-100W XHB-150W XHB-200W
    Power (W)+/-10% 100W 150W 200w
    Lumen Output(+/-3%) 15,000lm 22,500lm 30,000
    CCT 4000K/5000K(ANSI C78.377)
    N.W/G.W. 2.9kg/3.4kg 3.8kg/4.4kg 4.3kg/5kg
    Product Size φ245*188mm φ285*197mm φ320*197mm
    Carton Size 320*320*200mm 340*340*200mm 375*375*200mm

Cixi Yuanhui Lighting Electric Co.,Ltd

  • XHB IP65 LED Round High Bay

    XHB IP65 LED Round High Bay

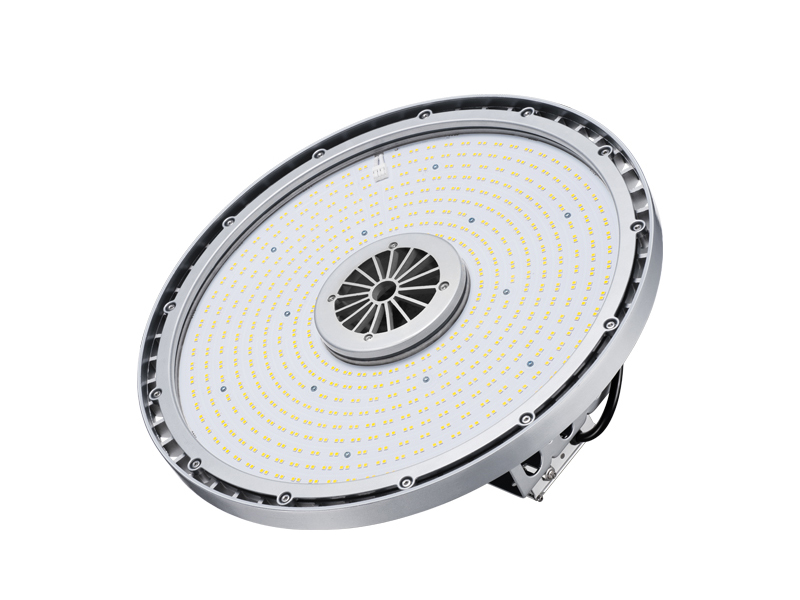

  • HBR G2 IP66 LED Round High Bay

    HBR G2 IP66 LED Round High Bay

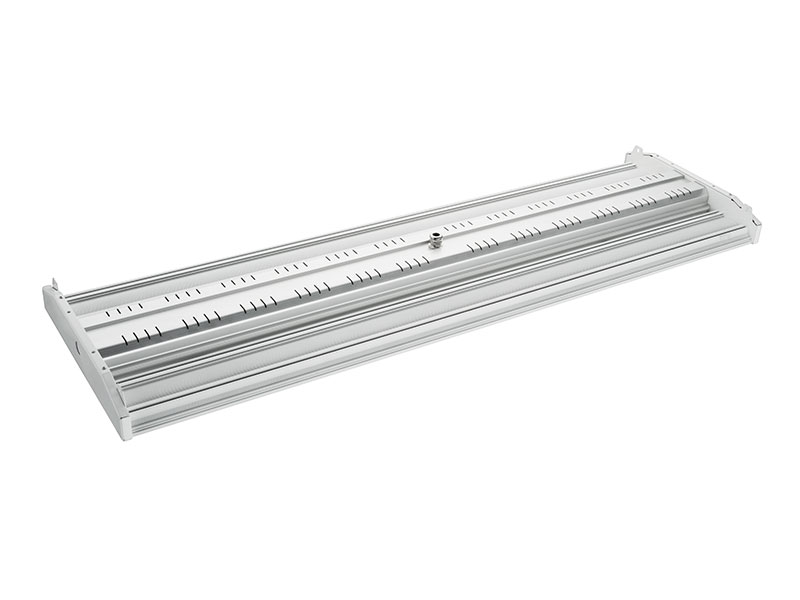

  • HBM IP20 LED Linear High Bay

    HBM IP20 LED Linear High Bay

  • XHB-G2  IP65-LED High Bay

    XHB-G2 IP65-LED High Bay

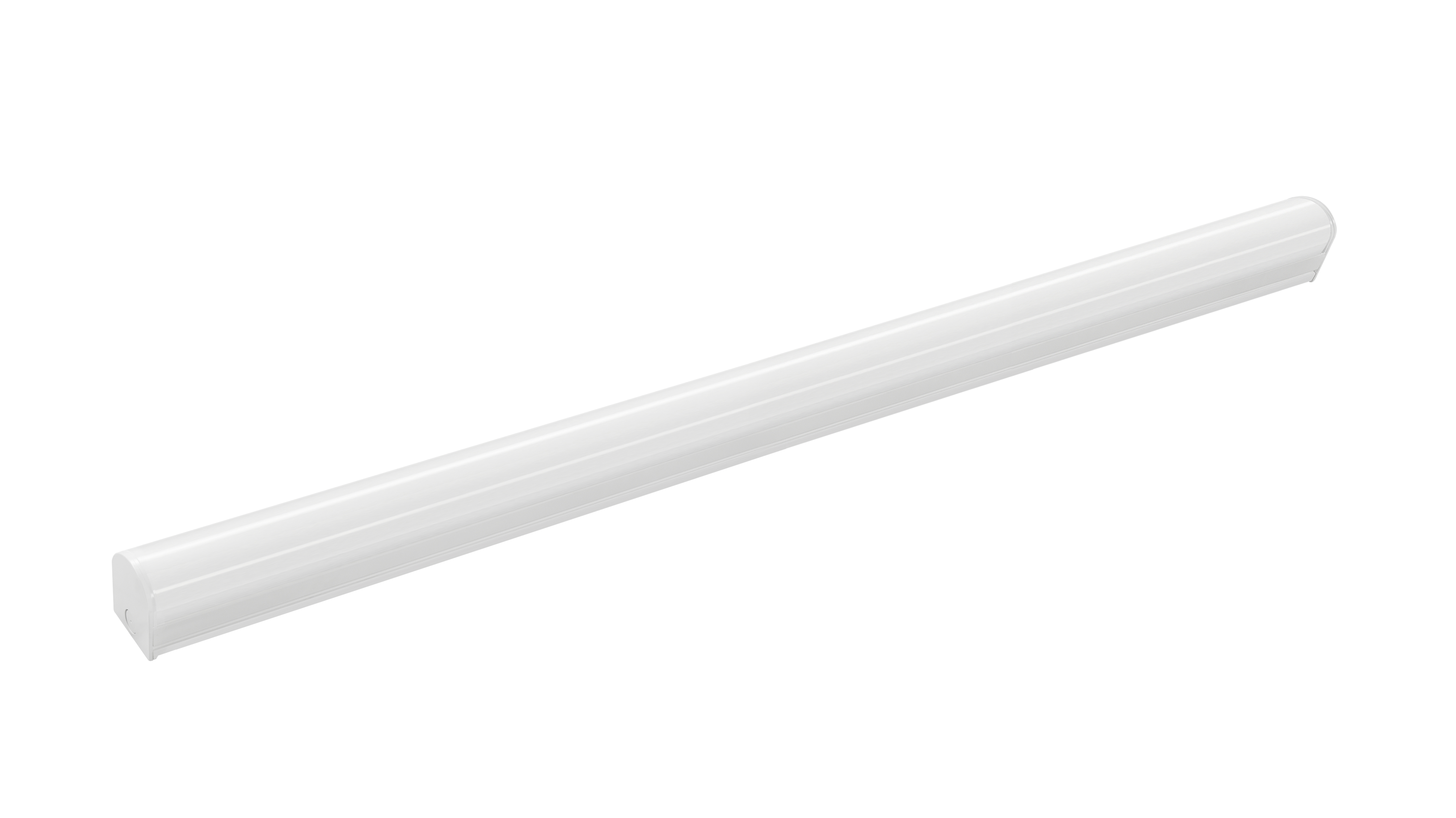

  • YL28 IP20 LED Batten
