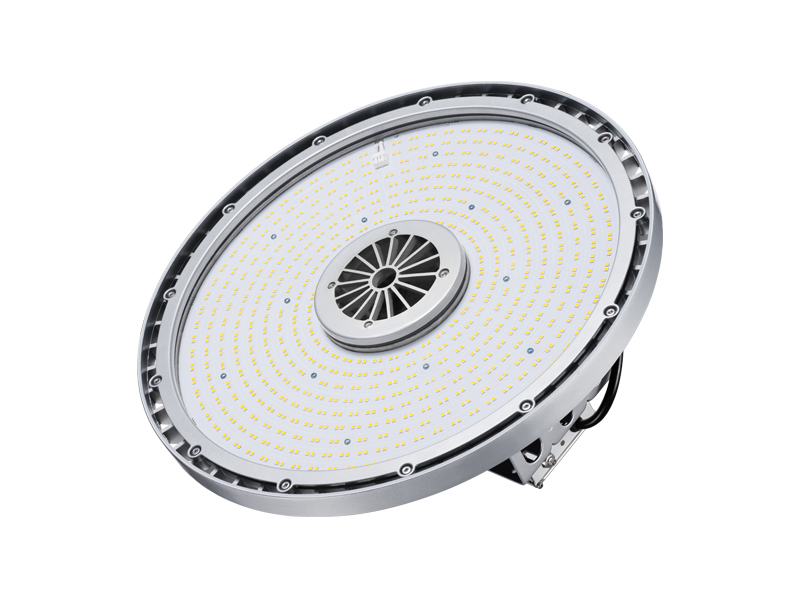

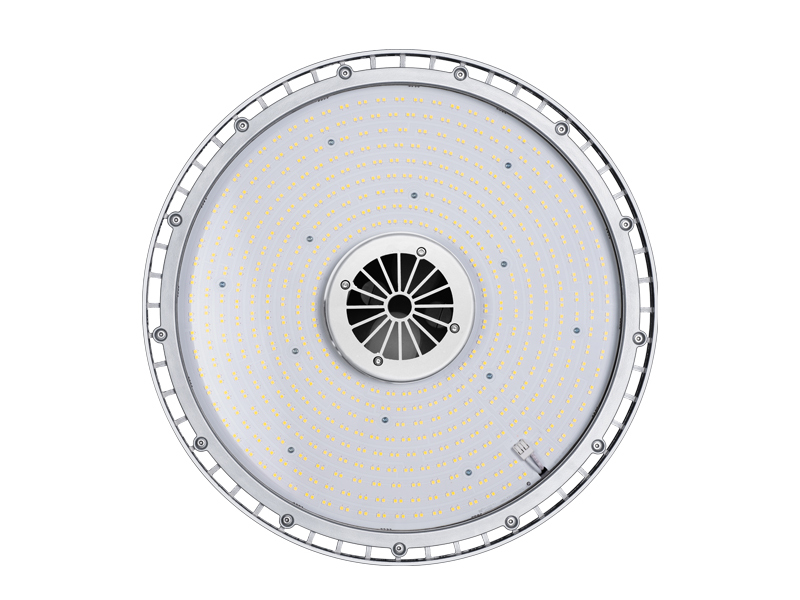

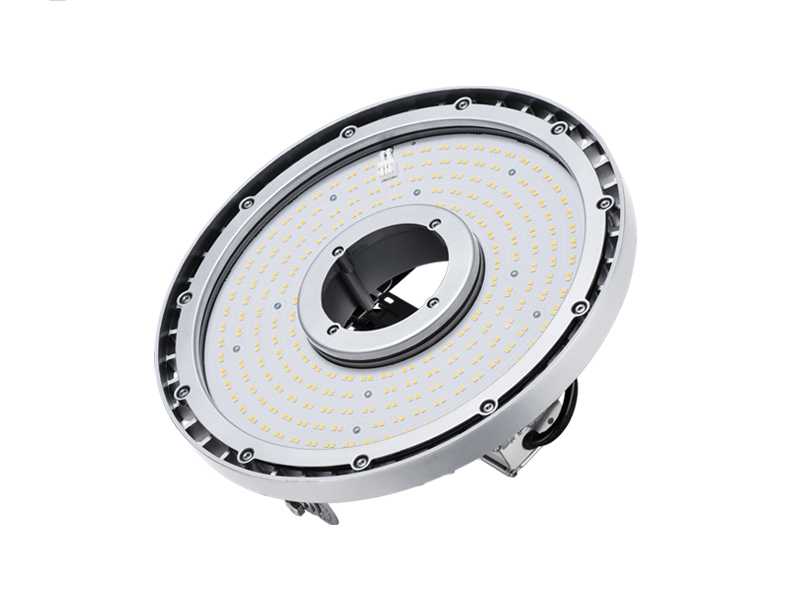

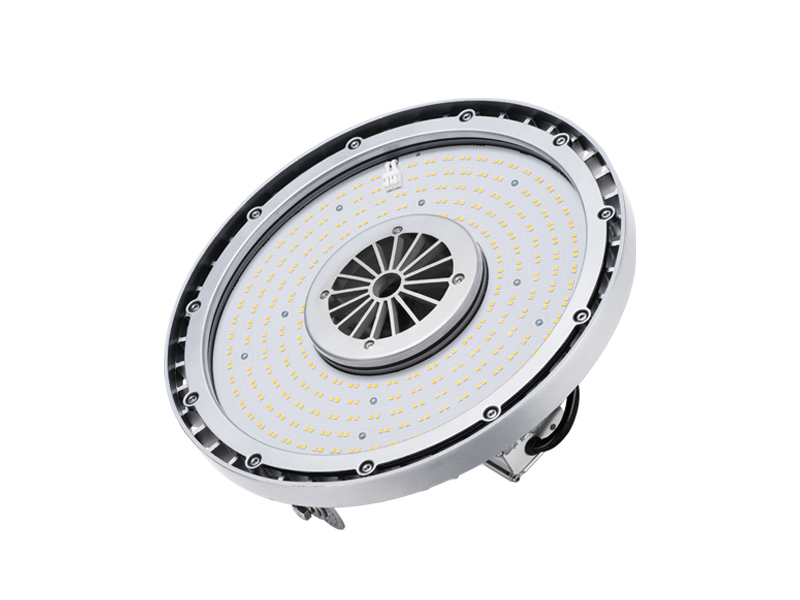

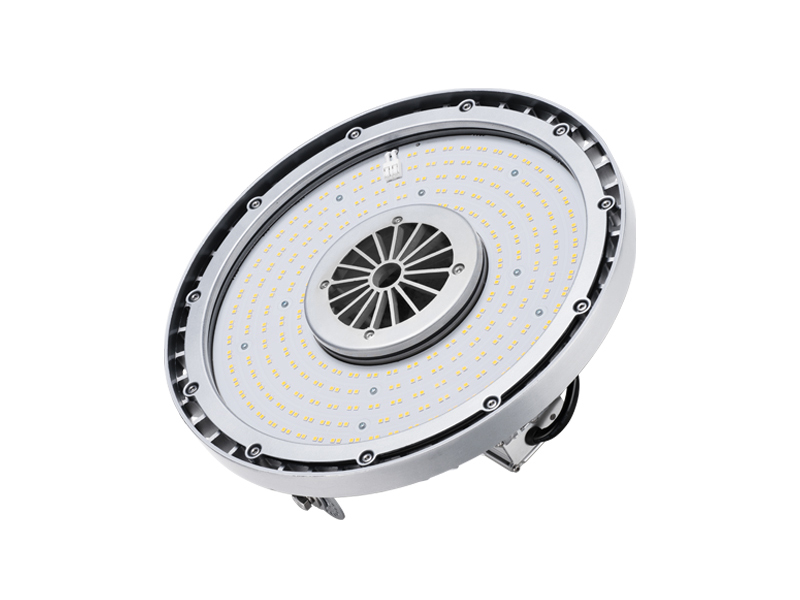

HBR G2 IP66 LED Round High Bay

Product description:

1.Input Voltage/ Frequency: AC100-277V 50/60Hz

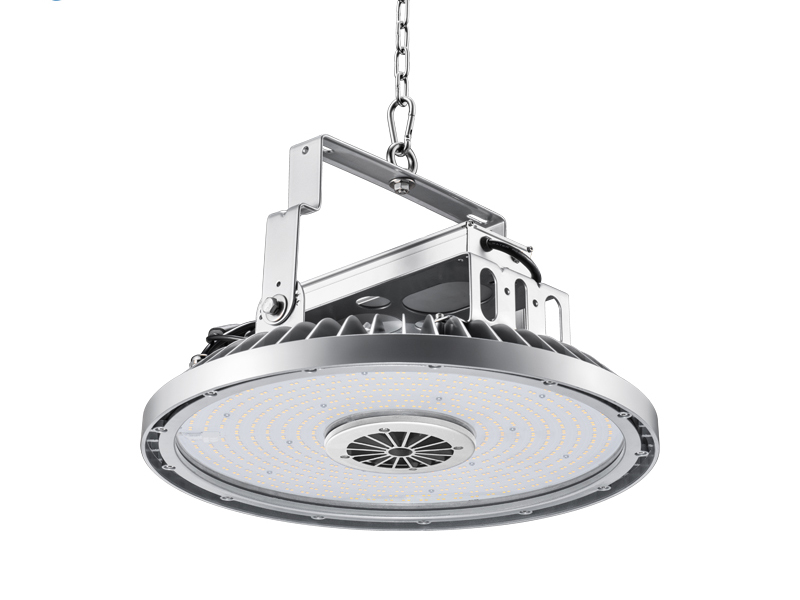

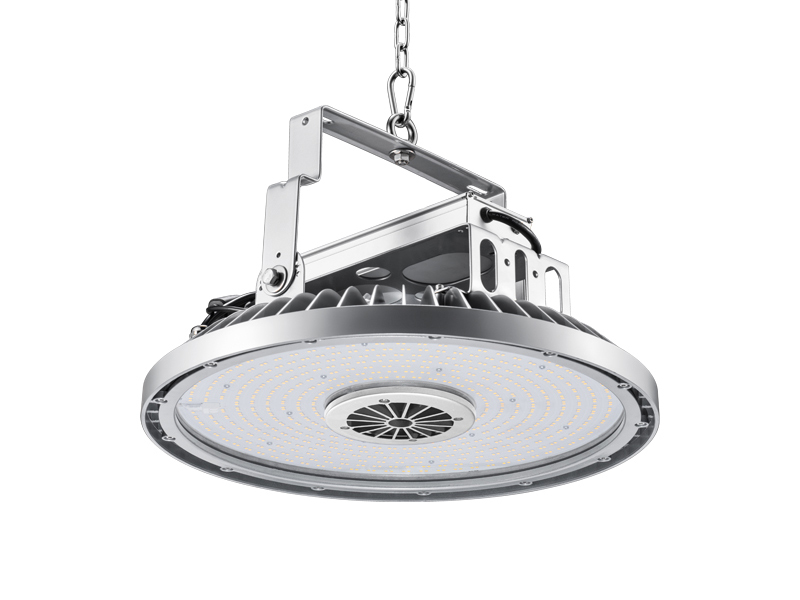

2.Installation: Mounting bracket or hanging with suspension chain

3.Housing: Magnesium Alloy

4.Diffuser: Tempered Glass

5.Driver (0-10V Dim): INVENTRONICS

6.LED Brand: Philips SMD3030

7.CRI:>80 (>90 for option)

8.Light Efficiency: 150lm/W

9.Power Factor: PF>0.9

10.Beam Angle: 120°

11.IP Rating: IP66

12.Warranty: 5 Years

13.Operating Temp Range: -40℃~45℃

14.Certificated: UL/DLC/CE/CB/ENEC

Contact

  • Model No. HBR-G2-330(90W) HBR-G2 330(140W) HBR-G2-330(180W) HBR-G2-330(240W) HBR-G2-330(320W)
    Power (W)+/-10% 90W 140W  180W 240W 320W
    Lumen Output(+/-3%)  13500lm 21000lm 27000lm 36000lm 48000lm
    CCT 4000K/5000K
    Body color Silver
    Product Size

     φ330*220mm

    		  φ330*220mm  φ430*250mm φ430*250mm  φ430*250mm
    Carton Size  375*375*175mm  375*375*175mm  475*475*200mm  475*475*200mm  475*475*200mm
