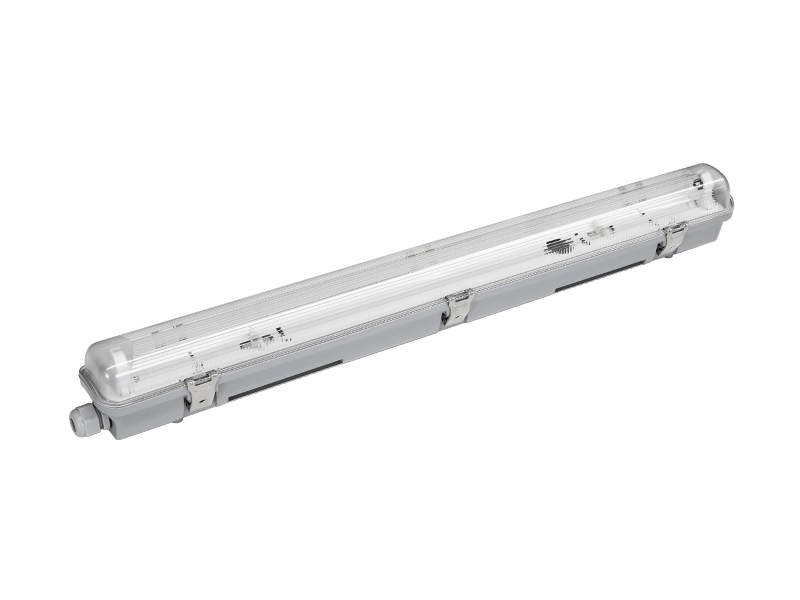

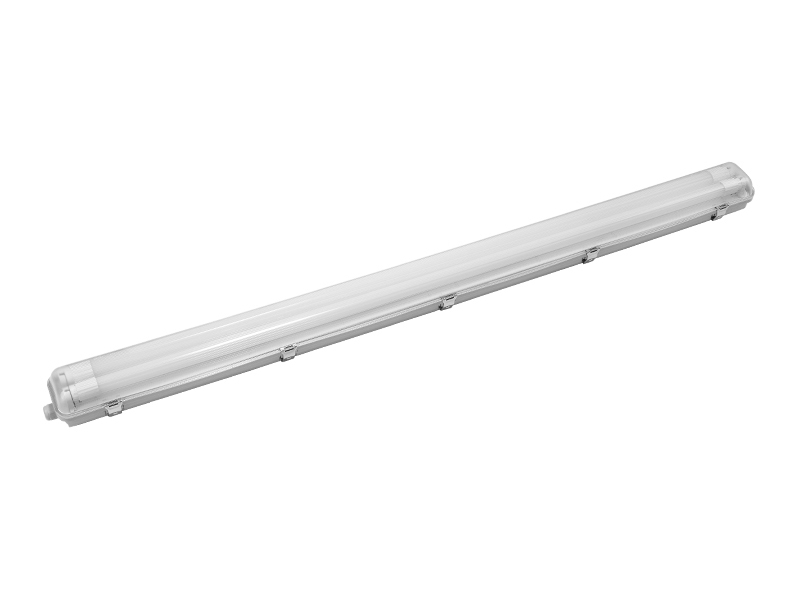

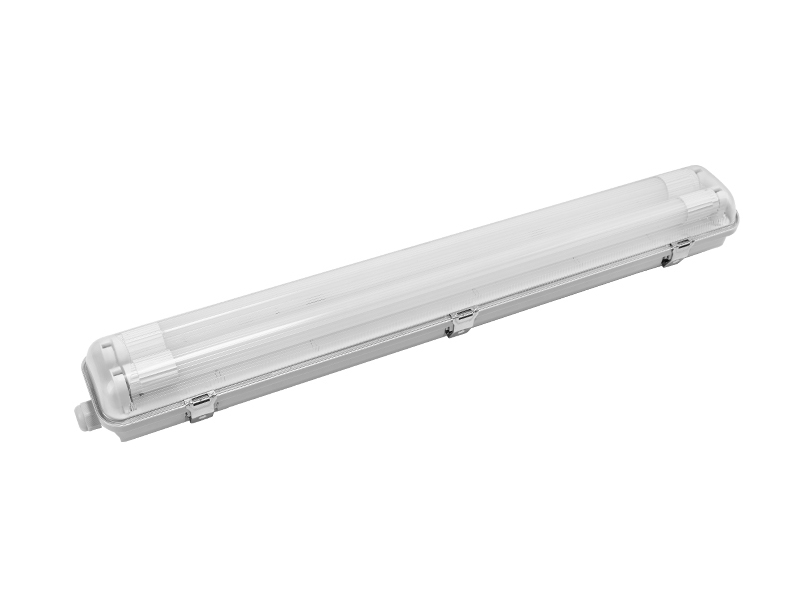

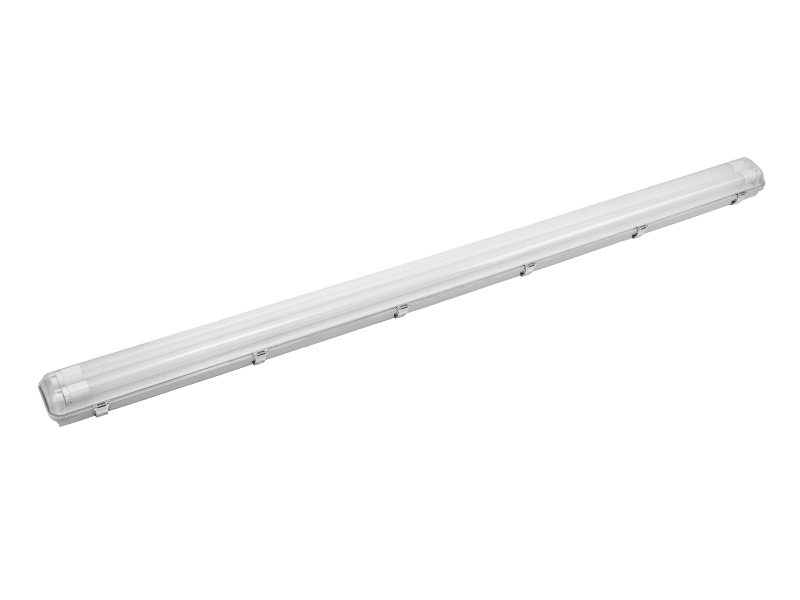

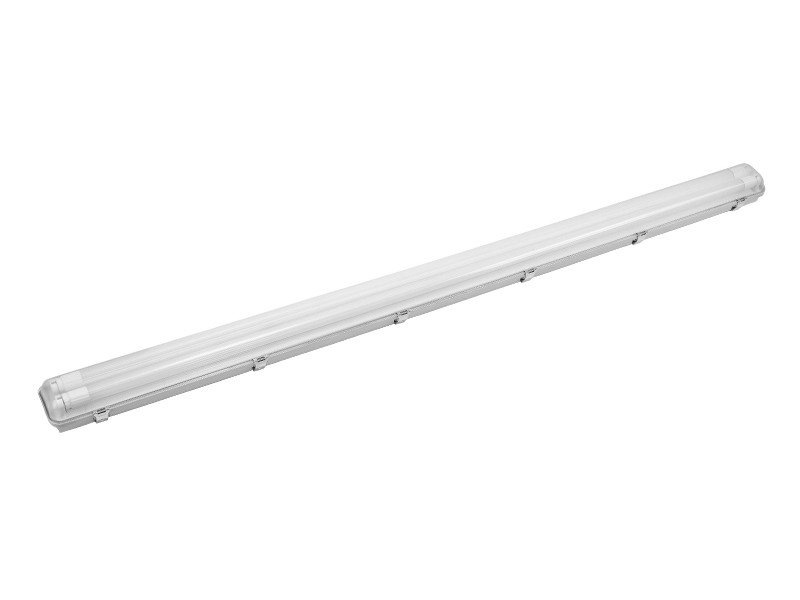

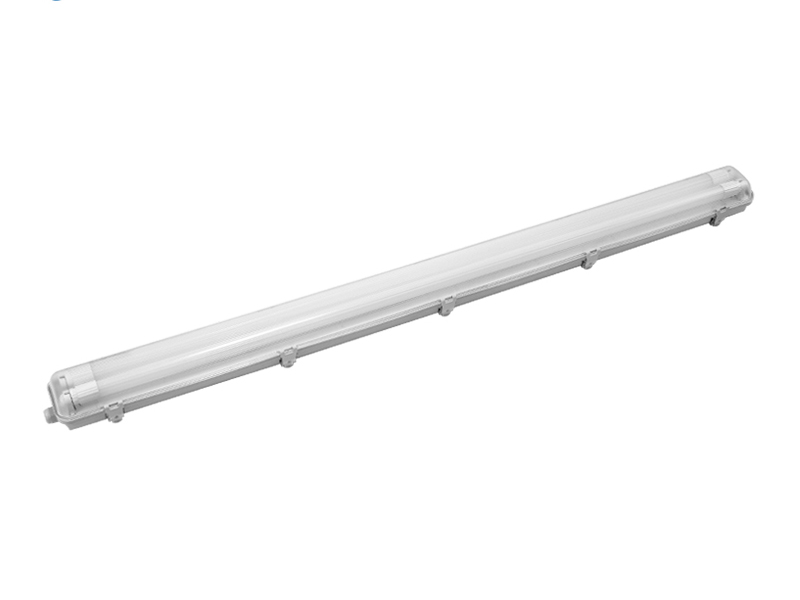

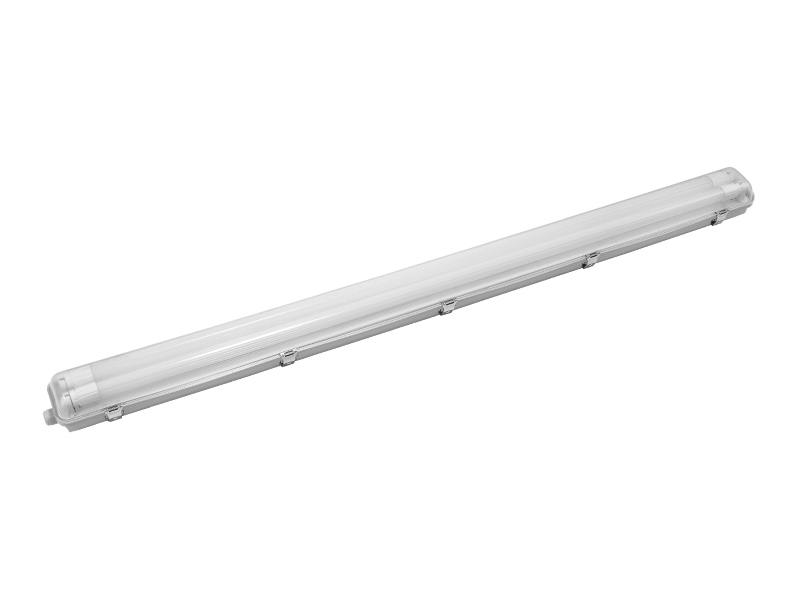

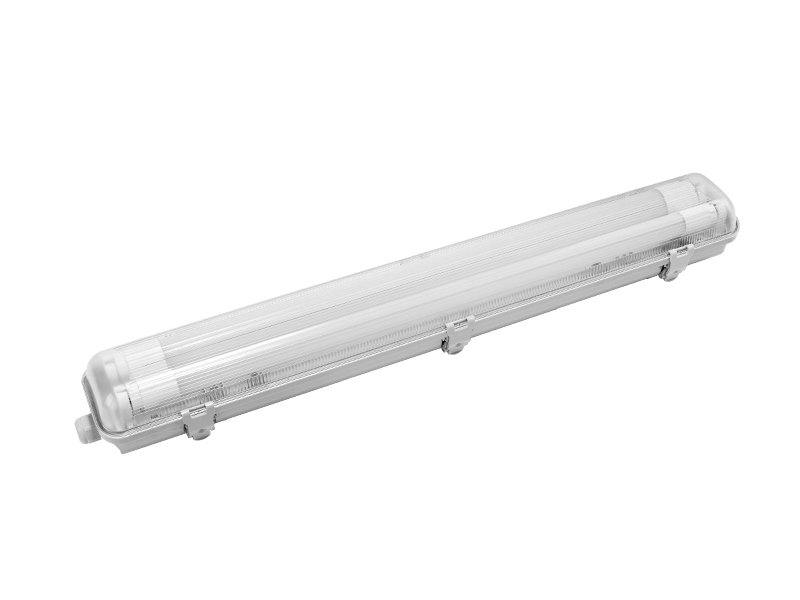

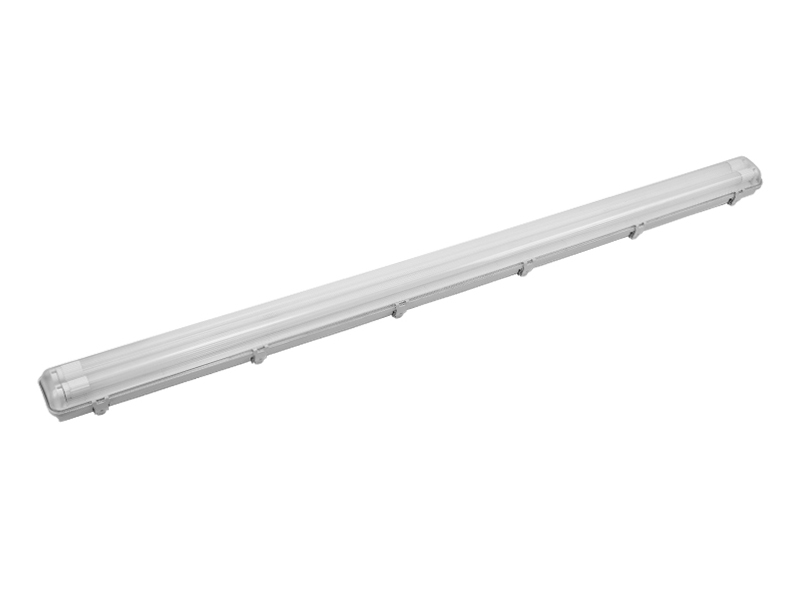

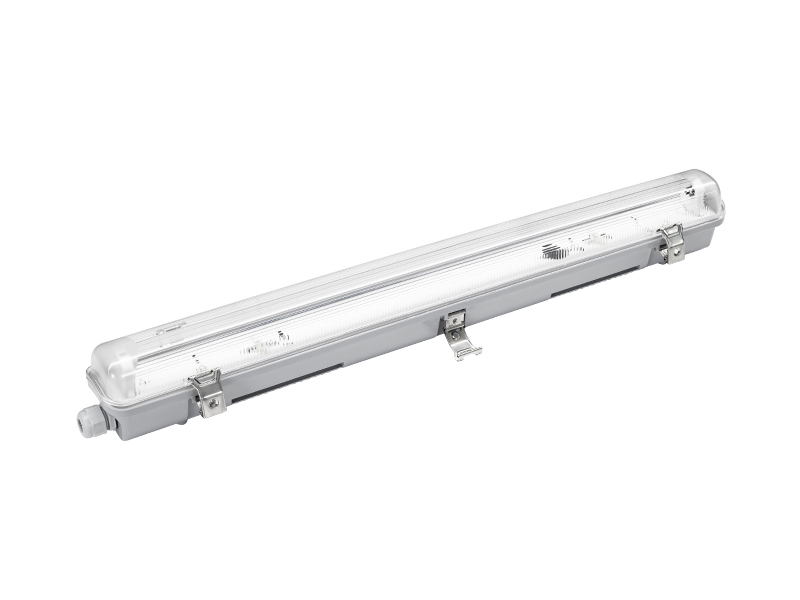

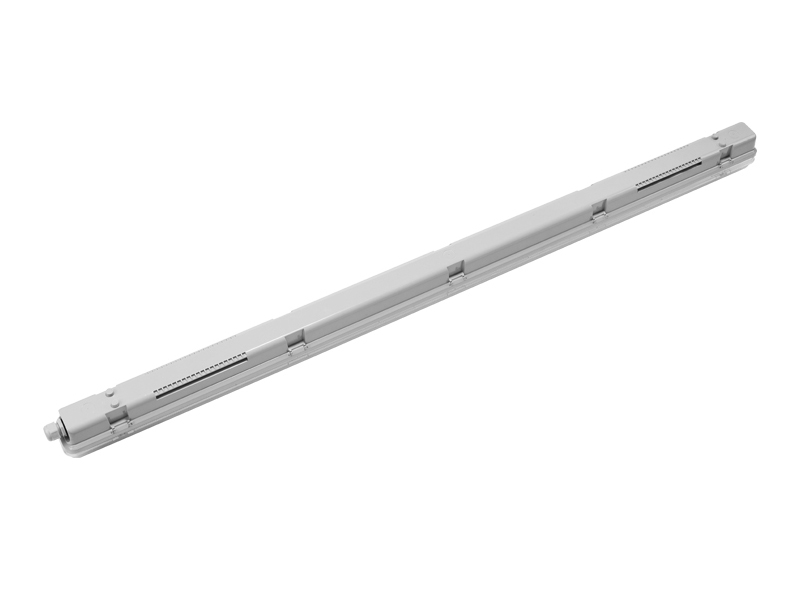

YH15 SERIES For T8 LED Tube-Waterproof Fixture

Product description:

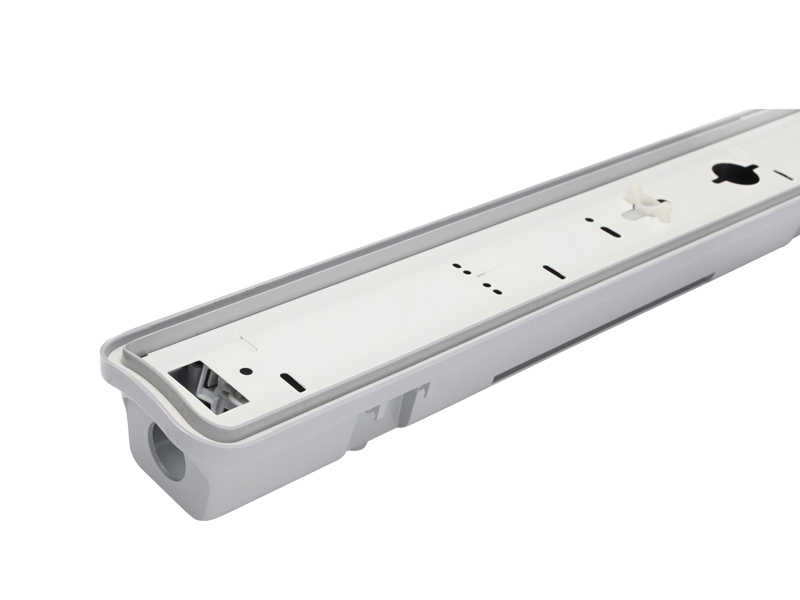

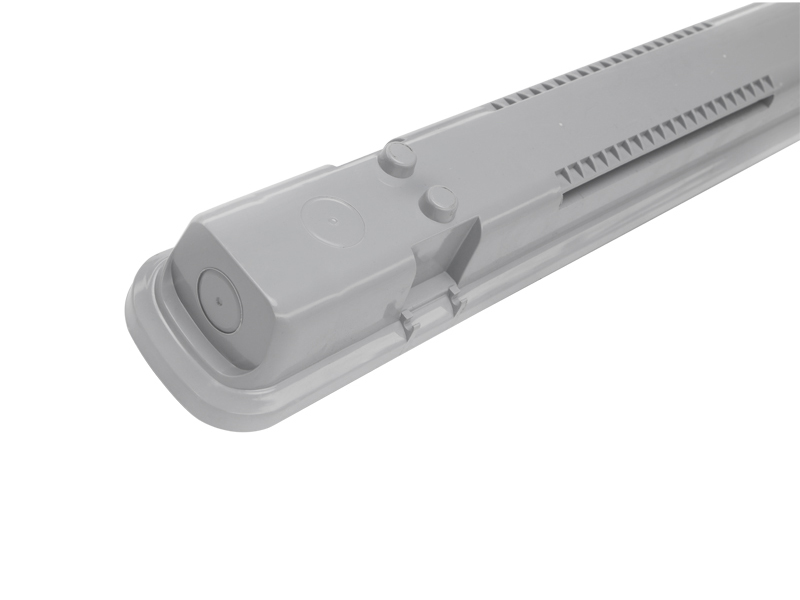

1.Housing: RAL7035 light grey polycarbonate;(ABS for option)

2.Diffuser: polycarbonate, prismatic inside for better light control;(PMMA for option)

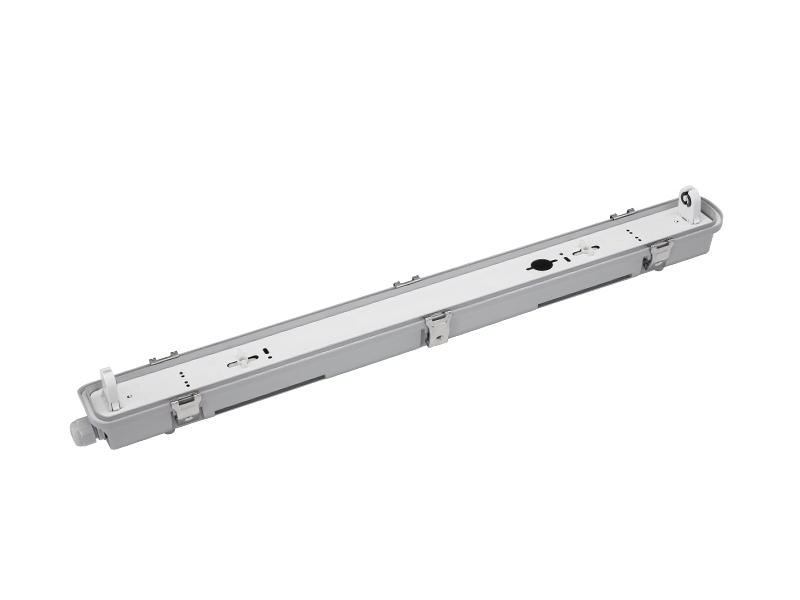

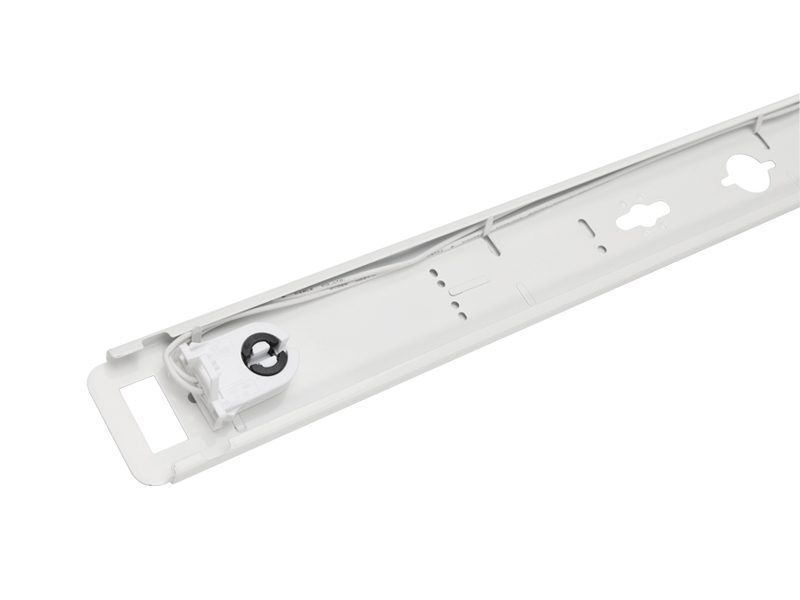

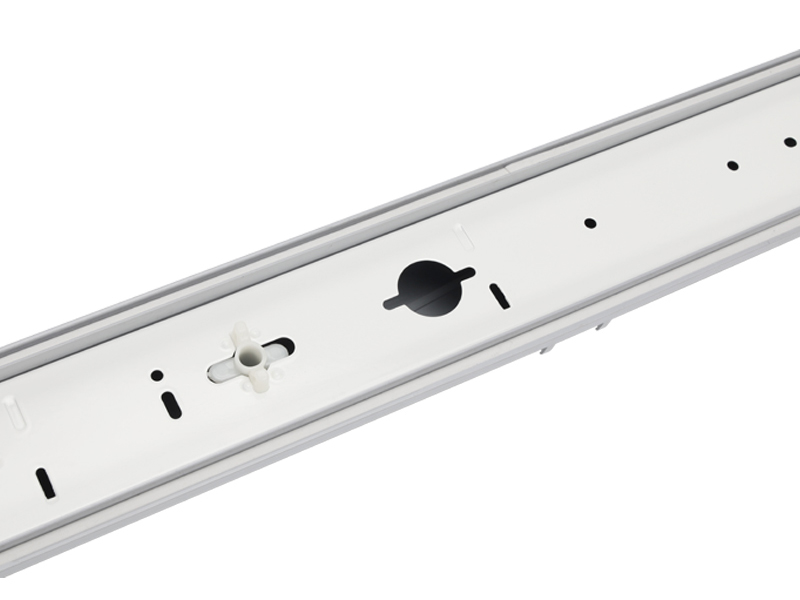

3.Reflector: High quality iron sheet with white power coating

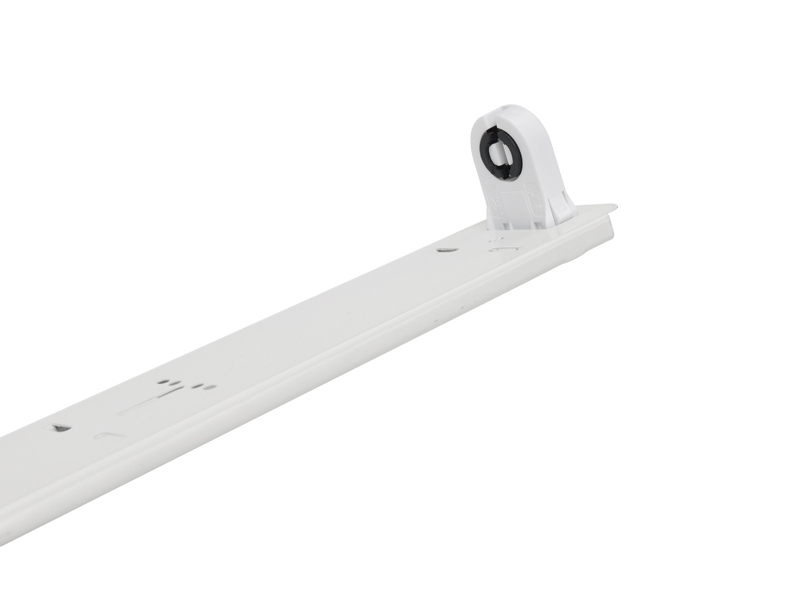

4.Lampholder: T8-G13

5.Terminal block: 3 poles screw type, or 3 poles screwless type;

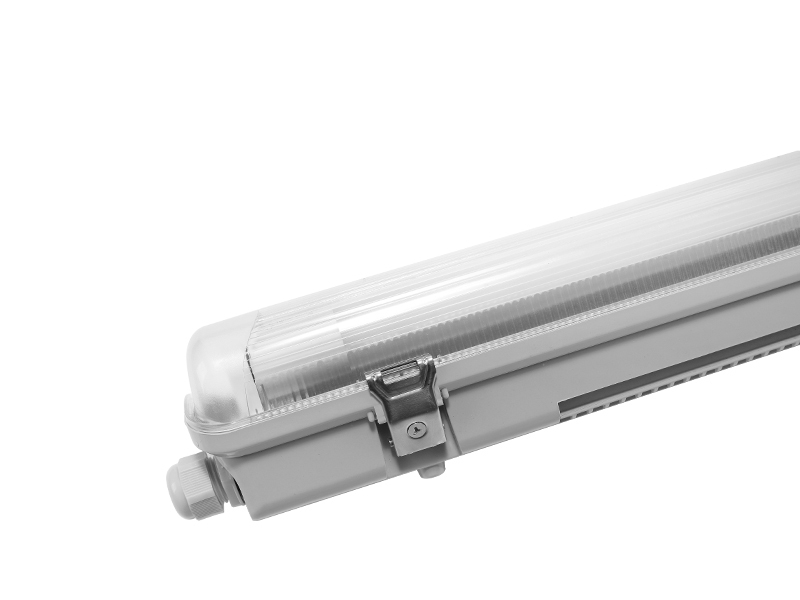

6.Clip: Polycarbonate clips or Stainless clips

7.Mounting bracket: Stainless brackets;

8.Installation: Easy and quick to install under ceillng or on surface

9.Hanger: Plastic gear tray holder connected to the housing for easy maintenace

10.Accessory bag: PG13.5 cable gland., expansion pipe and screws

Applications:

Approved for indoor use or outdoor use which need waterproof, dustproof and moistureproof

Friendly reminder

1. can not be installed on surfaces subject to strong vibrations;

2.when using PC difuser, don't use moderately to strong alkaline or acidic material or solvents or cleaning agents which attack PC material

3. special enviroment using, pls contact us

Contact
  • Model No.

    YH15-106T-B

    YH15-206T-B

    YH15-112T-B

    YH15-212T-B

    YH15-115T-B

    YH15-215T-B

    Lamps

    1x10W T8

    2x10W T8

    1x18W T8

    2x18W T8

    1x24W T8

    2x24W T8

    Clips Q’ty(pcs)

    6

    6

    10

    10

    12

    12

    Product Size(mm)

    665*70*84

    665*95*84

    1275*70*84

    1275*95*84

    1575*70*84

    1575*95*84

    Carton Size(mm)

    700*285*320

    700*315*380

    1310*285*320

    1310*315*290

    1610*285*245

    1610*315*290

    LF (mm)

    330

    330

    840

    840

    1120

    1120

    Q’ty/CTN(pcs)

    12

    12

    12

    9

    9

    9
