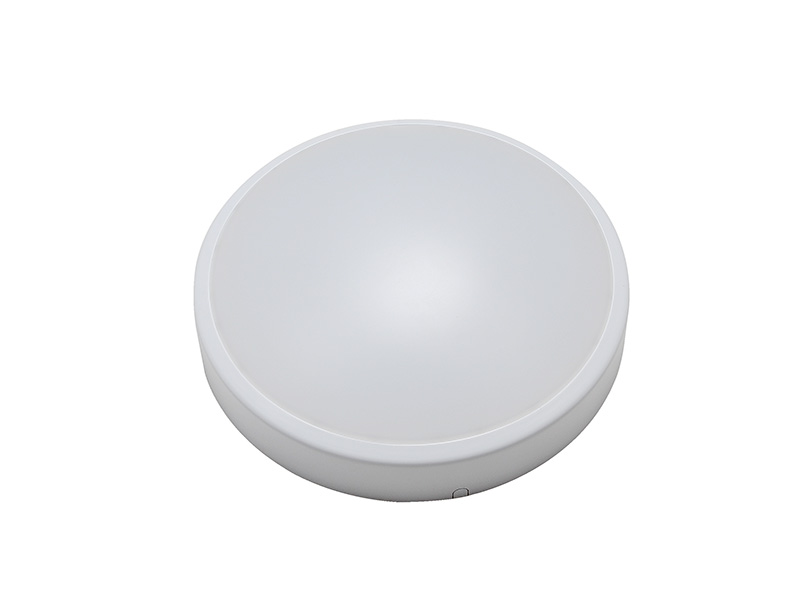

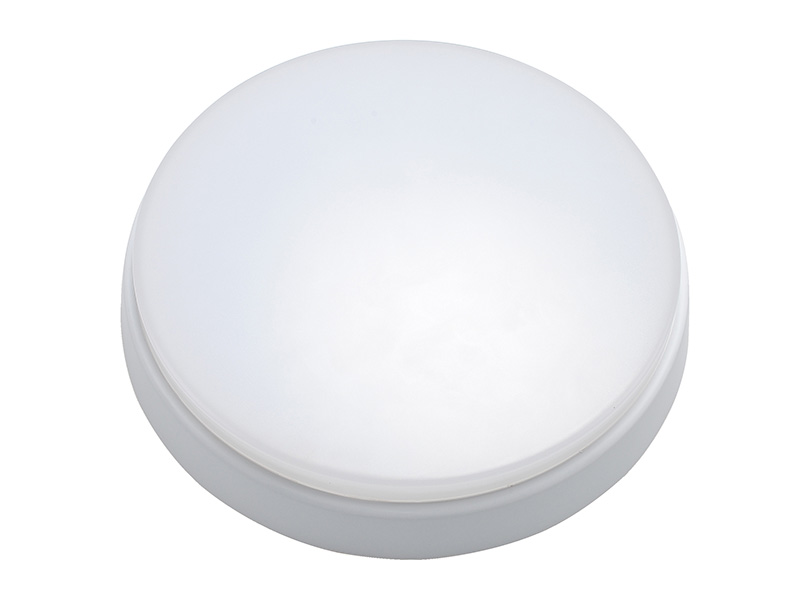

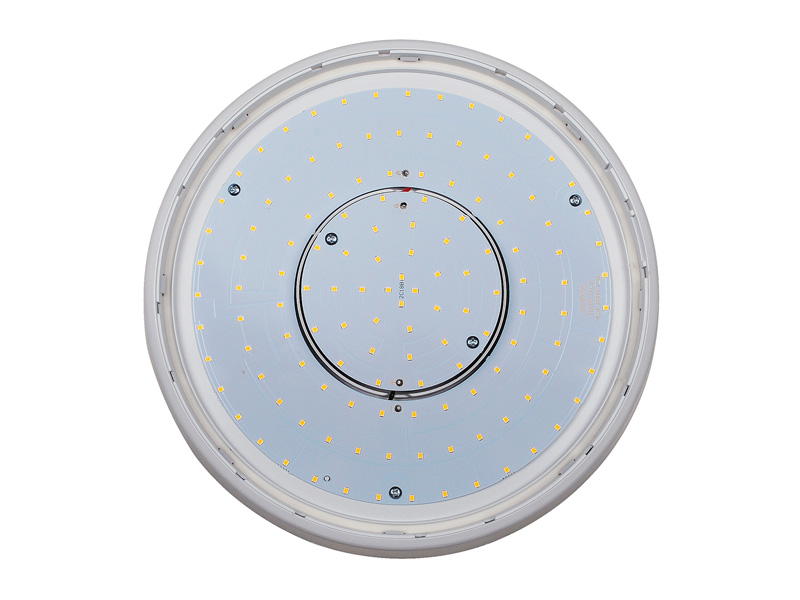

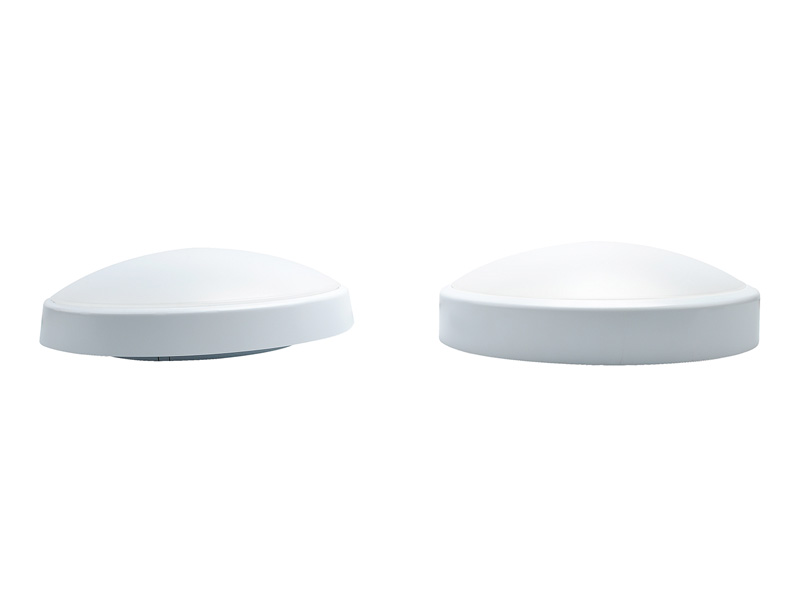

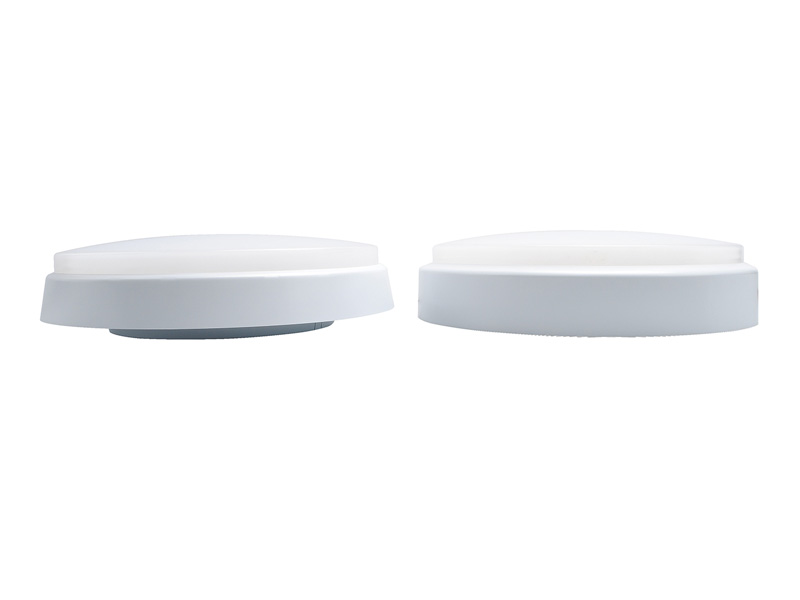

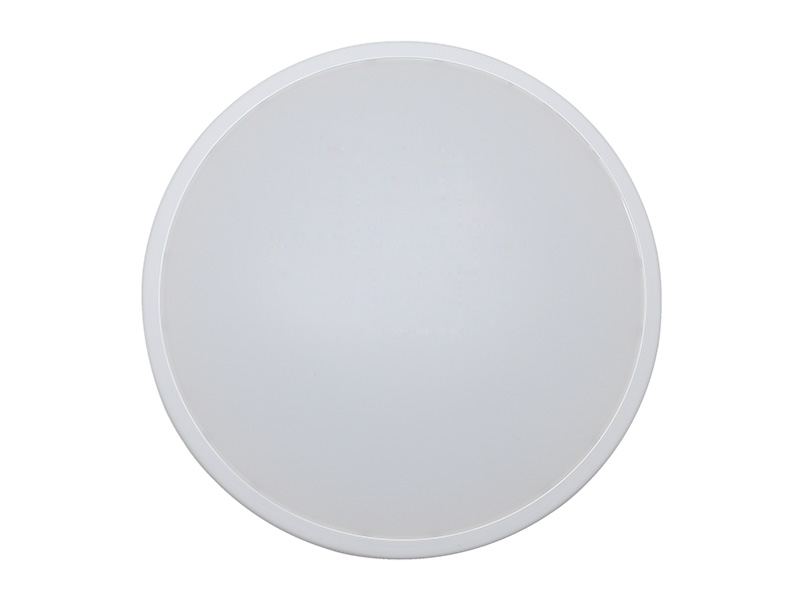

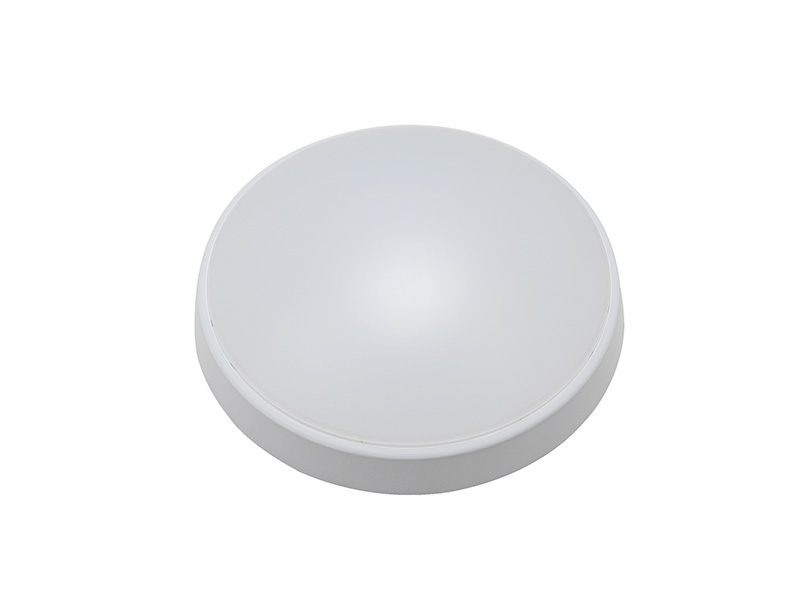

YC01 IP66 LED Ceiling Lamp

Contact
  • Model No

    YC01-14W-300HHRA

    YC01-14W-300LHRA

    YC01-14W-300HLRA

    YC01-14W-300LLRA

    YC01-20W-300HHRA

    YC01-20W-300LHRA

    YC01-20W-300HLRA

    YC01-20W-300LLRA

    Size

    Φ300x89

    Φ300x89

    Φ300x78

    Φ300x78

    Φ300x89

    Φ300x89

    Φ300x78

    Φ300x78

    LF(mm)

    165

    LED type

    SMD2835/3V/150mA/0.5W

    Input Voltage/Frequency

    220V-240V 50Hz/60Hz

    Rated power±10%(W)

    14W

    14W

    14W

    14W

    20W

    20W

    20W

    20W

    Input currenton(A)

    0.065A

    0.065A

    0.065A

    0.065A

    0.090A

    0.090A

    0.090A

    0.090A

    Power factor

    0.91

    0.95

    Lumen

    1400

    1400

    1400

    1400

    2000

    2000

    2000

    2000

    CCT

    2700-6500K

    CRI

    >80

    Angel

    120°

    Material

    PC Diffuser + PC Base

    Operating Enviornment

    Indoor / Outdoor

    EMC

    Satisfying EMC conduction / EMC radiation / EMC surge standrad

    Working temperature

    -15℃ - +35℃

    Store Enviornment

    -25℃ - +60℃

    Lifetime (hr)

    >30000h

    Innerbox size(mm)

    303x303x98

    303x303x87

    303x303x98

    303x303x87

    carton size (mm)

    623x415x402

    623x370x402

    623x415x402

    623x370x402

    Qty/ctn (pcs)

    8
