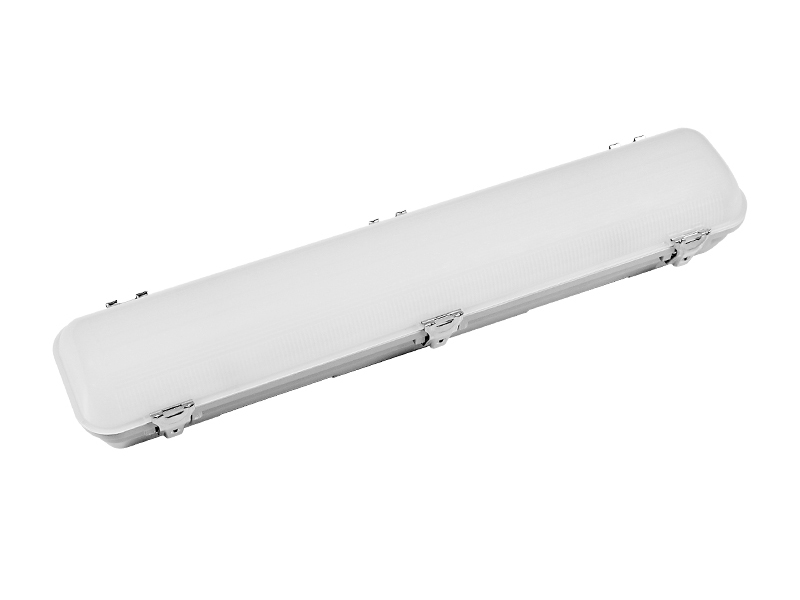

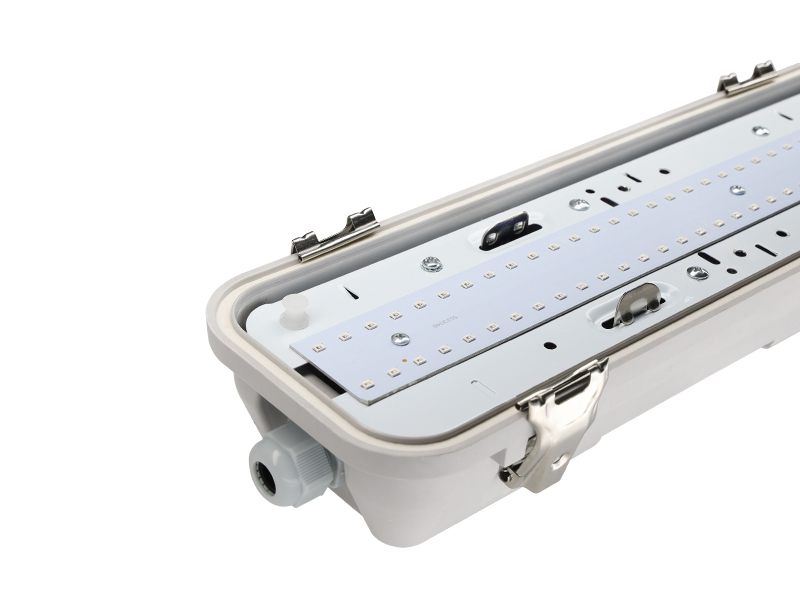

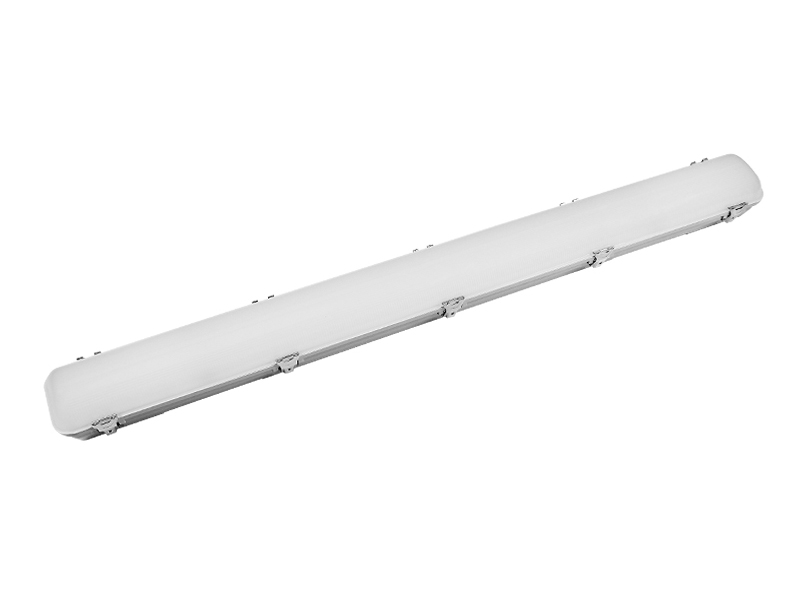

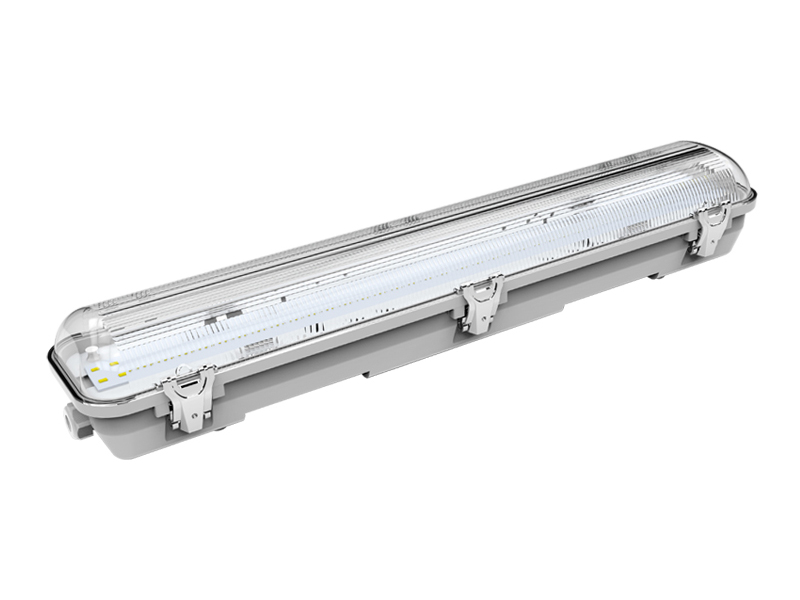

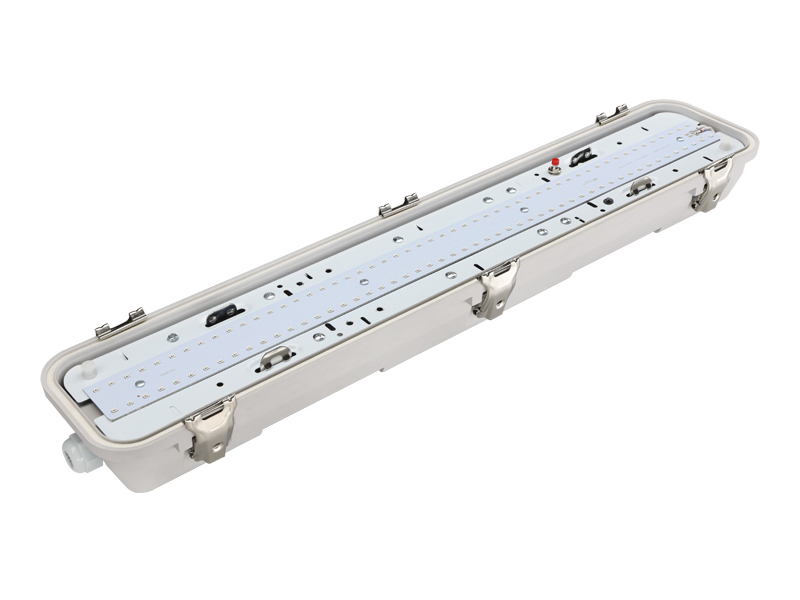

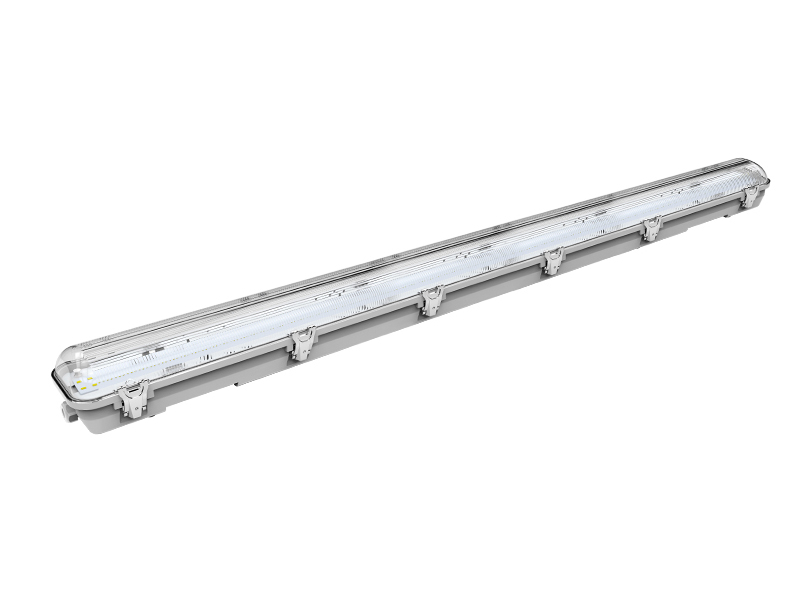

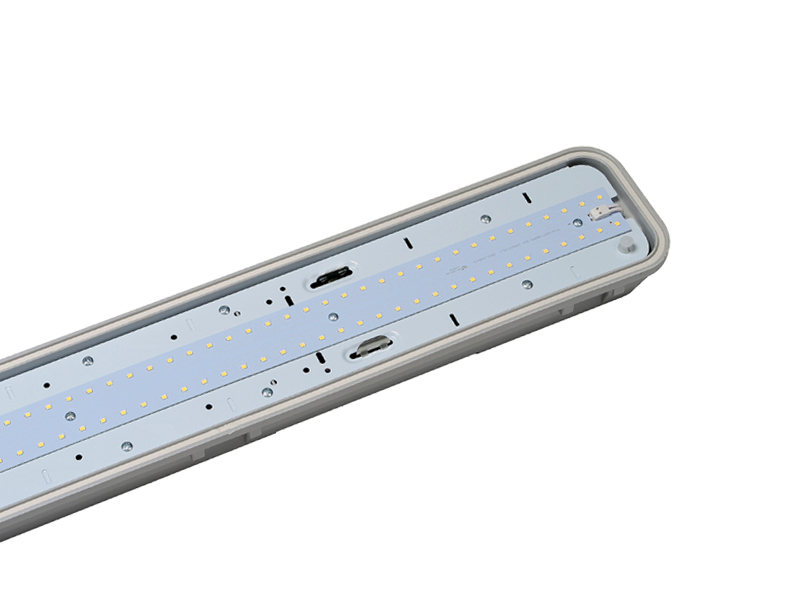

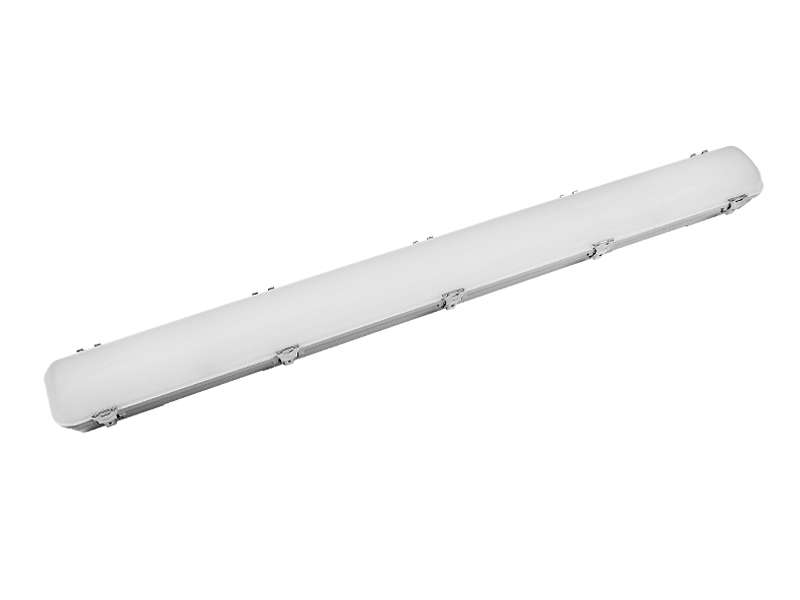

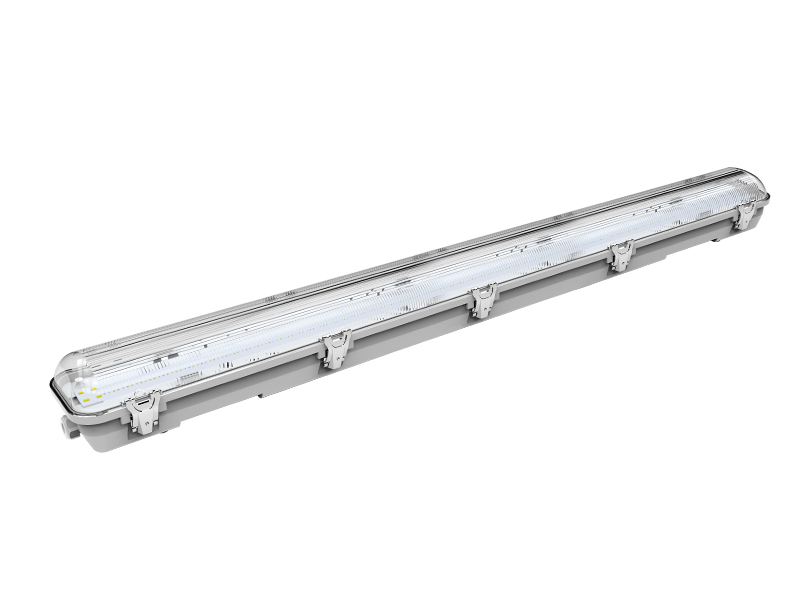

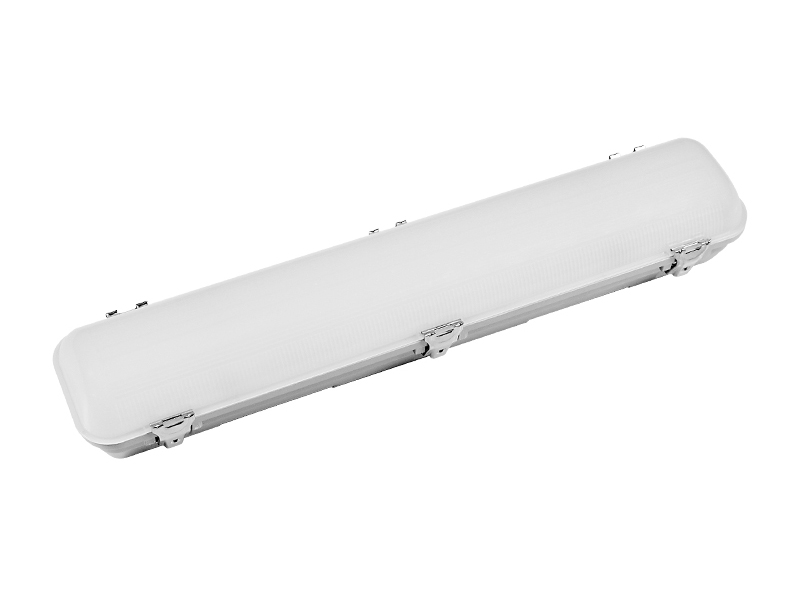

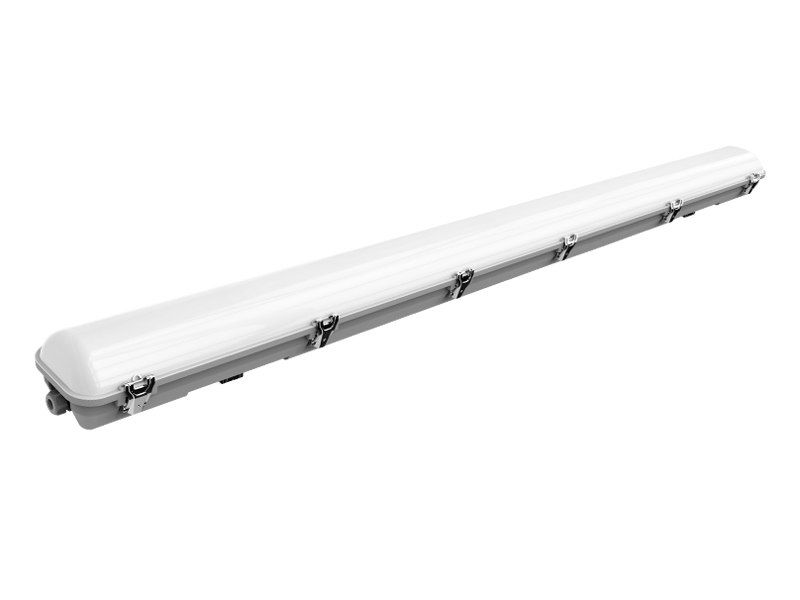

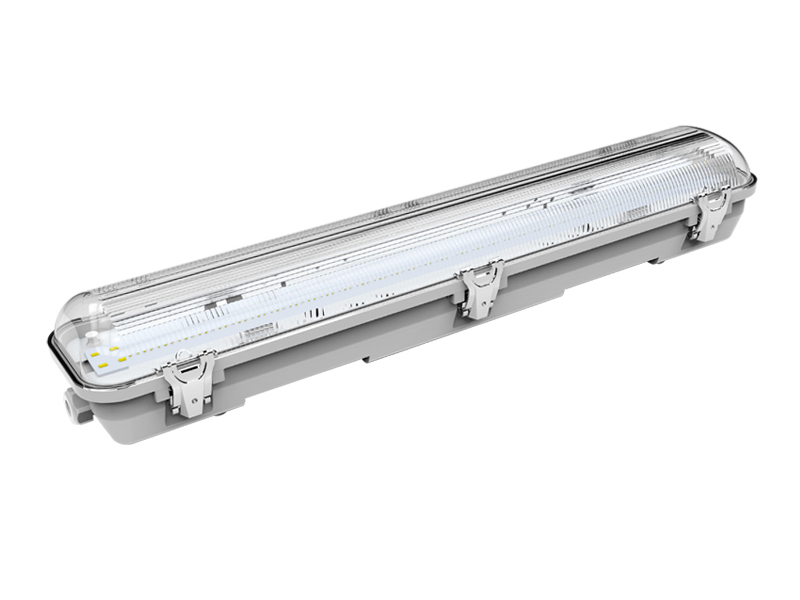

A high performance, corrosion resistant IP65 proof range.Made from materials selected to withstand aggressive atmospheres laden with salts,acids and mineral oils.
CorrosionForce is constructed from materials that make it suitable for locations that are exposed to liquids or atmosphrers that contain potentially corrosive chemicals.Typical areas include food processing areas or milk dairies but also in areas where specialised cleaning agents are used.
|
Model No. |
YL16GRP-15W-600 |
YL16GRP-24W-600 |
YL16GRP-20W-1200 |
YL16GRP-36W-1200 |
YL16GRP-50W-1200 |
YL16GRP-30W-1500 |
YL16GRP-50W-1500 |
YL16GRP-65W-1500 |
|
System Power(W). |
15W |
24W |
20W |
36W |
50W |
30W |
50W |
65W |
|
Input Voltage(V) |
220-240V 50/60HZ |
220-240V 50/60HZ |
220-240V 50/60HZ |
220-240V 50/60HZ |
220-240V 50/60HZ |
220-240V 50/60HZ |
220-240V 50/60HZ |
220-240V 50/60HZ |
|
Lumen (125lm/W) |
18751m |
30001m |
25001m |
45001m |
62501m |
37501m |
62501m |
81251m |
|
CCT (K) |
2700-6500 K |
2700-6500 K |
2700-6500 K |
2700-6500 K |
2700-6500 K |
2700-6500 K |
2700-6500 K |
2700-6500 K |
|
CRI |
>80 |
>80 |
>80 |
>80 |
>80 |
>80 |
>80 |
>80 |
|
Beam Angel(°) |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
|
IP Rate |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
GWT |
850°C |
850°C |
850°C |
850°C |
850°C |
850°C |
850°C |
850°C |
|
Life time |
50,000 hours |
50,000 hours |
50,000 hours |
50,000 hours |
50,000 hours |
50,000 hours |
50,000 hours |
50,000 hours |
|
Average ambient temp. |
25°C |
25°C |
25°C |
25°C |
25°C |
25°C |
25°C |
25°C |
|
Operating temp range. |
-15°C+35°C |
-15°C+35°C |
-15°C+35°C |
-15°C+35°C |
-15°C+35°C |
-15°C+35°C |
-15°C+35°C |
-15°C+35°C |
|
Operating Humidity(°C) |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
|
Product Size(mm) |
600x100 x123mm |
600x100 x123mm |
1200x100 x123mm |
1200x100 x123mm |
1200x100 x123mm |
1500x100 x123mm |
1500x100 x123mm |
1500x100 x123mm |
|
Carton Size(mm) |
630x270 x220mm |
630x270 x220mm |
1230x270 x220mm |
1230x270 x220mm |
1230x270 x220mm |
1530x270 x220mm |
1530x270 x220mm |
1530x270 x220mm |
|
Qty/CTN(pcs) |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
