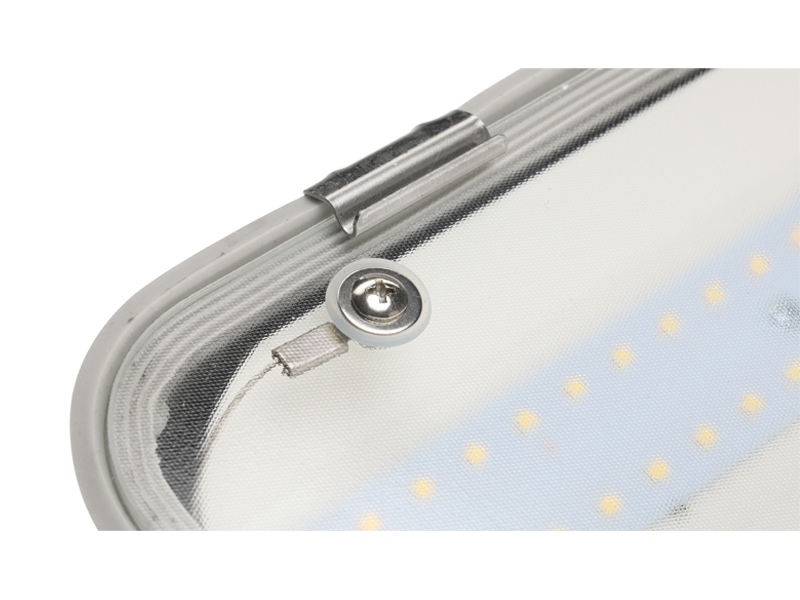

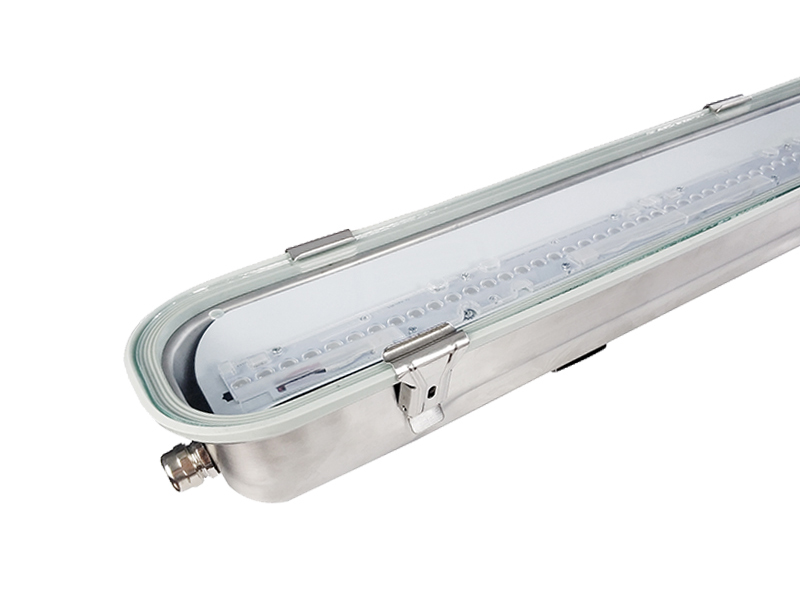

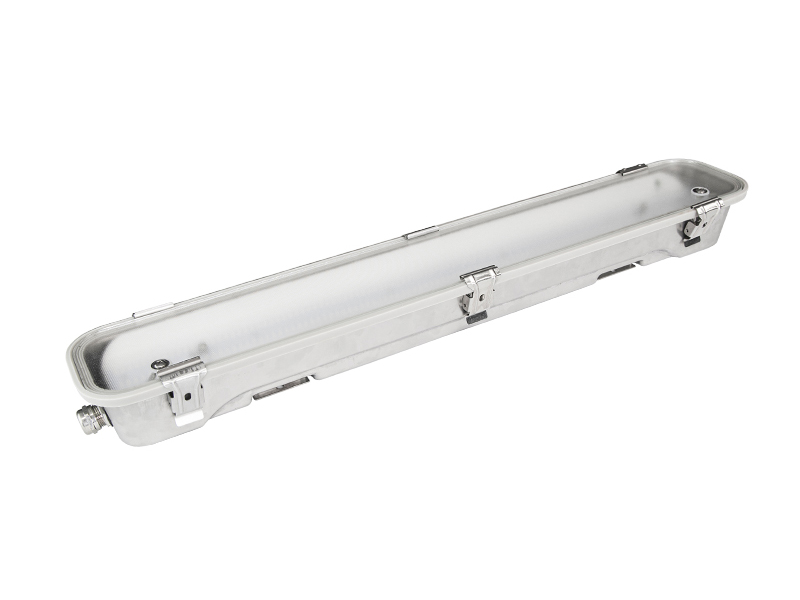

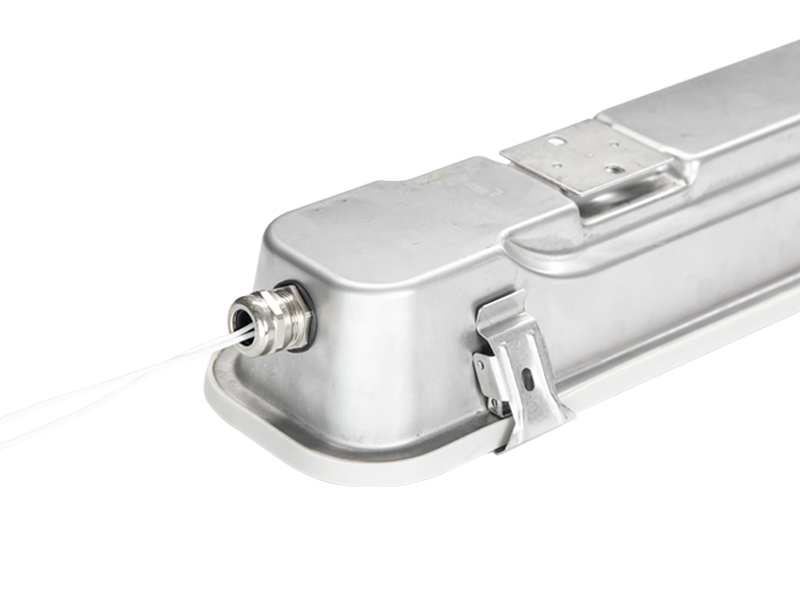

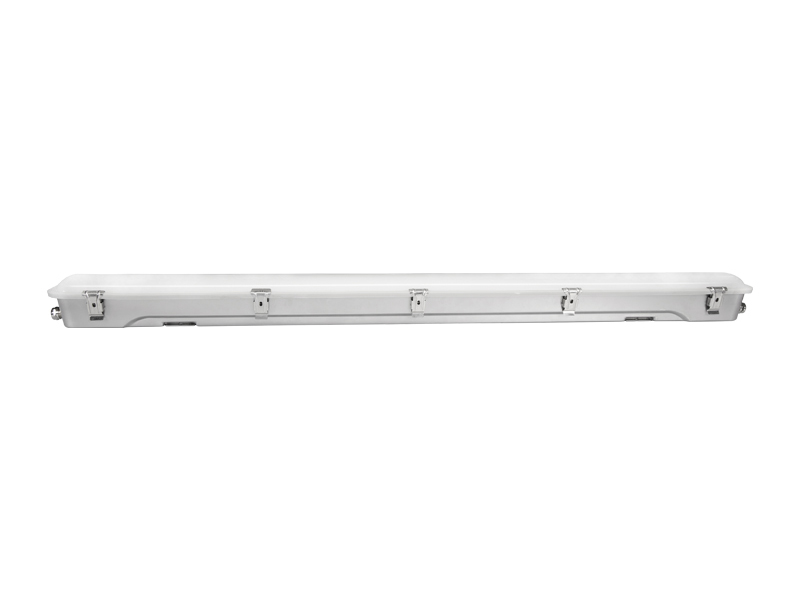

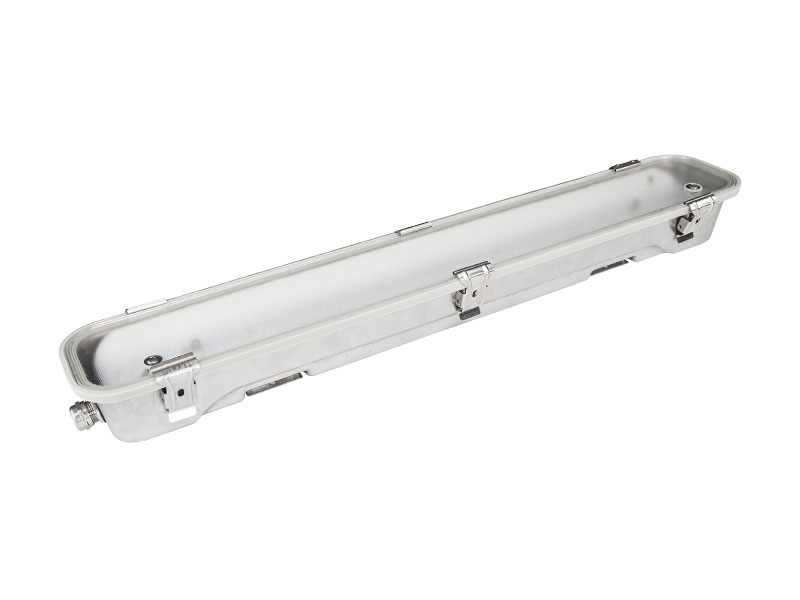

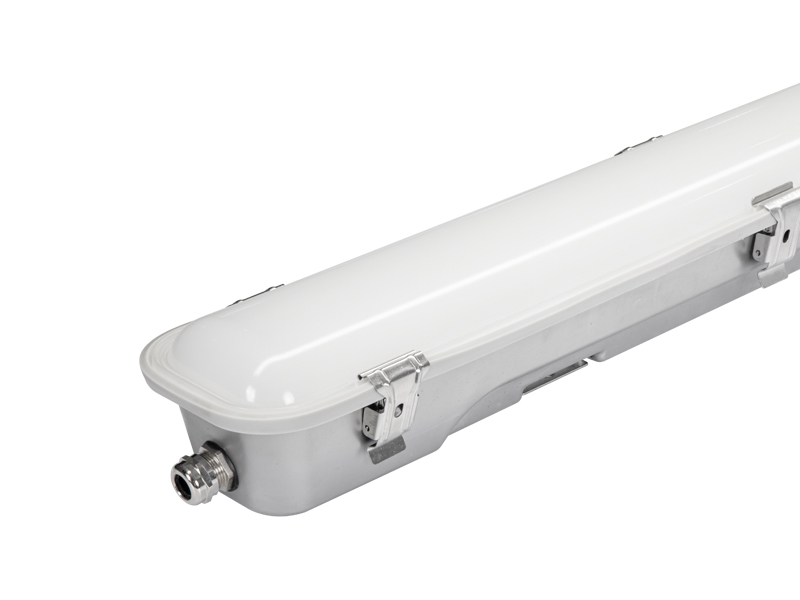

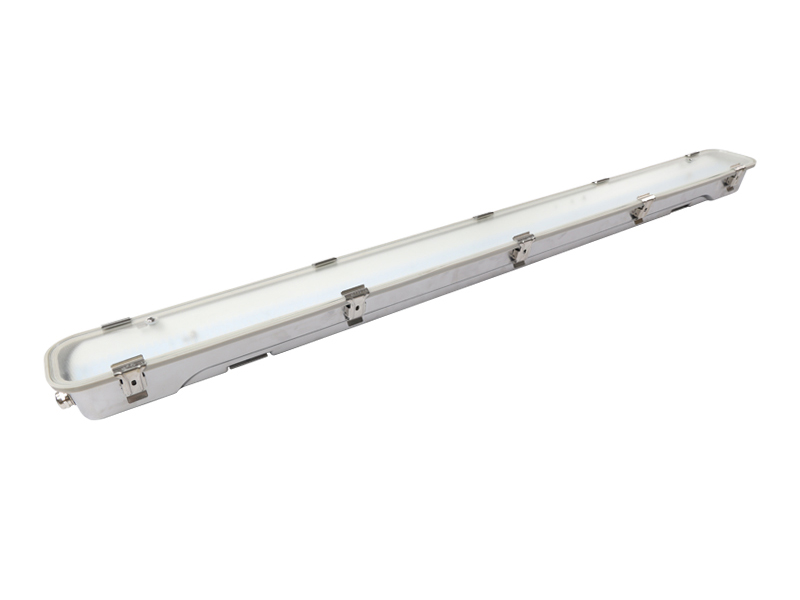

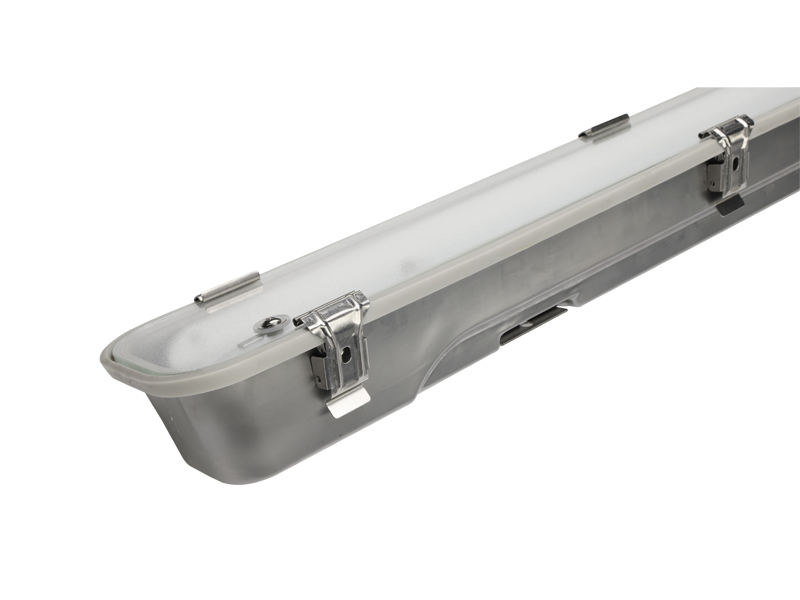

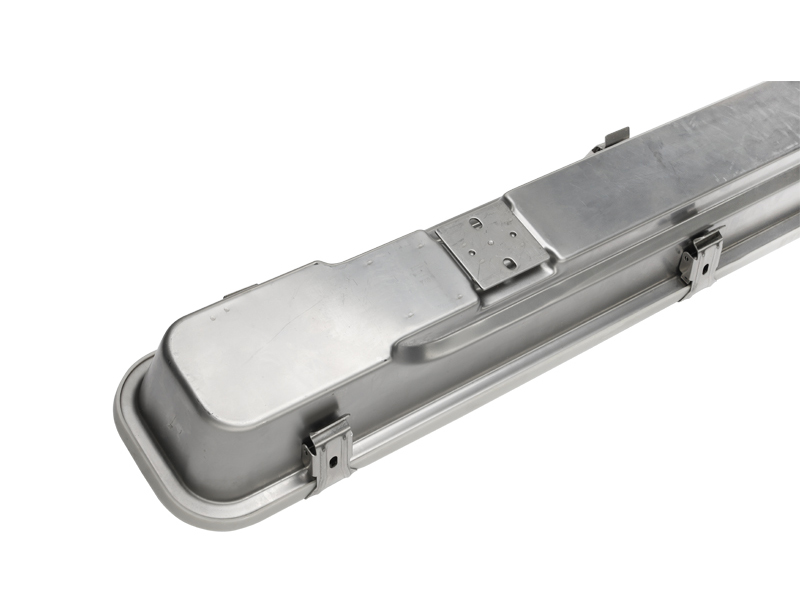

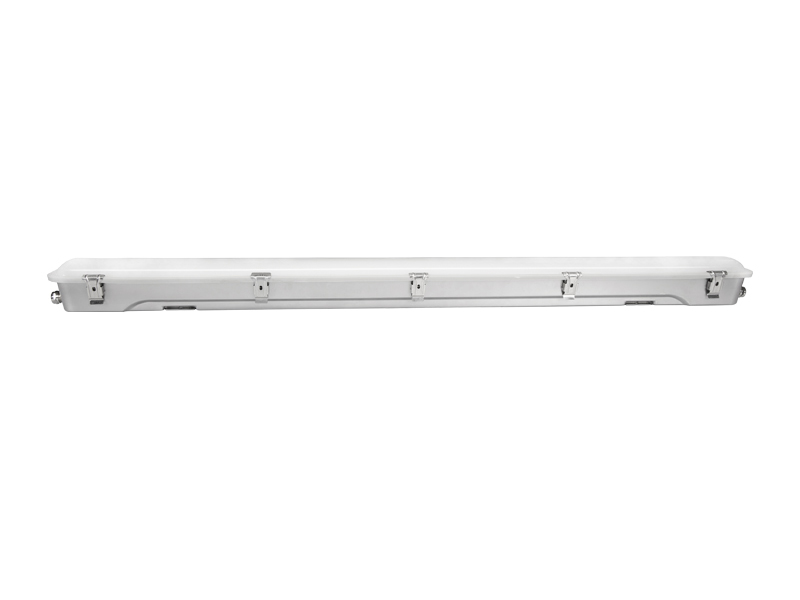

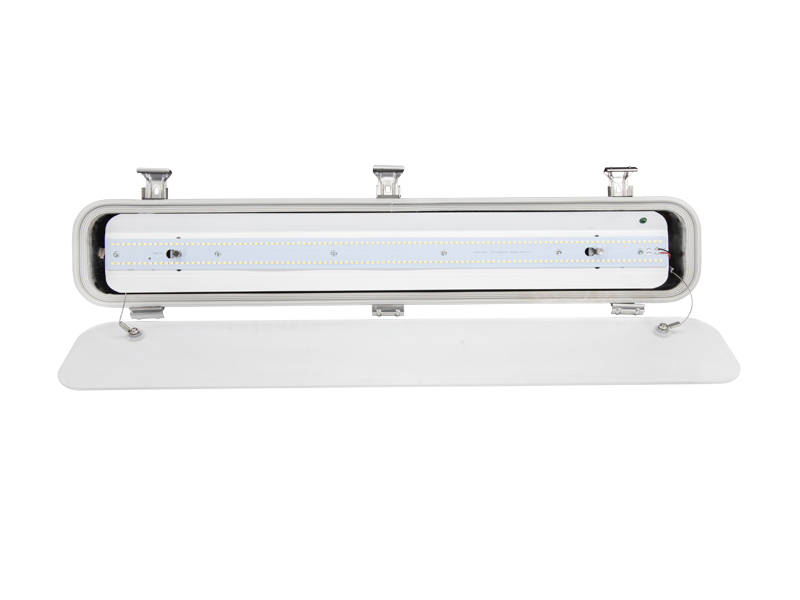

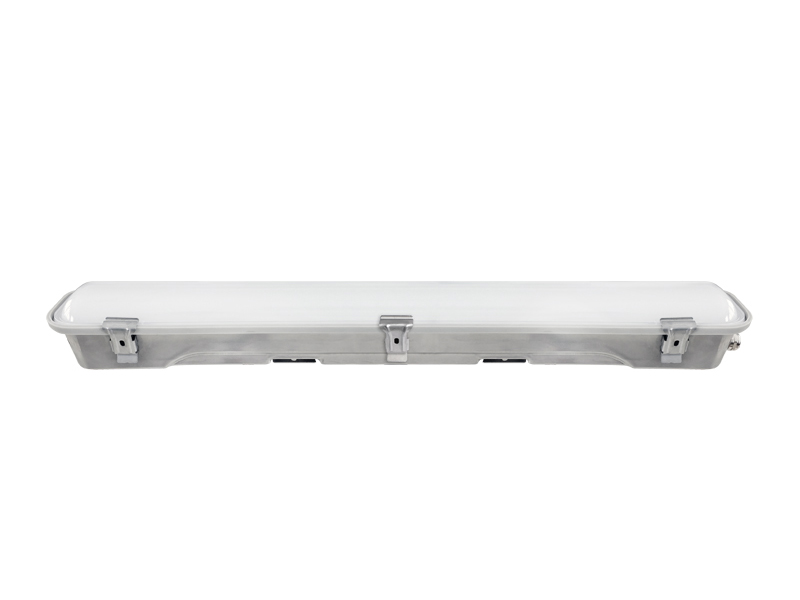

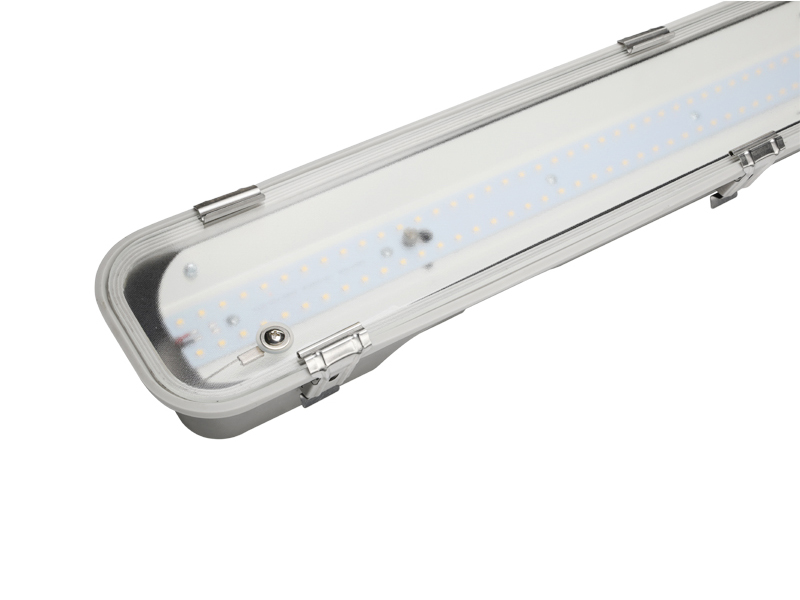

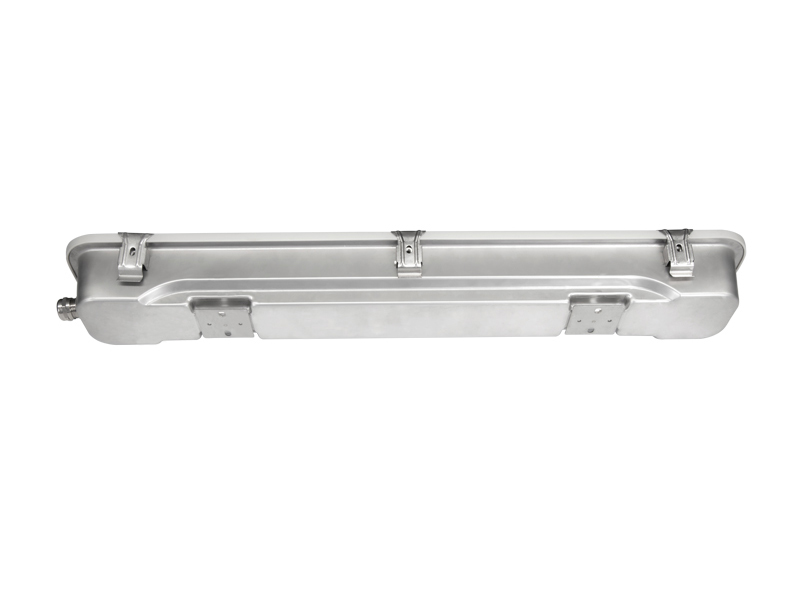

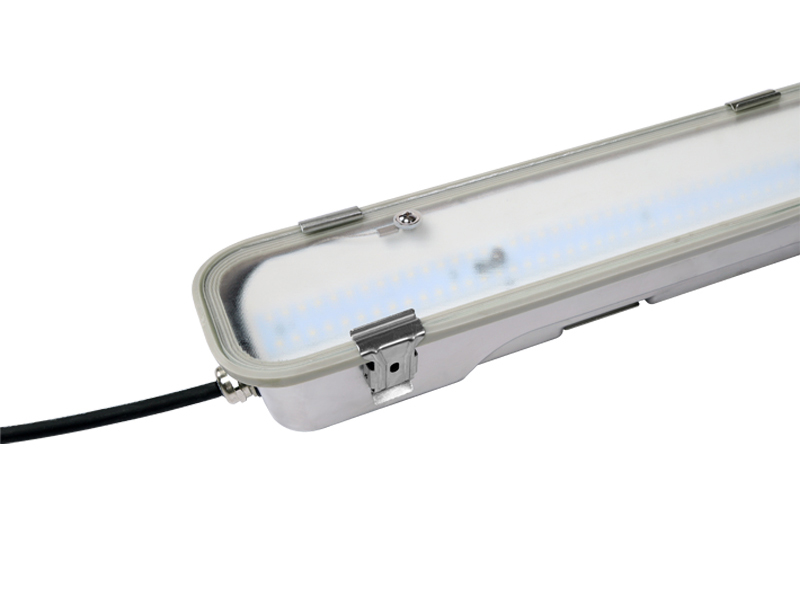

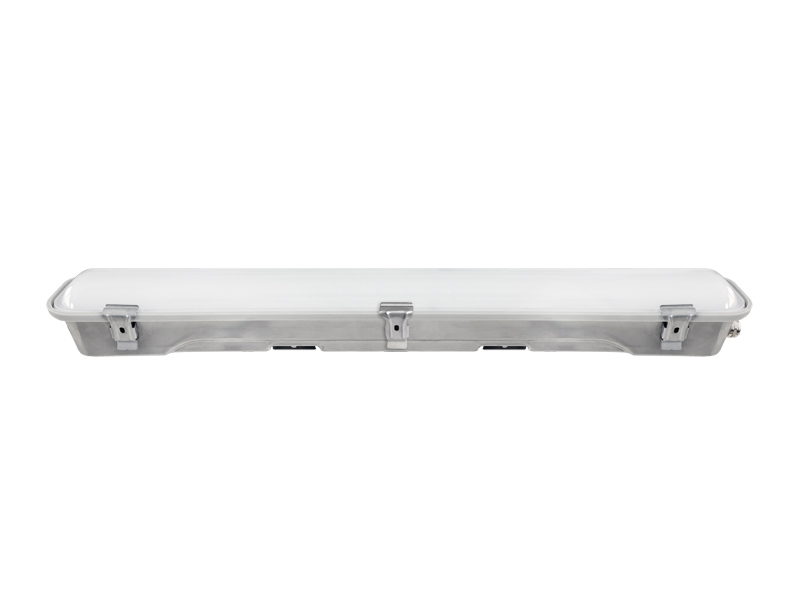

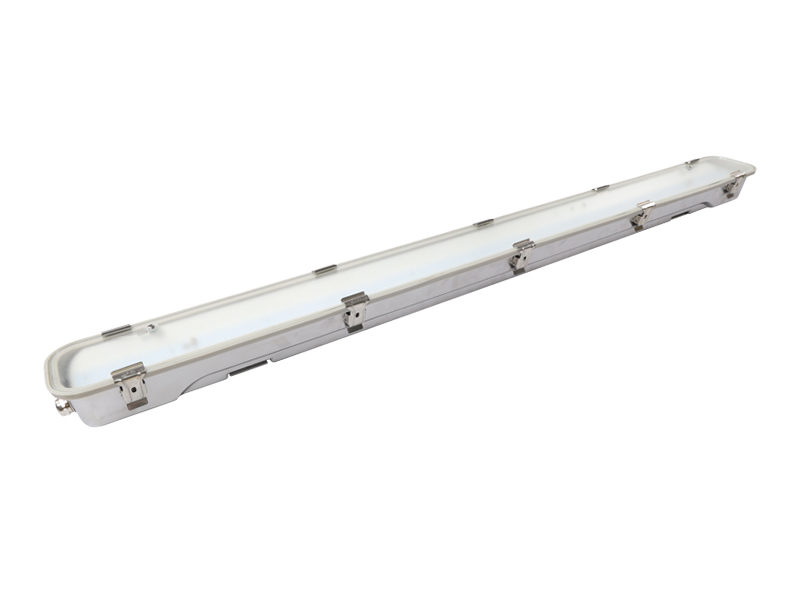

YL12 IP65 LED Stainless steel Waterproof Lamp

Product Description:

1. Housing: Stainless steel

2. Diffuser: Tempered glass (clear or frosted) 60 90 120 Beam Angle

3.Other characteristics: pollution free, low power consumption, high luminous efficiency & IP65;

4.High-low impact, high humidity environmental tests

Features:

√ Suitable for extreme temperatures & high humidity outdoor environments;

√ Resistance to impact, seismic activities, and strong ultraviolet & infrared radiation;

√ Over 70% energy savings compared to conventional lights with similar lumen output;

√ Provides 50,000 hours lifetime & 5 years warranty

Applications:

Manufacturing Plants, Warehouses, Depots, Toll Booths, Halls, Workshop Areas and other high ceiling areas (Indoors and Outdoors)



Contact
  • Department: R&D

    Product name: IP65 Waterproof luminaire

    Model No

    YL12-25W-600

    YL12-35W-1300

    YL12-50W-1300

    YL12-45W-1600

    YL12-62W-1600



    1.Technical Paramenters (Test Conditions:25℃/55-%60%Humidity)

    Item Code

    YL12-25W-600

    YL12-35W-1300

    YL12-50W-1300

    YL12-45W-1600

    YL12-62W-1600

    Power(W)+/-10%

    25W

    35W

    50W

    45W

    62W

    Input Voltage/Frequency

    AC 220-240V 50/60Hz

    Installation

    Easy and quick to install under celling or on surface

    Housing/Diffuser

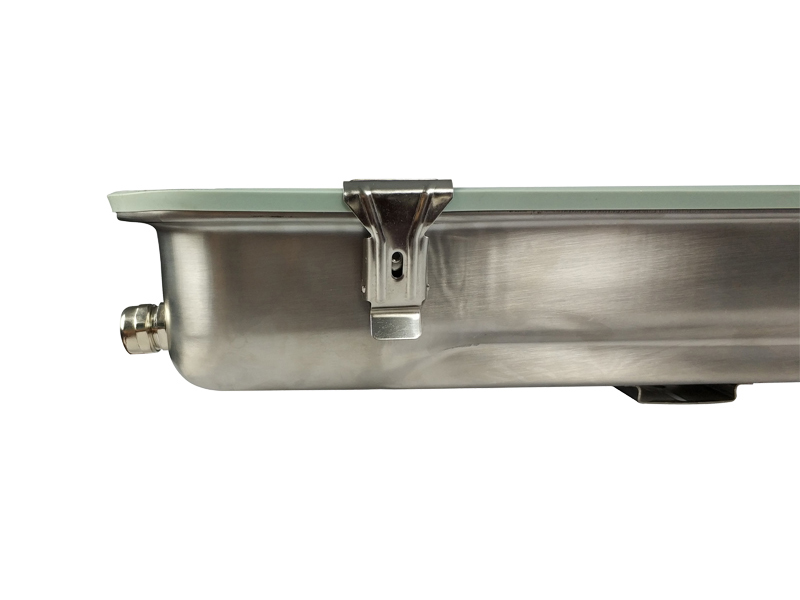

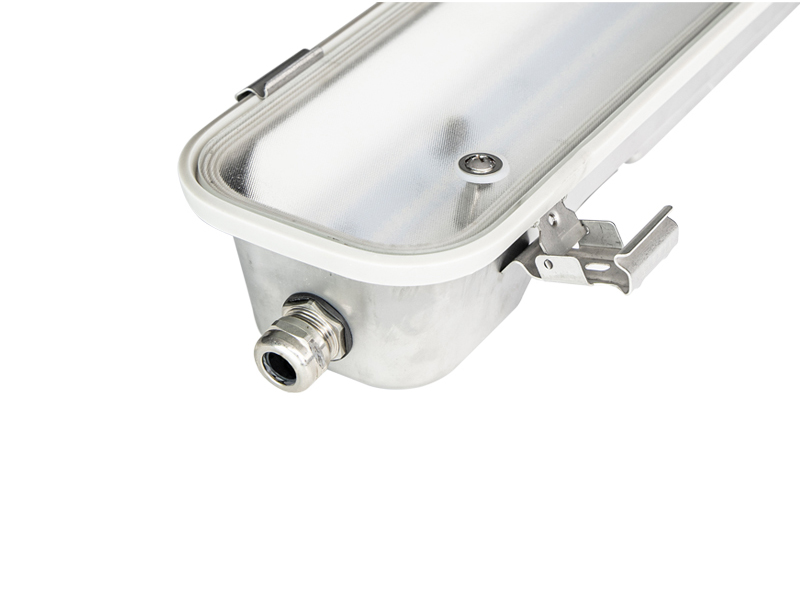

    304 stainless steel housing,Tempered glass diffuser.

    Driver

    Osram / Philips / Tridonic / Chinese local brand

    LED Brand

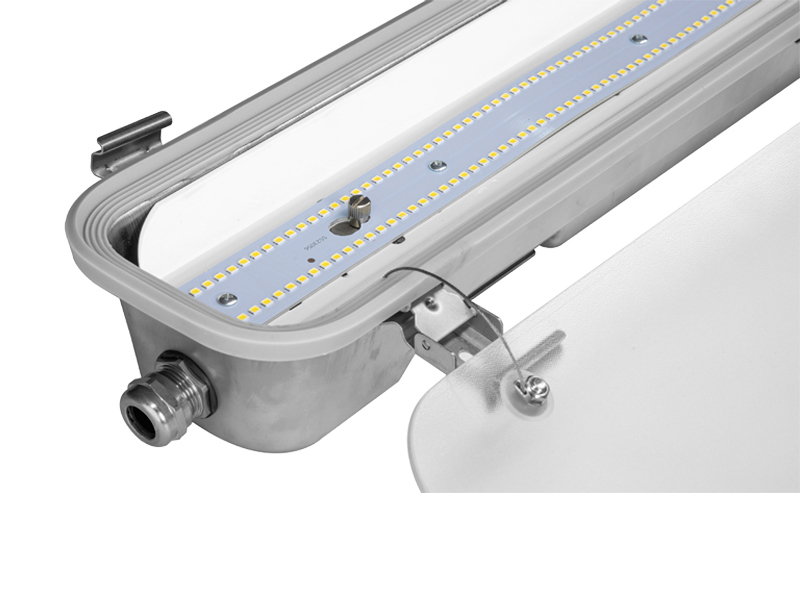

    SMD2835  / SMD3030

    CCT

    2700-6500K (ANSI C78.377)

    CRI

    > 80

    5000K/Opal Diffuser

    Light Output(+/- 3%)

    3,500 lm

    4,900 lm

    7,000 lm

    6,300 lm

    8,680 lm

    Power factor

    PF>0.9

    Beam Angel

    90° / 120°

    IP Rating

    IP65

    Warranty

    5 Year

    Operating temp range

    -20 to +40 or    -35 to +50

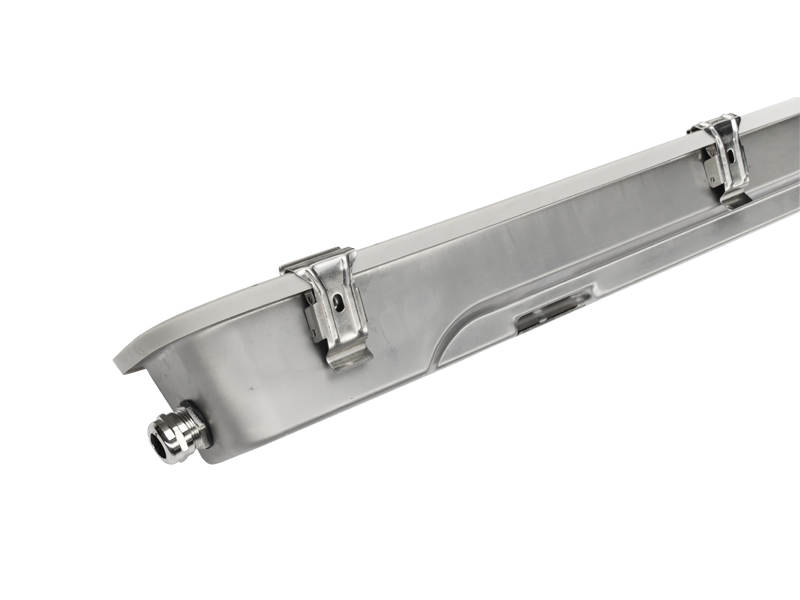

    Clips Qty (pcs)

    6

    10

    10

    12

    12

    Product Size (mm)

    670*110*65

    1280*110*65

    1590*110*65
