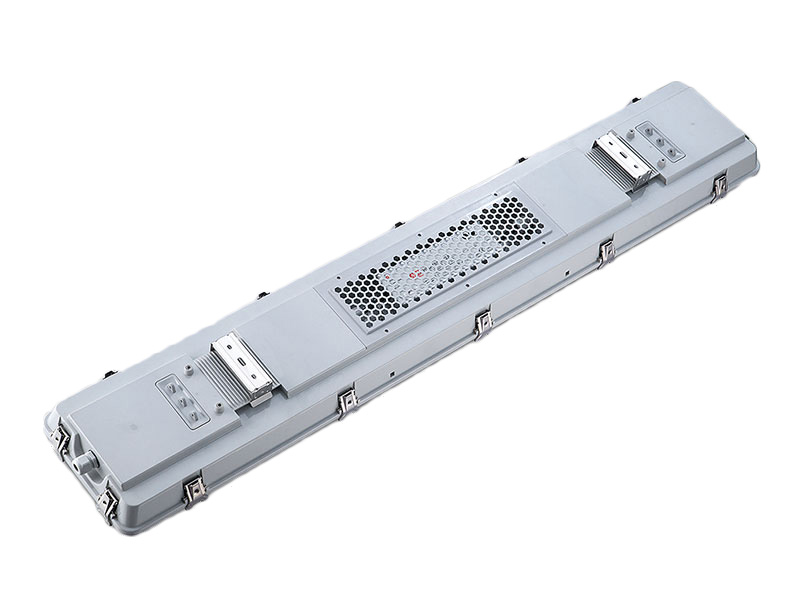

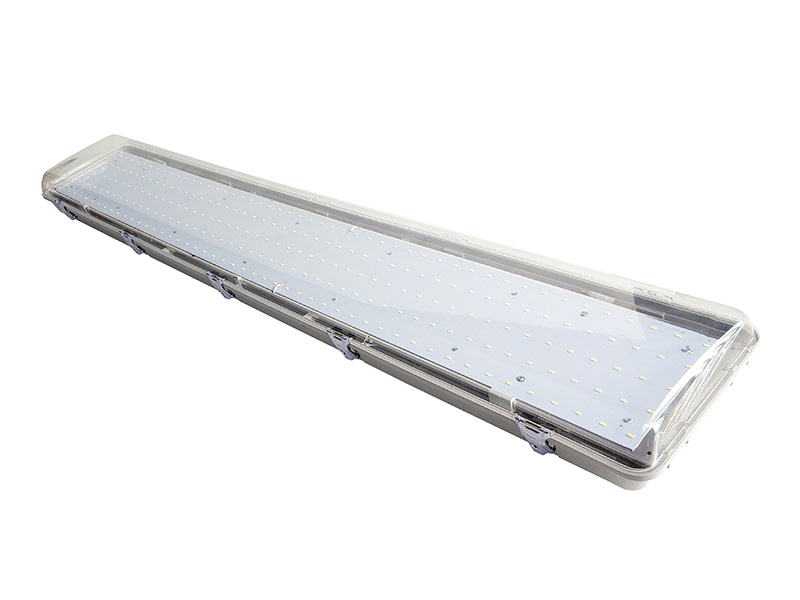

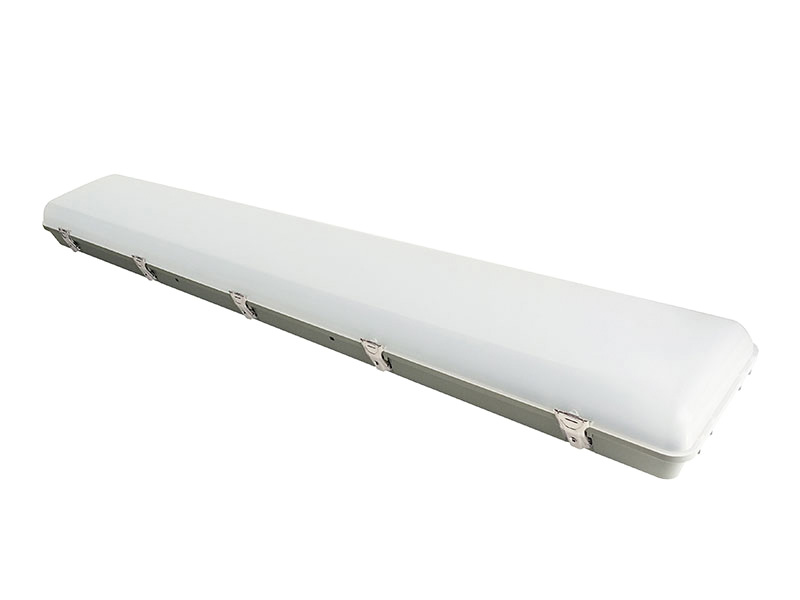

HP IP65 LED Linear High Bay

Product description

1.Voltage: 100-277V or 200-480v for option 50/60Hz

2.IP Rate: IP65 Class I

3.Housing: Injection moulded, high mechanical resistant, RAL7035 light grey polycarbonate;

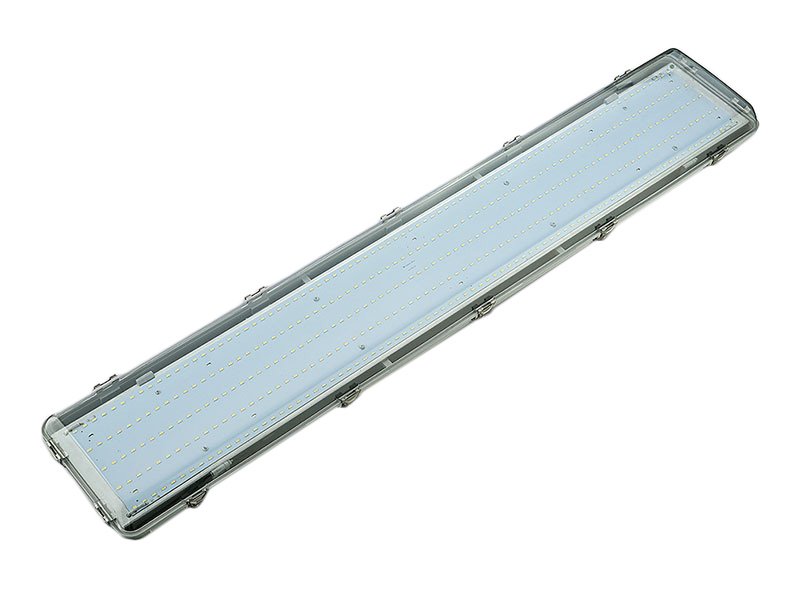

4.Diffuser: Injection moulded,UV stabilised transparent polycarbonate,Of>al or transparent diffuser; ,

5.Reflector: Aluminum plate+Aluminum PCB;

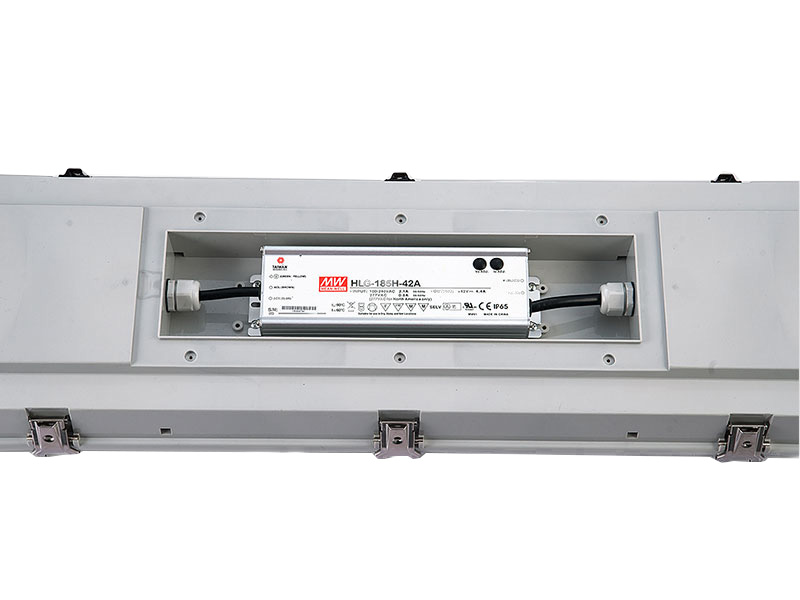

6.LED Driver: MEANWELL brand constant current LED driver;

7.Terminal block : 3poles screw type or IDEAL brand connector

8.LED: SMD5630, SAMSUNG

9.Ra:>80

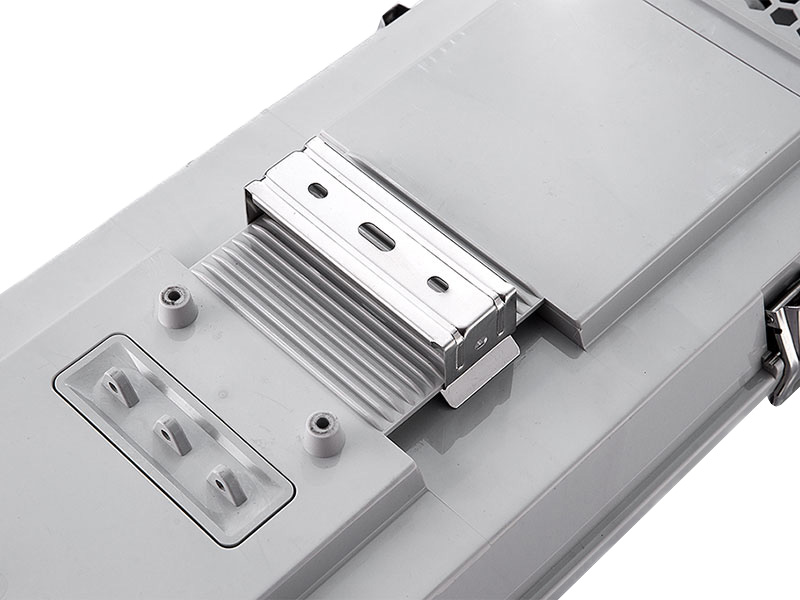

10.Mounting bracket: Stainless brackets;

11.Installation:Easy and quick to install under ceiling or hanging with 1 m suspension chain

12.Accessory bag: Rubber grommet, PG13.5 cable gland, expansion pipe and screws

13.Guaranty: 5 years

Applications:

Approved for indoor use or outdoor use which need waterproof.dustproof and moistureproof

Friendly reminder:

1. must not be installed on surfaces subject to strong vibratioins; must not be installed

2. when using PC diffuser, don't use moderately to strong alkaline or acidic material or solvents or cleaning agents which attack PC material

3.special enviroment using, pis contact us

Contact
  • Model No.

    Total

    Power

    LEDQty

    SMD2835

    Ra Lumen

    Colour

    Temperature

    Product Size L×W×H(mm) LF(mm)

    Qty/CTN

    (PCS)

    Carton Size (mm)
    HP4X100WXX 100W 240 Ra>80 11000

    3000K

    4000K

    5000K

    6000K

    1265×240×110 760 2 1300×255×240
    HP4X120WXX 120W 300 Ra>80 13200
    HP4X150WXX 150W 360 Ra>80 17000
    HP4X100WXXD 100W 528 Ra>80 12000 1265×320×110 1300×360×300
    HP4X120WXXD 120W 616 Ra>80 14400
    HP4X150WXXD 150W 770 Ra>80 18000
