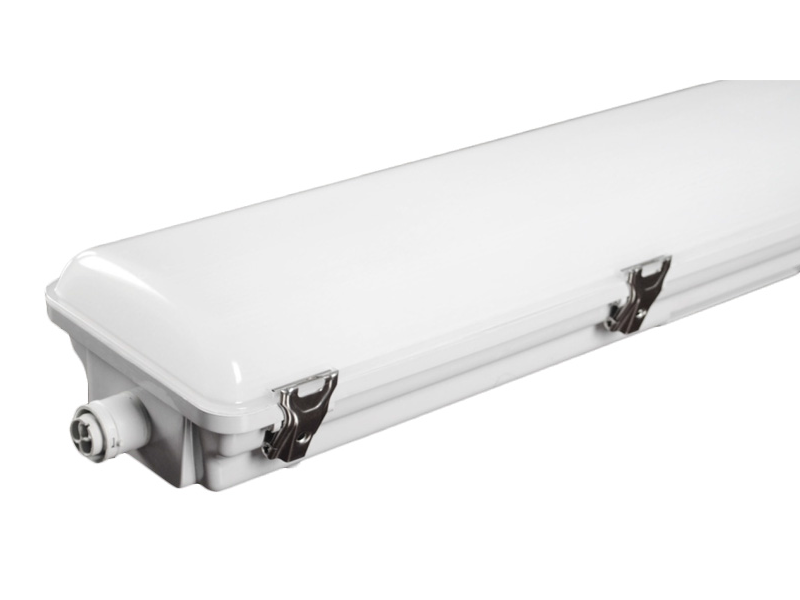

NWP 8FT LED VAPOR-PROOF LUMINAIRE

Contact

SPECIFICATION

Model No.	NWP8X80V1X	NWP8X100V1X	NWP8X120V1X	NWP8X150V1X	NWP8X80V2X	NWP8X120V2X	NWP8X150V2X
Input Voltage(V)	100-240/277V	100-240/277V	100-240/277V	100-240/277V	200-480V	200-480V	200-480V
Frenquency(Hz)	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60Hz	50/60HZ	50/60Hz
Efficiency (130lm/W) Opal lens(±3%)	10400lm	13000lm	15600lm	19500lm	10400lm	15600lm	19500lm
System Power(W).	80W	100W	120W	150W	80W	120W	150W
CCT(K)	2700K, 3000K, 4000K, 5000K, 5700K
LED brand	EVERLIGHT2835	EVERLIGHT2835	EVERLIGHT2835	EVERLIGHT2835	LG 2835	LG 2835	LG 2835
LED Qty (pcs)	384	484	616	792	384	616	792
Driver	LPF-90D-30	HLG-100H-36B	HLG-120H-36B	HLG-150H-36B	HVG-100H-30B	HVG-150H-42B	HVG-150H-36B
Dimming	1-10V	1-10V	1-10V	1-10V	1-10V	1-10V	1-10V
Emergency	NO	NO	NO	NO	NO	NO	NO
Sensor	NO	NO	NO	NO	NO	NO	NO
CRI	>80	>80	>80	>80	>80	>80	>80
Beam Angel(°)	120°	120°	120°	120°	120°	120°	120°
IP Rate	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Life time	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours
Average ambient temp.	25°C	25°C	25°C	25°C	25°C	25°C	25°C
Operating temp range.	-40°C ~+35°C	-40°C ~+35°C	-40°C ~+35°C	-40°C ~+35°C	-40°C 〜+35°C	-40°C ~+35°C	-40°C ~+35°C
Operating Humidity(°C)	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
Product Size(mm)	2536x160x110mm	2536x160x110mm	2536x160x110mm	2536x160x110mm	2536x160x110mm	2536x160x110mm	2536x160x110mm
Carton Size(mm)	2575x173x110mm	2575x173x110mm	2575x173x110mm	2575x173x110mm	2575x173x110mm	2575x173x110mm	2575x173x110mm
Qty/CTN(pcs)	1	1	1	1	1	1	1
